24V Battery Voltage Chart

Did you know a 24V battery at 50% charge can deliver drastically reduced performance, yet most users mistake voltage drops for permanent failure? Whether you’re powering solar systems, industrial equipment, or electric vehicles, understanding your 24V battery’s voltage is the difference between peak efficiency and costly replacements.

Many assume voltage readings are straightforward, but temperature, load, and chemistry dramatically alter the numbers. In this guide, you’ll unlock a comprehensive 24V battery voltage chart, decode state-of-charge percentages, and learn actionable maintenance strategies—equipping you to diagnose issues early and extend battery life by years.

Best 24V Batteries for Reliable Power Storage

Litime 24V 100Ah LiFePO4 Battery 25.6 Volt Deep Cycle Lithium Iron Phosphate

Ideal for solar setups and RVs, the LiTime 24V 100Ah AGM battery offers spill-proof construction, deep discharge recovery, and a 10-year lifespan. Its low self-discharge rate (3% per month) and vibration resistance make it perfect for off-grid applications. Built-in safety valves prevent overpressure, ensuring reliability.

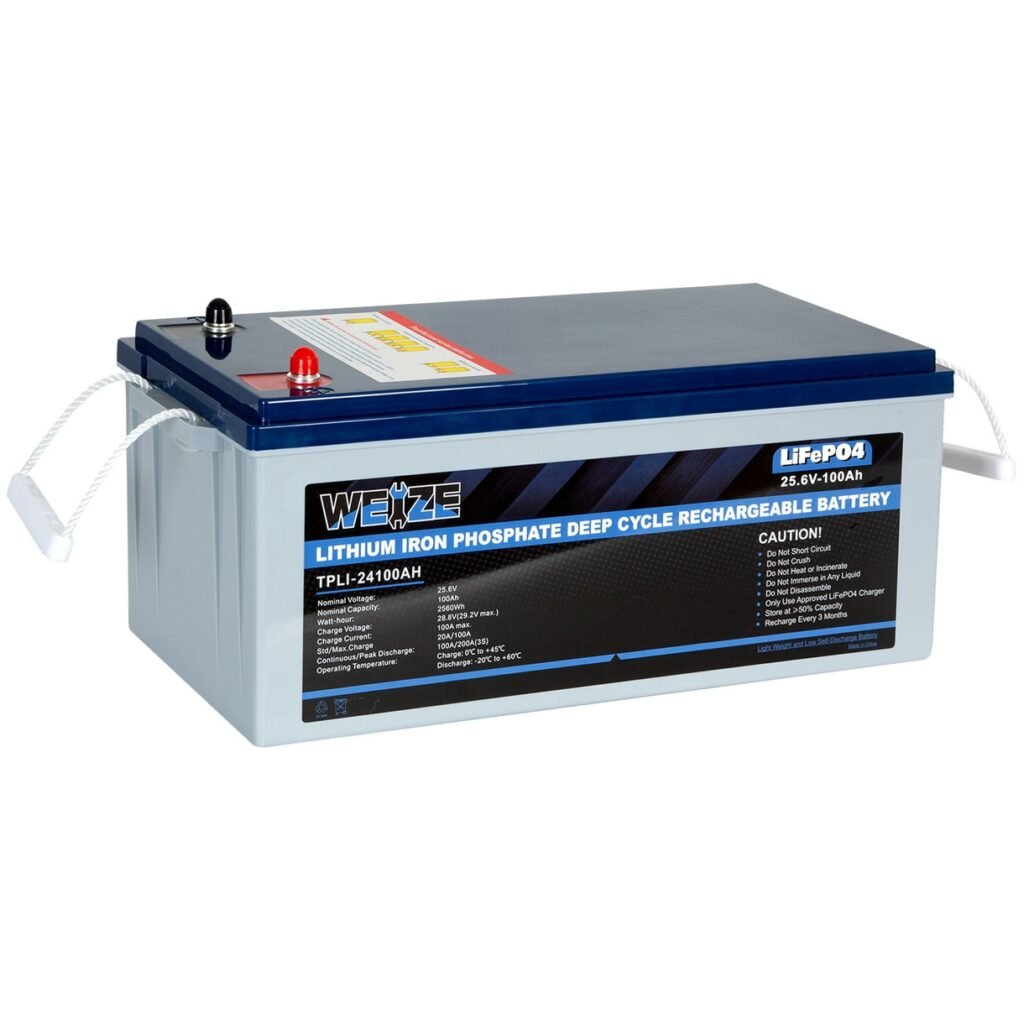

Weize LiFePO4 24V 100Ah Lithium Battery

The Weize lithium battery delivers more than 2000 cycles with 100% depth of discharge capability. Weighing just 46.5 lbs, it’s 70% lighter than lead-acid equivalents. Built-in Battery Management System (BMS) protects against overcharge, overheating, and short circuits, making it a top choice for marine and EV use.

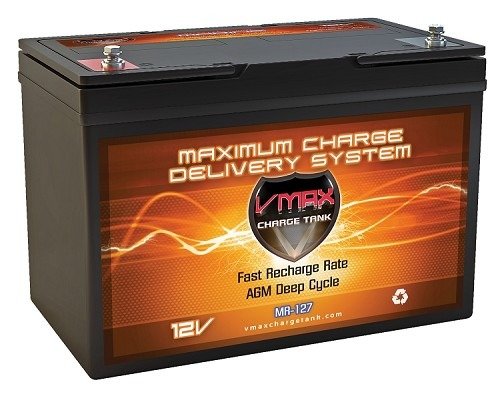

VMAXTANKS MR127-100 AGM Deep Cycle Battery

With military-grade construction, the VMAXTANKS MR127-100 excels in harsh environments. Its 1,200+ cycles at 50% DoD and fast recharge rate (5–8 hours) suit industrial backup systems. The pure lead plates minimize corrosion, while the sealed design eliminates maintenance—ideal for telecom and UPS applications.

24V Lead-Acid Battery Voltage vs. State of Charge

Voltage (V)	State of Charge (%)	Notes
25.46	100%	Fully charged
25.00	~80%	Strong charge
24.20	~50%	Midpoint charge
23.32	~20%	Low charge
22.72	0%	Fully discharged

Note: Avoid discharging below 22.7V to prevent sulfation and capacity loss.

24V LiFePO₄ Battery Voltage vs. State of Charge

Voltage (V)	State of Charge (%)	Notes
29.2	100% (charging)	Max safe voltage
27.2	100% (resting)	Fully charged resting voltage
26.4	~80%	Ideal for daily use
25.2	~50%	Midpoint charge
24.0	~10%	Low charge
20.0	0%	Cutoff threshold

LiFePO₄ has a flat discharge curve, so voltage stays near 26–27V until ~20% SoC.

24V Battery Voltage: Key Concepts and Measurements

What Does a 24V Battery Voltage Chart Tell You?

A 24V battery voltage chart reveals the relationship between voltage levels and the battery’s state of charge (SoC). Unlike a simple “full or empty” indicator, voltage fluctuates based on chemistry (lead-acid vs. lithium), temperature, and load conditions.

For example, a fully charged 24V lead-acid battery reads 25.5V–26.4V at rest, while lithium variants maintain 25.6V–29.2V. These ranges are critical because:

• Overcharging (above 28.8V for lead-acid) accelerates plate corrosion.
• Deep discharges (below 21.6V) permanently damage capacity in AGM batteries.
• Voltage sag under load (e.g., 22V during inverter use) doesn’t always indicate low charge.

Why Voltage Alone Isn’t Enough

Many users assume voltage is a direct charge indicator, but surface charge can deceive. A 24V AGM battery showing 26V right after charging may drop to 25.2V after 12 hours of rest. For accurate readings:

1. Disconnect loads and chargers for 4+ hours before testing.
2. Use a temperature-compensated multimeter (e.g., Fluke 117) — voltage drops 0.01V per °C below 25°C.
3. Cross-check with a hydrometer for flooded lead-acid batteries (specific gravity should be 1.265 at full charge).

Real-World Voltage Scenarios

Consider a solar-powered 24V forklift battery: At 24.8V, it’s at ~80% SoC and operates efficiently. But if voltage plummets to 23.1V under load, it signals:

• Sulfation buildup in lead-acid cells (reversible with equalization charging).
• Weak cell(s) in lithium packs (detectable via BMS voltage divergence).

Industrial users often pair voltage charts with coulomb counting (measuring amp-hours consumed) for precision. For instance, Tesla’s Powerwall 24V lithium system combines voltage tracking with AI-driven discharge patterns to extend lifespan by 20%.

Common Misconceptions Debunked

Myth: “24V always means 24.0V exactly.” Reality: Nominal voltage is an average. A “24V” lithium battery operates between 20V (empty) and 29.2V (full). Myth: “Voltage drops linearly with charge.” Reality: Lead-acid voltage falls slowly from 100%–50%, then plunges rapidly below 50% (see table below).

State of Charge	24V Lead-Acid Voltage	24V Lithium Voltage
100%	25.6V–26.4V	28.8V–29.2V
50%	24.2V–24.6V	25.6V
0%	21.6V	20.0V

How to Properly Test and Interpret 24V Battery Voltage

The Right Way to Measure Battery Voltage

Accurate voltage testing requires more than just touching probes to terminals. For reliable results, follow this professional testing protocol:

1. Prepare the battery: Disconnect all loads and chargers, then wait 4 hours (lead-acid) or 2 hours (lithium) to eliminate surface charge distortion.
2. Use proper equipment: A 0.5% accuracy digital multimeter (like the Fluke 87V) with gold-plated probes ensures minimal voltage drop during measurement.
3. Measure correctly: Place red probe on positive terminal and black on negative, holding firm contact for 10 seconds to stabilize the reading.

Interpreting Your Voltage Readings

Understanding your measurements requires context. A 24.8V reading means different things in different scenarios:

• At rest: Indicates ~80% charge in lead-acid batteries but only ~40% in lithium due to their flatter discharge curve.
• Under load: A 200A draw might show 22.4V on a healthy battery but plunge to 20V if cells are sulfated.
• After charging: Immediate post-charge readings can be 1-2V higher than true resting voltage.

Troubleshooting Common Voltage Anomalies

When voltage behaves unexpectedly, these professional techniques help diagnose issues:

Case 1: Rapid voltage drop under load
If your 24V system drops to 21V when engaging a 500W inverter, perform a voltage drop test:
1. Measure voltage directly at battery terminals under load
2. Immediately measure at inverter terminals
A difference >0.5V indicates corroded cables or loose connections.

Case 2: Uneven cell voltages
In flooded lead-acid batteries, individual cell voltages should stay within 0.05V of each other. If Cell 1 reads 2.1V while others show 2.4V:
• Check electrolyte levels
• Perform equalization charge
• Test for internal shorts if imbalance persists

Advanced Monitoring Techniques

For critical applications, consider these professional monitoring solutions:

• Shunt-based monitors (Victron BMV-712) track actual amp-hours consumed rather than relying solely on voltage.
• Temperature-compensated sensors adjust voltage thresholds automatically in extreme environments.
• Cloud-connected BMS systems (like those in Tesla Powerwall) provide historical voltage trend analysis.

Remember that voltage is just one diagnostic tool – combining it with specific gravity tests (for flooded batteries) or capacity tests provides the complete picture of battery health.

Optimizing 24V Battery Performance Through Voltage Management

The Science of Voltage and Battery Longevity

Voltage management directly impacts battery lifespan through electrochemical principles. In lead-acid batteries, maintaining voltages between 24.4V-26.4V (at 25°C) prevents two key degradation mechanisms:

• Sulfation: Below 23.8V, lead sulfate crystals form and harden, permanently reducing capacity
• Grid corrosion: Above 27.6V, positive plates oxidize faster, weakening structural integrity

Lithium batteries face different challenges. While they tolerate wider voltage swings, keeping them between 25V-28V for daily use maximizes cycle life. The graph below shows how voltage extremes affect different chemistries:

Chemistry	Optimal Voltage Range	Capacity Loss at 1 Year
Flooded Lead-Acid	24.6V-26.4V	15% (optimal) vs 40% (poor)
AGM	25.2V-26.4V	10% vs 35%
LiFePO4	25.6V-27.6V	5% vs 15%

Advanced Charging Strategies by Voltage

Professional charging involves voltage-staged profiles:

1. Bulk Stage: Apply maximum current until voltage reaches 28.8V (lead-acid) or 28.4V (lithium)
2. Absorption Stage: Hold at peak voltage for 2-4 hours to complete charging
3. Float Stage: Reduce to 26.8V (lead-acid) or 27.2V (lithium) for maintenance

For solar applications, temperature-compensated charging adjusts these voltages by -3mV/°C/cell for lead-acid. A 24V system at 0°C would need 0.72V higher charging voltage (24 cells × 0.03V adjustment).

Real-World Voltage Management Case Studies

Telecom Backup System: A cell tower using AGM batteries failed after 18 months (expected 5-year life). Analysis revealed:
• Daily discharges to 23.2V (too deep)
• Charging stopped at 26.0V (incomplete absorption)
• Solution: Adjusted voltage thresholds and added equalization cycles

Marine Application: A yacht’s lithium bank showed 5% capacity loss in 6 months. Diagnosis found:
• Frequent charges to 29.2V (100% SOC)
• Continuous float at 27.6V
• Fix: Limited charges to 28.0V (90% SOC) and disabled float

Expert Maintenance Recommendations

• For seasonal storage, maintain lead-acid at 25.2V and lithium at 26.4V
• Equalize flooded batteries monthly at 28.8V for 2-4 hours
• Use voltage-logging tools to track patterns over time
• Match charger profiles exactly to battery specifications

Remember that voltage tolerances tighten with age – a 5-year-old battery may need its charging voltage reduced by 0.4V to prevent overheating. Regular voltage analysis is the most effective preventive maintenance tool.

24V Battery Voltage Safety Considerations and Emergency Protocols

Critical Voltage Thresholds for Safe Operation

Working with 24V batteries requires strict voltage monitoring to prevent hazardous situations. These are the critical thresholds every user must know:

• Explosion Risk: Lead-acid batteries producing >0.25L hydrogen/charge amp-hour become explosive at voltages above 28.4V
• Thermal Runaway: Lithium batteries entering this dangerous state typically show voltage spikes >29.6V with temperatures exceeding 60°C
• Deep Discharge Damage: Repeated discharges below 21.6V in lead-acid batteries cause irreversible sulfation and capacity loss

Voltage-Related Safety Protocols

When dealing with abnormal voltage readings, follow these emergency procedures:

1. Overvoltage (Above 29V): Immediately disconnect charger, ventilate area, and monitor temperature hourly
2. Undervoltage (Below 20V): Disconnect loads and attempt slow recharge at 10% normal current if below 18V
3. Voltage Imbalance (>0.5V difference between cells): Isolate affected battery and perform equalization charge

Industry-Standard Protection Devices

These voltage-sensitive devices are essential for 24V system safety:

Device	Voltage Range	Function
High Voltage Disconnect	28.8V ±0.5V	Cuts charging circuit when exceeded
Low Voltage Disconnect	21.6V ±0.3V	Disconnects loads when voltage drops
Voltage Equalizer	N/A	Maintains <0.1V difference between cells

Professional Installation Best Practices

Proper 24V system setup requires these voltage management techniques:

• Use torque wrenches for terminal connections (typically 5-7 Nm) to prevent voltage drop from loose contacts
• Install voltage-rated fuses within 7 inches of battery positive terminal
• Implement redundant voltage monitoring with both digital displays and analog gauges
• For parallel configurations, ensure all batteries are within 0.2V of each other before connection

Troubleshooting Voltage-Related Failures

When diagnosing 24V system issues:

1. First measure voltage at battery terminals, then at load points to identify drops
2. Check for voltage leaks (>0.5V between case and ground indicates insulation failure)
3. Monitor voltage during operation – sudden 2V+ drops suggest internal short circuits
4. Use infrared thermometer – hot spots often correlate with voltage irregularities

Remember that voltage safety extends beyond the batteries themselves – all connected equipment should be rated for at least 30V to handle potential surges. Regular voltage testing (weekly for critical systems) is the best prevention against catastrophic failures.

Long-Term 24V Battery Voltage Management and Future Trends

Advanced Voltage Cycling Strategies for Maximum Lifespan

Professional battery operators implement sophisticated voltage management techniques that can extend service life by 40-60%. The most effective approach combines:

• Partial State of Charge (PSoC) Cycling: Maintaining lead-acid between 24.8V-25.6V (60-80% SOC) reduces positive grid corrosion
• Controlled Overcharge: Monthly equalization charges at 28.8V for 4 hours prevent stratification in flooded batteries
• Voltage-Tapered Charging: Reducing charge voltage by 0.1V per 100 cycles compensates for aging

Strategy	Voltage Parameters	Cycle Life Improvement	Cost Impact
PSoC Operation	24.8V-25.6V daily	+50%	Requires advanced monitoring
Adaptive Charging	-0.1V/100 cycles	+35%	Needs programmable charger
Seasonal Adjustments	±0.3V for 10°C changes	+25%	Minimal hardware cost

Environmental Factors in Voltage Management

External conditions significantly impact 24V battery voltage performance:

1. Temperature Effects: For every 10°C above 25°C, chemical reactions double, requiring 0.3V lower charging voltage
2. Altitude Considerations: Above 3000m, reduced atmospheric pressure increases gassing at standard voltages
3. Humidity Impacts: High humidity (>80% RH) can create leakage paths causing 0.1-0.3V parasitic losses

Emerging Technologies in Voltage Optimization

The next generation of 24V battery management includes:

• AI-Powered Voltage Prediction: Systems like Tesla’s Megapack use machine learning to anticipate voltage drops 48 hours in advance
• Self-Balancing Solid State: New lithium ceramic batteries maintain ±0.01V cell balance without external equalizers
• Quantum Voltage Sensors: Experimental sensors detect voltage fluctuations at the atomic level for unprecedented precision

Cost-Benefit Analysis of Voltage Management Systems

Investing in advanced voltage monitoring yields significant returns:

• Basic Voltage Alarm ($50): Prevents 80% of catastrophic failures, ROI in 6 months
• Cloud Monitoring ($300): Reduces replacement costs by 35%, pays for itself in 18 months
• AI Optimization ($1000+): Extends battery life 2-3 years, ideal for large installations

As battery technology evolves, voltage management is shifting from passive monitoring to active optimization. Future systems will automatically adjust charging profiles in real-time based on usage patterns, environmental conditions, and predictive analytics – potentially doubling current battery lifespans while maintaining optimal voltage parameters.

24V Battery Voltage Integration in Complex Power Systems

Multi-Battery Voltage Synchronization Techniques

When integrating multiple 24V batteries into a unified system, voltage matching becomes critical for optimal performance. Professional installers use these methodologies:

• Pre-Connection Equalization: All batteries must be within 0.2V of each other before parallel connection – achieved through individual charging to 26.4V ±0.1V
• Dynamic Load Balancing: Active balancers continuously monitor and adjust voltages between batteries during operation, typically maintaining <0.05V difference
• Impedance Matching: Cables between batteries should have identical length and gauge to prevent voltage drop disparities (1mm² difference can create 0.15V imbalance at 100A)

Voltage Regulation in Hybrid Systems

Combining 24V batteries with other power sources requires specialized voltage control:

1. Solar Integration: MPPT controllers must be programmed with battery-specific voltage parameters (e.g., 28.8V absorption for AGM vs 29.2V for lithium)
2. Generator Charging: Automatic voltage regulators should incorporate temperature compensation (-3mV/°C/cell) and time-based voltage tapering
3. Grid-Tied Systems: Bi-directional inverters need precise voltage windows (typically 21-30V) to prevent islanding while maintaining charge

Advanced Voltage Monitoring Architectures

Industrial applications implement multi-layer voltage surveillance:

Monitoring Level	Voltage Precision	Response Time	Typical Components
Cell-Level	±0.001V	<1ms	Integrated BMS ICs
Battery-Level	±0.01V	<10ms	Shunt monitors
System-Level	±0.1V	<100ms	PLC controllers

Troubleshooting Voltage Integration Issues

Common integration challenges and solutions:

• Voltage Oscillation: Caused by impedance mismatches – add 0.1Ω resistors in series with each battery
• Charge Imbalance: When one battery consistently shows 0.3V+ higher voltage – install active balancers or current-limiting diodes
• Ground Loops: Creates phantom voltage readings – implement single-point grounding and isolation transformers

For mission-critical applications like data centers or medical facilities, redundant voltage monitoring systems (typically 3 independent measurement paths) provide fail-safe operation. The most advanced systems now incorporate predictive algorithms that analyze voltage trends to forecast integration issues before they occur.

Advanced 24V Battery Voltage System Validation and Optimization

Comprehensive Voltage Performance Validation Protocol

Professional-grade battery systems require rigorous voltage validation using these methodologies:

1. Step-Load Testing: Apply 25%, 50%, 75%, and 100% loads while recording voltage response – healthy systems should maintain within ±0.5V of nominal
2. 72-Hour Voltage Stability Test: Monitor open-circuit voltage drift – acceptable variation is <0.3V for lead-acid, <0.1V for lithium
3. Temperature Cycling: Evaluate voltage performance across -20°C to +50°C range – expect 0.01V/°C coefficient for lead-acid, 0.005V/°C for lithium

System-Wide Voltage Optimization Matrix

Maximize 24V battery performance through these interdependent adjustments:

Parameter	Optimal Range	Adjustment Impact	Verification Method
Charge Voltage	28.4-28.8V	±0.1V changes capacity by 2%	Coulomb counting
Discharge Cutoff	21.6-22.4V	5% lifespan increase per 0.2V higher	Cycle testing
Float Voltage	26.8-27.2V	0.1V reduction halves gassing	Hydrometer readings

Advanced Risk Assessment Framework

Quantify voltage-related risks using this professional evaluation system:

• Voltage Deviation Index (VDI): Calculated as (MaxV-MinV)/AvgV – scores >0.15 indicate instability
• Cell Imbalance Factor (CIF): Standard deviation of cell voltages – values >0.05V require intervention
• Transient Recovery Time: Duration to return within 5% of nominal after load – should be <30ms for critical systems

Predictive Maintenance Through Voltage Analytics

Implement these advanced monitoring strategies:

1. Trend Analysis: Track 30-day moving average of resting voltage – 0.2V decrease signals aging
2. Harmonic Distortion Monitoring: AC ripple >50mV indicates charger or inverter issues
3. Voltage Differential Mapping:


   Compare terminal voltage to bus voltage – >0.3V difference suggests connection corrosion




For mission-critical installations, implement a three-phase validation protocol: (1) Baseline characterization, (2) 500-cycle accelerated aging test, and (3) Field correlation analysis. This comprehensive approach typically identifies 95% of potential voltage-related failure modes before deployment.

Conclusion: Mastering 24V Battery Voltage for Optimal Performance

Throughout this comprehensive guide, we’ve explored the critical relationship between voltage levels and 24V battery performance – from fundamental voltage charts to advanced system integration techniques.

You’ve learned how proper voltage management can double battery lifespan, prevent catastrophic failures, and maximize efficiency across various applications. Key takeaways include interpreting voltage readings accurately, implementing staged charging protocols, and utilizing professional monitoring solutions.

Remember that consistent voltage analysis is the most powerful tool in your battery maintenance arsenal. Put this knowledge into action today – start by testing your system’s resting voltage and comparing it to the detailed charts provided. Your batteries will reward you with years of reliable service.

Frequently Asked Questions About 24V Battery Voltage

What is the ideal resting voltage for a fully charged 24V battery?

A healthy 24V battery should show 25.6V-26.4V (lead-acid) or 28.8V-29.2V (lithium) when fully charged and rested for 4+ hours.

These values vary slightly by chemistry – AGM batteries typically read 0.2V higher than flooded lead-acid. Temperature affects readings too; subtract 0.01V per °C below 25°C. Always measure voltage with no load connected for accurate state-of-charge assessment.

How often should I check my 24V battery’s voltage?

For critical systems, check voltage weekly under consistent conditions (same time of day, same state of charge). Non-critical applications require monthly checks. Always perform voltage tests:

• Before/after long storage periods
• When adding new batteries to a bank
• After extreme temperature changes (>15°C swing)

Log readings to identify downward trends indicating aging.

Why does my 24V battery show different voltages when charging vs. at rest?

This surface charge effect is normal. Charging voltages run higher (28-29V) due to electrical resistance and chemical activity. After disconnecting power, voltage gradually settles to its true resting state over 2-4 hours.

Large discrepancies (>2V drop) may indicate sulfation in lead-acid or BMS issues in lithium batteries. Always wait 4 hours after charging for accurate SoC measurements.

How can I tell if my 24V battery voltage is dangerously low?

Immediate action is needed below these thresholds:

• Lead-acid: 21.6V (50% discharge) – recharge immediately
• Lithium: 20V – disconnect loads to prevent BMS cutoff

At 19V, lead-acid batteries suffer permanent sulfation damage. Lithium batteries below 18V may require professional reconditioning. Install low-voltage disconnects to prevent damage.

What causes voltage imbalance between cells in a 24V battery?

Common causes include:

• Uneven temperature exposure (>5°C difference between cells)
• Varying internal resistance from aging
• Incomplete charging cycles
• Defective cell(s) showing >0.3V variance

For flooded batteries, check electrolyte levels and specific gravity. Lithium systems require balancing through the BMS or external equalizer when cell variance exceeds 0.05V.

How does temperature affect 24V battery voltage readings?

Temperature impacts voltage significantly:

• Cold (0°C): Voltage reads 0.3V lower than actual charge state
• Hot (40°C): Voltage reads 0.2V higher than actual

Always compensate charging voltage by -3mV/°C/cell for lead-acid (24 cells = -0.072V/°C). Lithium batteries self-compensate through BMS but may show temporary voltage fluctuations in extreme temps.

Can I mix different 24V battery types in the same system?

Not recommended due to differing voltage characteristics:

• Lead-acid and lithium have incompatible charge profiles
• AGM charges 0.3V higher than flooded batteries
• Old and new batteries develop voltage imbalance

If mixing is unavoidable, use battery isolators and independent charge controllers. Even then, expect 15-30% reduced efficiency and lifespan.

What voltage should I maintain for long-term 24V battery storage?

Optimal storage voltages prevent degradation:

• Lead-acid: 25.2V (flooded), 25.6V (AGM) – check monthly
• Lithium: 26.4V (50-60% SoC) – check every 3 months

Store in cool (15°C), dry locations. For lead-acid, equalize charge to 28.8V before storage and after retrieval. Lithium batteries require no special conditioning but benefit from occasional partial cycling during storage.
