Yes, a bad battery can cause low voltage in your alternator. This happens because a weak or failing battery puts extra strain on the alternator, forcing it to overcompensate in trying to maintain proper voltage levels. Over time, this stress can lead to diminished alternator performance or premature failure.
Imagine this: you’re driving, and your headlights begin to dim, or your dashboard lights flicker. You might instantly suspect the alternator—but in many cases, it’s the battery silently failing in the background, creating a chain reaction. People often overlook the battery because it’s a relatively passive component. However, when it’s no longer able to hold a proper charge, it drags the entire charging system down with it.
Best Batteries for Resolving Alternator Voltage Issues
If your alternator is showing low voltage due to a failing battery, replacing it with a high-quality option is key. Here are three top-rated batteries that not only resolve low voltage issues but also enhance the overall reliability of your vehicle’s electrical system:

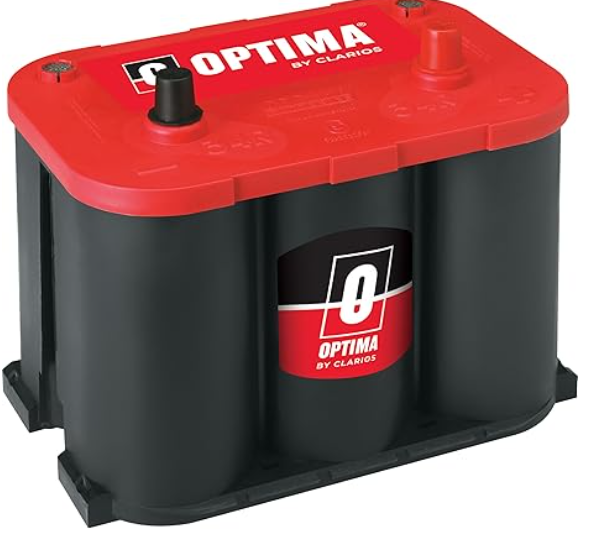

Optima RedTop Starting Battery (Group 34/78)
This battery delivers strong cranking power even in bad weather. It’s ideal for vehicles with regular power demands and offers long-lasting performance.

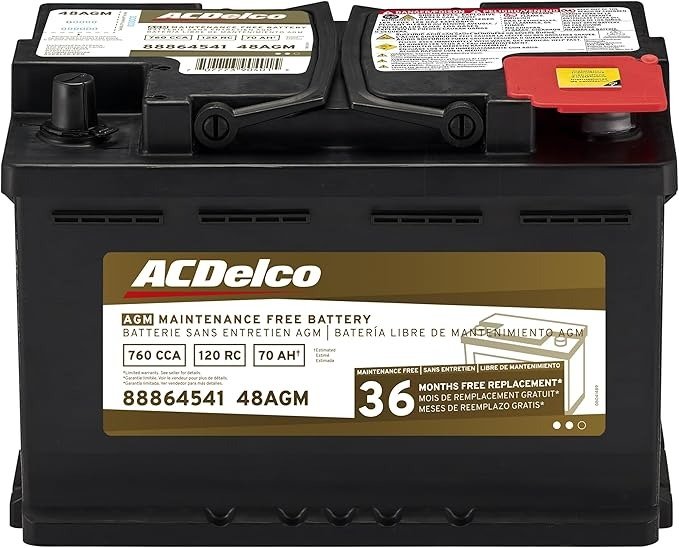

ACDelco Gold 48AGM Battery (Group 48)
Built with Absorbed Glass Mat (AGM) technology, it offers excellent charge acceptance and leak-proof durability, making it perfect for modern vehicles with higher electrical needs.

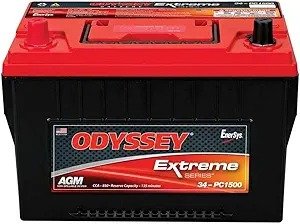

Odyssey Extreme Series Battery (Group 34R-PC1500)
Known for its high reserve capacity and fast recharge rate, the Odyssey Extreme is perfect for vehicles that demand a lot of power, offering deep cycling and long service life.
How Exactly Does a Bad Battery Cause Low Alternator Voltage?
A bad battery directly impacts the performance of your vehicle’s alternator—often causing it to display low voltage readings. Here’s how that relationship works in practice.
The Battery–Alternator Partnership
Your car’s electrical system is a team effort. The battery provides power to start the engine, while the alternator takes over once the engine is running—keeping everything powered and recharging the battery. If the battery becomes weak or damaged, it disrupts this cycle.
- A battery with internal resistance or sulfated plates will demand more current from the alternator.
- The alternator tries to push more voltage to charge it, but if the battery doesn’t accept the charge properly, the system voltage drops.
- You may notice dimming lights, flickering gauges, or slow cranking—all symptoms tied to a voltage drop.
Increased Alternator Load
When a failing battery can’t hold a charge:
- The alternator runs longer and harder to compensate.
- This constant strain can reduce alternator efficiency and lower voltage output.
- Prolonged strain may even cause alternator overheating or wear down its diodes and voltage regulator.
Voltage Feedback Loop
An alternator is regulated based on the battery’s voltage level. A bad battery provides erratic voltage feedback, causing:
- The voltage regulator to send incorrect signals.
- Alternator output to fluctuate, often falling below the ideal 13.5–14.8 volts range.
Quick Signs Your Battery Is Affecting Alternator Voltage:
- Alternator output reads below 13 volts at idle.
- Lights dim when engine RPM drops.
- Battery warning light flickers.
What Are the Signs That It’s the Battery and Not the Alternator?
It can be tricky to tell whether your vehicle’s electrical issues stem from the battery or the alternator. But recognizing the right signs can save you time, money, and misdiagnosis. Here are the key symptoms that point specifically to a bad battery rather than a failing alternator.
Your Car Struggles to Start—but Runs Fine Once It’s On
If your engine cranks slowly or requires multiple attempts to start, yet runs smoothly once it’s on, your battery is likely the problem. The alternator isn’t needed to start the engine—that’s the battery’s job.
- A failing battery can’t deliver enough cold cranking amps (CCA).
- But once the alternator kicks in, it powers the engine and accessories, making the car seem “normal” again.
You Hear Clicking Sounds When Turning the Key
A repetitive clicking sound—without engine turnover—is a classic sign of a battery that’s too weak to engage the starter motor.
- The alternator isn’t to blame in this case.
- The click means the starter is receiving some voltage, but not enough to crank the engine.
Dashboard Warning Lights Flicker at Startup
If your dashboard lights dim, flicker, or flash rapidly only during ignition but stabilize while driving, this suggests inconsistent voltage from the battery.
You’ve Recently Jump-Started Your Car—More Than Once
Needing a jump-start more than once in a short period points strongly to a battery that’s no longer holding charge.
Quick Battery-Specific Clues:
- Low resting voltage (below 12.4V with the engine off).
- Corroded terminals or swollen battery case.
- Battery is older than 3–5 years.
Can a Bad Battery Damage the Alternator Over Time?
Yes, a bad battery can absolutely damage your alternator over time—and in ways that many drivers overlook until it’s too late. While they’re designed to work together, when one fails, the other often pays the price.
Overworking the Alternator
When a battery can’t hold a charge, the alternator must compensate by running longer and harder. Instead of simply maintaining charge, it becomes the primary power source for:
- Ignition systems
- Electronic accessories
- Lighting and climate control
This constant overwork strains internal components like the bearings, voltage regulator, and diodes.
Heat Buildup and Electrical Stress
An alternator that’s consistently under load generates excessive heat. Combined with voltage fluctuations from a weak battery, this can:
- Degrade insulation on internal windings
- Burn out voltage regulators
- Lead to diode failure
Once the diodes are compromised, the alternator can’t convert AC to DC efficiently—leading to more voltage instability.
Reduced Lifespan and Expensive Repairs
A healthy alternator can last 7–10 years, but when paired with a bad battery:
- Lifespan may shrink to just a few years
- You may experience repeated alternator failure even after replacing it—if the battery isn’t replaced too
Warning Signs Your Alternator Is Being Damaged:
- A whining or grinding noise from the engine bay
- Burning rubber smell (from belt strain)
- Rapid battery drain even after replacement
Bottom line: Always test or replace your battery before installing a new alternator. It’s cheaper to fix the root cause than to burn through multiple alternators.
How Can You Tell If the Battery or Alternator Is Causing the Low Voltage?
Pinpointing the source of low voltage is crucial for solving electrical issues correctly. You can determine whether the battery or alternator is at fault through a combination of visual inspection, basic tests, and diagnostic tools.
Start with a Visual Inspection
Look for the obvious first:
- Battery: Check for corrosion on terminals, bloated casing, or visible leakage.
- Alternator: Inspect the belt for fraying or looseness and listen for whining or grinding noises.
If everything looks normal, move on to testing.
Use a Multimeter: Step-by-Step Diagnosis
A multimeter is your best friend when checking voltage levels. Here’s how to use it:
Test the Battery First:
- Turn off the engine.
- Set the multimeter to DC volts.
- Connect the red probe to the positive terminal and the black to the negative.
- A healthy battery should read 12.4V to 12.7V.
If it’s lower, the battery may be the issue.
Test the Alternator Output:
- Start the engine and let it idle.
- Repeat the multimeter test.
- A healthy alternator should output 13.5V to 14.8V.
If it’s under 13V, your alternator may be underperforming—or the battery is dragging it down.
Load Testing
- Many auto parts stores offer free battery and alternator load testing.
- These tools simulate real driving loads and give clear pass/fail results.
Battery Swap Trick
If you have access to a known-good battery:
- Swap it temporarily into your vehicle.
- If the alternator voltage returns to normal, your old battery was the cause.
What Should You Do If Both the Battery and Alternator Are Failing?
If both your battery and alternator are failing, you need to replace them together to prevent a cycle of repeated failures and costly repairs. Replacing just one can put strain on the new part and lead to premature failure again.
Replace the Battery First (If It’s Completely Dead)
A severely discharged or swollen battery must be replaced immediately:
- A dead battery won’t allow accurate alternator testing.
- Running the vehicle with a dead battery can burn out the alternator.
If you’re unsure which to do first, start with the battery and then retest your alternator output.
Install a New Alternator After Battery Replacement
Once the battery is healthy, if your multimeter still shows low charging voltage (below 13.5V), then it’s time to replace the alternator. Signs of alternator failure include:
- Dimming lights even with a fresh battery
- Burning smell or whining noise
- Dashboard battery/charging warning light
Clean Terminals and Check Grounds
- Corroded terminals can cause resistance and low voltage symptoms.
- A bad ground strap can affect both battery charging and alternator performance.
Before installing new parts, clean all connections thoroughly.
Invest in Quality Parts
Low-quality parts often fail faster. Choose trusted brands like:
- Optima or Odyssey for batteries
- Bosch, Denso, or ACDelco for alternators
These may cost more upfront but save you from breakdowns and repeat repairs.
Final Tip:
After replacing both, recheck your charging voltage at idle and under load. Expect to see 13.8V to 14.4V if everything is working perfectly.
Conclusion
A bad battery doesn’t just struggle to start your car—it can drag your alternator down with it. Yes, a bad battery can absolutely cause low voltage in your alternator, leading to poor electrical performance and, eventually, alternator damage. Recognizing the signs early—like slow starts, flickering lights, or low multimeter readings—can help you catch the issue before it snowballs.
The best approach is simple: test your battery first, then your alternator. Replace any failing component with high-quality parts to restore full electrical health. And remember, if you only fix one, the other might just undo your repair.
Take control of your vehicle’s charging system now—don’t wait until you’re stranded on the side of the road.
Frequently Asked Questions About: Can a Bad Battery Cause Low Voltage in My Alternator?
Can a weak battery really affect the alternator’s voltage output?
Yes. A weak or faulty battery can drag down the alternator’s voltage output. The alternator may struggle to maintain proper voltage (typically 13.5V–14.8V) because the battery fails to accept or hold a charge properly. This can create a feedback loop that makes it appear like the alternator itself is failing, even when it’s still functional.
Will replacing just the battery fix the low voltage issue?
Sometimes, yes—but not always. If the alternator is still healthy, a fresh battery can resolve low voltage problems. However, if the alternator has already been damaged by overworking to charge a bad battery, you’ll need to replace both. Always test the alternator after installing a new battery.
How can I confirm if it’s the battery or the alternator causing the issue?
Use a multimeter:
- Battery test (engine off): 12.4V–12.7V
- Alternator test (engine on): 13.5V–14.8V
If the battery reads low while the alternator reads fine, it’s the battery. If both are low, both may be failing.
Can I drive with a bad battery if the alternator is still good?
Not for long. A bad battery forces the alternator to act as the primary power source. This can quickly wear out your alternator, leading to a breakdown. Always replace a failing battery promptly.
What long-term damage can a bad battery cause to the alternator?
It can lead to:
- Overheating
- Diode failure
- Worn-out bearings
- Burnt voltage regulator
Over time, this reduces your alternator’s lifespan and performance.
