D Cell Battery Voltage Chart

A fully charged D cell battery typically outputs 1.5 volts, while anything below 1.0 volts usually indicates it’s nearing the end of its useful life.

Have you ever grabbed a flashlight or toy that uses D batteries, only to find it dim or completely dead—and wondered if the battery was the problem? Understanding D cell battery voltage is the key to avoiding these frustrations. This guide gives you a detailed voltage chart and shows you exactly what those numbers mean in real-world usage.

D batteries power everything from emergency devices to kids’ toys and even medical equipment. Knowing how much voltage is “good” can help you get the most out of every battery—and avoid unnecessary replacements.

Best D Batteries for Voltage Reliability

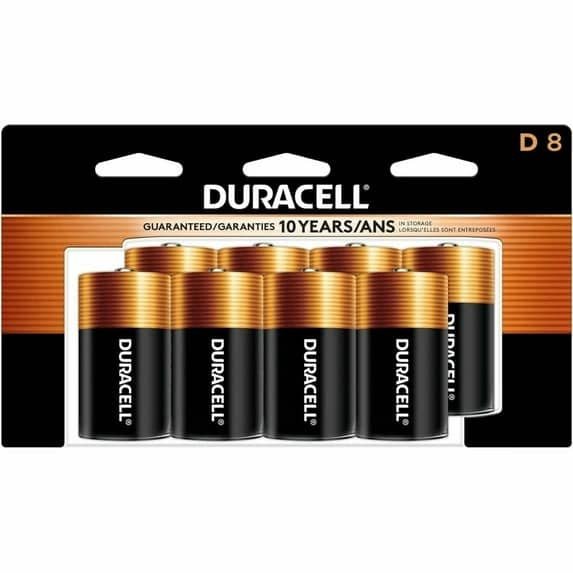

Duracell Coppertop D Batteries (8‑count)

Renowned for their long-lasting power and leak protection, these D cells hold a charge for up to 10 years thanks to Duralock technology—perfect for emergency kits and high-drain devices.

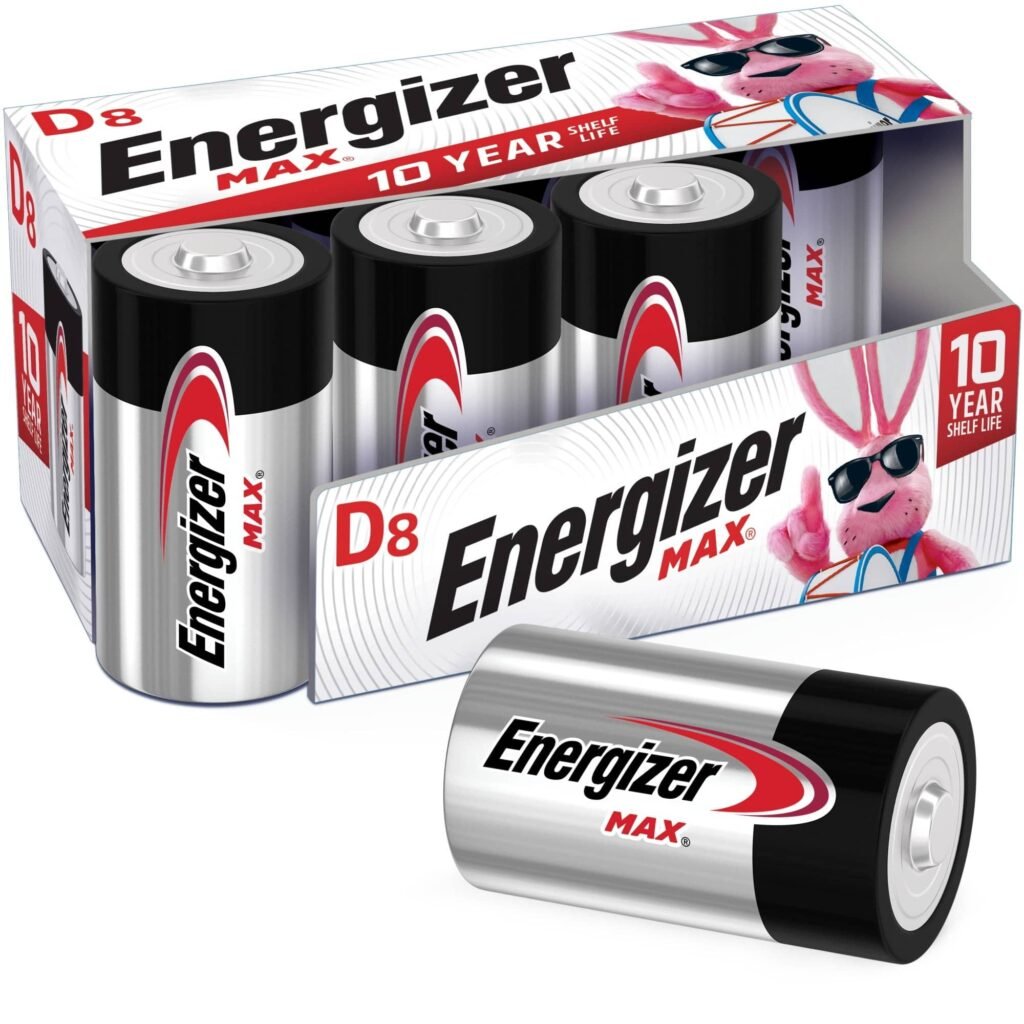

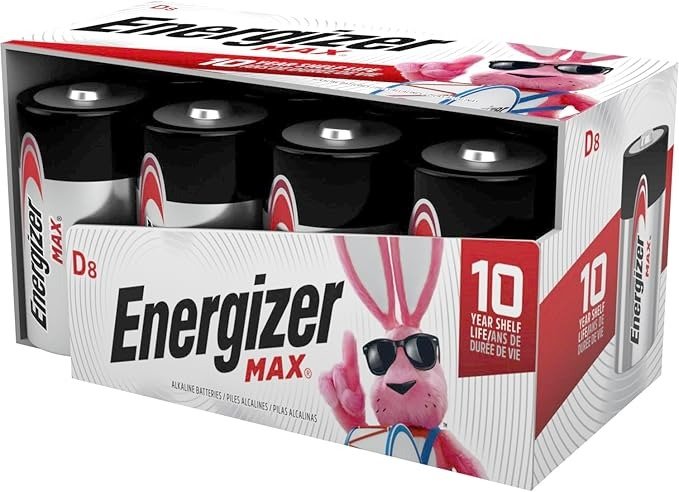

Energizer MAX D Batteries (8‑pack)

With PowerSeal technology and a 10‑year shelf life, these D batteries deliver consistent performance in flashlights, toys, and radios—built tough to resist leaks.

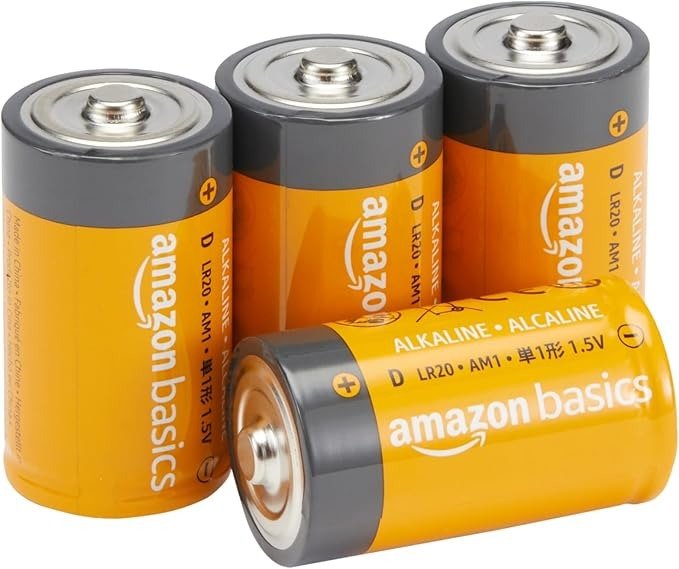

Amazon Basics D Cell Everyday Alkaline Batteries (4‑pack)

Affordable yet reliable, these D cells offer 1.5 V power with a 5‑year shelf life. Ideal for everyday household use and easy to buy.

What Do the Numbers on a D Battery Voltage Chart Really Mean?

Voltage readings can be confusing—especially when you don’t know whether a number like 1.2V is “good” or “bad.” The key is understanding what those values mean for different types of D batteries and how they affect device performance.

Below is a comprehensive D cell battery voltage chart, covering both alkaline and rechargeable types.

D Battery Voltage Chart

Battery Type	Voltage Range (V)	Battery Status	Performance Expectation
Alkaline (New)	1.5 – 1.6	Fresh	Maximum power; ideal for high-drain devices
Alkaline (Used)	1.3 – 1.4	Partially discharged	Still good; reduced performance in some uses
Alkaline (Low)	1.1 – 1.2	Near end of life	Likely to cause dimming or slow function
Alkaline (Dead)	≤ 1.0	Discharged	Replace immediately
Rechargeable NiMH	1.2 – 1.4 (fully charged)	Normal range	Stable output; excellent for frequent use
Rechargeable NiMH	< 1.0	Low	Recharge now
Rechargeable NiCd	1.2 (fully charged)	Normal	Similar to NiMH but with faster discharge
Rechargeable NiCd	< 1.0	Discharged	Needs immediate recharge
Lithium D Battery	1.6 – 1.7	Fully charged	Longest shelf life; premium performance
Lithium D Battery	≤ 1.2	Low	Still usable but nearing end

What Do These Numbers Actually Mean for You?

• 1.5V is ideal for new alkaline batteries – the sweet spot for performance.
• 1.3V still works, especially for low-drain devices like clocks or remotes.
• 1.0V or less means you’re running on fumes—don’t rely on it in critical tools like flashlights or radios.
• Rechargeables behave differently. Though they start at a lower voltage (1.2V), they maintain that output more steadily until the power drops quickly at the end.

What Is the Voltage of a D Cell Battery When New and When Used?

Knowing the expected voltage range of a D cell battery helps you decide whether a battery is still usable or needs replacement.

New alkaline D cell batteries typically have a voltage of 1.5 volts. This is the standard for most consumer electronics, including flashlights, toys, radios, and portable fans. Fresh lithium D batteries may start even slightly higher, around 1.6 volts, offering better performance in high-drain devices.

As the battery is used, voltage drops gradually. Here’s what you can expect:

• 1.5V – 1.6V: Fully charged or brand-new
• 1.3V – 1.4V: Slightly used, still strong
• 1.1V – 1.2V: Moderate wear; device may show reduced performance
• 1.0V or lower: Battery is near the end of its life or considered dead in many devices

Voltage of Rechargeable D Cells

Rechargeable NiMH or NiCd D batteries start at 1.2 volts, which is normal and safe for most modern electronics. Don’t be alarmed by the lower starting voltage; they are designed to deliver steady power throughout the discharge cycle.

Real-Life Example

Let’s say your flashlight seems dim. Testing the D battery shows 1.05 volts. That reading means the battery is still working, but not delivering full power—a sign that replacement is near.

Quick Tip

Use a multimeter to test voltage under no-load conditions. For best results, test under a load (like a small resistor) to simulate real use.

How Can You Accurately Test the Voltage of a D Battery at Home?

Testing your D cell battery at home is not only easy, but it helps you avoid wasting good batteries or relying on weak ones. Below are the most effective and accurate ways to test D battery voltage—each explained step by step.

Using a Digital Multimeter (Most Accurate)

What you need:

• Digital multimeter (set to DC Volts)
• The D battery you want to test

Steps:

1. Turn on the multimeter and set it to DC voltage (usually indicated by “V” with a straight line and dashed line beneath it).
2. Identify the battery terminals: The flat end is the negative (–), and the bump end is the positive (+).
3. Touch the probes: Place the red probe on the positive end, and the black probe on the negative end.
4. Read the display:
   • 1.5V to 1.6V → Fully charged
   • 1.3V to 1.4V → Still usable
   • 1.0V or below → Consider replacing

Tip: For even more accuracy, test under load by connecting a 10-ohm resistor between the terminals while measuring. This simulates actual usage conditions.

Using a Battery Tester

What you need:

• Universal battery tester (available on Amazon or hardware stores)

Steps:

1. Insert the D battery into the tester following the polarity markings.
2. The tester needle or screen will indicate power level—usually color-coded as Good, Low, or Replace.
3. Some testers give exact voltages. Compare with a standard D battery chart for interpretation.

This method is fast, tool-friendly, and doesn’t require electronics know-how.

Using a Flashlight or Battery-Operated Device

What you need:

• A known working device that uses D batteries (e.g., flashlight)

Steps:

1. Insert the D battery and power on the device.
2. If the light or motor is dim, flickers, or won’t turn on, the battery might be weak or dead.
3. Replace the battery with a new one and compare performance.

Note: This method is not scientific, but it helps confirm performance in real-world scenarios.

Measuring Battery Temperature After Use (Advanced Tip)

What you need:

• Infrared thermometer or digital temp gun

Steps:

1. Use the D battery in a device for 10–15 minutes.
2. Remove and immediately check the temperature.
3. A warmer-than-normal battery may indicate internal resistance, which suggests aging or low performance.

Be cautious. Overheating can also signal a defect—stop using the battery if it gets too hot.

How Long Does a D Battery Last Based on Its Voltage?

The lifespan of a D cell battery isn’t just about the brand—it depends heavily on starting voltage, battery chemistry, and how you use it. Understanding this can help you avoid waste and ensure reliability when you need it most.

General Lifespan Guidelines by Voltage Level

Voltage	Battery Type	Estimated Remaining Capacity	Typical Use Duration (Moderate Load)
1.6V	Alkaline	100%	120–150 hours in a flashlight
1.5V	Alkaline	~95%	Still very strong; high performance
1.3V	Alkaline	~70%	Slower devices start to show decline
1.1V	Alkaline	~30%	May still power remotes and clocks
1.0V	Alkaline	<10%	End of life; replace soon
1.2V	Rechargeable NiMH	~100%	Holds charge well, especially in high-drain use
1.0V	Rechargeable	~50%	Recharge recommended for stable performance
<0.9V	Any	0%–10%	Not reliable; mostly depleted

Real-World Examples

• In a portable fan:
  A D alkaline battery at 1.5V might run for 20–24 hours continuously. Once it drops below 1.2V, expect the speed to decline.
• In a flashlight:
  At 1.6V, light is at its brightest. By 1.2V, brightness noticeably fades. At 1.0V, it may flicker or shut off completely.
• In a toy:
  NiMH batteries at 1.2V provide consistent power longer than alkalines, even though the voltage starts lower.

Important Battery Life Tips

• Don’t wait until your battery hits 1.0V—especially if you’re using it in safety or emergency equipment.
• Always test in pairs or sets (if your device uses more than one D battery).
• Store batteries properly to avoid premature voltage loss.

Can You Recharge a D Cell Battery and How Does It Affect Voltage?

Yes, you can recharge D cell batteries—but only if they are specifically labeled as rechargeable. Attempting to recharge non-rechargeable (alkaline) D batteries can be dangerous and lead to battery leakage, explosion, or fire.

Rechargeable D Batteries: Types and Voltage Behavior

1. Nickel-Metal Hydride (NiMH)
   • Voltage (fully charged): ~1.2V to 1.4V
   • Voltage under load stays stable until it sharply drops at the end of the cycle.
   • Cycle life: 500–1000 charges
   • Pros: Reliable for high-drain devices
   • Cons: Self-discharges faster when stored
2. Nickel-Cadmium (NiCd)
   • Voltage (fully charged): ~1.2V
   • Handles deep discharges better than NiMH
   • Cycle life: Up to 1000 cycles
   • Pros: Durable in extreme temps
   • Cons: Lower capacity; contains toxic cadmium
3. Lithium-ion (less common in D form)
   • Voltage (fully charged): ~3.6V (needs matching device or voltage step-down)
   • Pros: High energy density
   • Cons: Expensive and must be used with care

How to Recharge a D Battery Properly

Step-by-step Procedure:

1. Check the label
   Ensure it clearly states “Rechargeable NiMH” or “Rechargeable NiCd.”
2. Use a compatible charger
   Look for one that supports D-size batteries and matches the battery chemistry.
3. Insert batteries correctly
   Align polarity (+ and – terminals). Use snug-fitting battery slots.
4. Charge time
   • NiMH: 6–10 hours
   • NiCd: 4–6 hours
   • Smart chargers will auto-stop to avoid overcharging
5. Monitor heat
   If batteries become too hot, unplug the charger immediately.

Never Recharge Alkaline D Batteries

Even though alkaline batteries sometimes show a small voltage boost after DIY recharging, they are not built for this and pose a serious safety risk. Recharging non-rechargeables can cause:

• Internal pressure buildup
• Leakage of corrosive material
• Battery rupture or fire

Final Thoughts on Rechargeable D Battery Voltage

• Rechargeables start lower (1.2V) but deliver consistent performance
• Their voltage drops fast at the end—don’t let them run flat
• Proper recharging practices maximize battery life and safety

Conclusion

The  D cell battery voltage chart isn’t just for engineers—it’s for anyone who uses battery-powered devices and wants to get the most out of them. Whether you’re testing for battery health, comparing brands, or wondering when it’s time to recharge or replace, voltage is your most reliable indicator.

We’ve covered how voltage correlates with battery health, explained the safest and most accurate ways to test it, and even provided a detailed chart to make quick decisions easier. If you’re using rechargeable D batteries, knowing how voltage changes throughout the charge cycle can help extend their life and improve performance.

In short, voltage is the heartbeat of your D cell battery—and now, you know how to read it.

Frequently Asked Questions About D Cell Battery Voltage Chart

What is the normal voltage of a new D cell battery?

A fresh alkaline D battery typically measures around 1.5 to 1.6 volts. Rechargeable NiMH D batteries, however, measure about 1.2 volts when fully charged. Despite this lower number, rechargeables are designed to maintain steady power throughout their cycle.

At what voltage is a D battery considered dead?

Once a D battery drops below 1.0 volts, it’s generally considered depleted. For devices with higher power demands, even 1.1–1.2 volts may not be sufficient to function properly. Testing regularly helps you avoid underperformance or unexpected shutdowns.

How do I test the voltage of a D battery at home?

You can use a digital multimeter:

• Set it to DC voltage
• Touch red probe to + terminal, black to – terminal
• Read the voltage displayed on the screen

A reading of 1.3V or higher for an alkaline battery means it’s still usable. For rechargeable ones, 1.2V or above is good.

Can I test a D battery without a multimeter?

Yes, you can:

• Try the bounce test (fresh batteries bounce less)
• Use a battery tester
• Insert it into a known working device and check performance

However, for accurate results, a multimeter is still best.

Do rechargeable D batteries have a different voltage range?

Yes. Rechargeable NiMH or NiCd D batteries have a nominal voltage of 1.2V, and they hold that voltage well during most of their usage. The voltage drops rapidly only near the end of their charge cycle.

Is higher voltage always better in D batteries?

Not necessarily. Some sensitive electronics are designed to operate on lower voltage (like 1.2V from NiMH). Using a 1.6V lithium battery could potentially damage low-voltage devices not designed for it.

How often should I check D battery voltage?

• For critical devices (flashlights, emergency gear): check monthly
• For everyday items: check every 2–3 months or when performance drops
• Always check before extended travel or storm season
