Electrical troubleshooting errors cost industrial facilities an average of $50,000 per hour in downtime. When you’re diagnosing complex motor drives or high-voltage systems, a basic multimeter simply won’t cut it.
The Fluke 87V is engineered for these exact scenarios, offering professional-grade accuracy and safety features that separate reliable diagnostics from costly guesswork.
Key Features at a Glance
- True RMS Accuracy: Precisely measures complex, non-sinusoidal waveforms common in modern electronics and motor drives.
- High Voltage Range: Measures up to 1000V AC and DC for industrial and heavy-duty applications.
- Peak Min/Max Capture: Records transient voltage spikes and dips that standard meters miss, crucial for intermittent faults.
- Low-Pass Filter: Isolates the fundamental frequency for accurate measurements on Variable Frequency Drives (VFDs) and motor drives.
- High-Resolution Display: 6,000-count digital display with analog bar graph for tracking trends and fluctuations.
- Superior Safety Rating: CAT III 1000V / CAT IV 600V certified for use on primary electrical distribution and industrial equipment.
- Complete Professional Kit: Includes TL75 test leads, AC175 alligator clips, and a temperature probe for thermocouple measurements.
- Robust Build Quality: Designed to withstand drops, moisture, and harsh industrial environments (meets MIL-PRF-28800F standards).
Fluke 87V Complete Specifications
| Category | Specification |
|---|---|
| Model Number | Fluke 87V |
| Product Type | Industrial Digital Multimeter (True RMS) |
| DC Voltage Range | 0.1mV to 1000V |
| AC Voltage Range (True RMS) | 0.1mV to 1000V |
| Display Resolution | 6,000 counts, high-resolution with analog bar graph |
| Special Functions | Peak Min/Max capture, Low-pass filter for VFDs |
| Safety Rating | CAT III 1000V, CAT IV 600V |
| Basic DC Accuracy | ±0.05% |
| Included Accessories | TL75 Test Leads, AC175 Alligator Clips, 80BK Temperature Probe, User Manual, 9V Battery |
| Warranty | 3-year warranty |
| Compliance | Meets MIL-PRF-28800F (ruggedized) standards |
Real-World Performance & Application
Based on its professional feature set and CAT III 1000V safety rating, the Fluke 87V is built for specific, demanding tasks:
| Application | Key Feature Utilized | Benefit |
|---|---|---|
| Troubleshooting VFDs & Motor Drives | Low-Pass Filter | Filters out electrical noise to read the true fundamental voltage and frequency. |
| Finding Intermittent Faults | Peak Min/Max Capture | Records transient spikes/sags that last as little as 1ms, capturing elusive problems. |
| Industrial Panel & Distribution Work | CAT III 1000V Rating | Provides verified protection against high-energy transients on fixed-installation circuits. |
| HVAC & Temperature Diagnostics | Included Temperature Probe | Measures temperature directly for motor bearings, heat sinks, or ambient air diagnostics. |
Pros & Cons
✅ What We Love
- True RMS Accuracy – Essential for correct readings on modern switch-mode power supplies, VFDs, and electronic ballasts where average-responding meters fail.
- CAT III 1000V Safety – The highest safety rating for a handheld meter in its class, providing critical protection for industrial electrical work.
- Low-Pass Filter Function – A game-changer for HVAC and industrial techs, allowing accurate voltage and frequency measurements on noisy motor drives.
- Peak Min/Max Capture – Logs transient events automatically, making it possible to diagnose intermittent problems that are otherwise impossible to catch.
- Complete Professional Kit – Includes high-quality TL75 leads, alligator clips, and a temperature probe, so you’re ready for any job out of the box.
- Legendary Durability – Built to military standards, it survives drops, moisture, and harsh conditions that would destroy lesser meters.
❌ What Could Be Better
- Price Point – As a premium industrial tool, the initial investment is significantly higher than basic hobbyist multimeters.
- Size & Weight – Its rugged, full-featured design makes it larger and heavier than compact “pocket” meters, though this contributes to its durability.
- Learning Curve – The advanced functions (like relative mode, filter, min/max) require reading the manual to use effectively, unlike simpler auto-ranging meters.

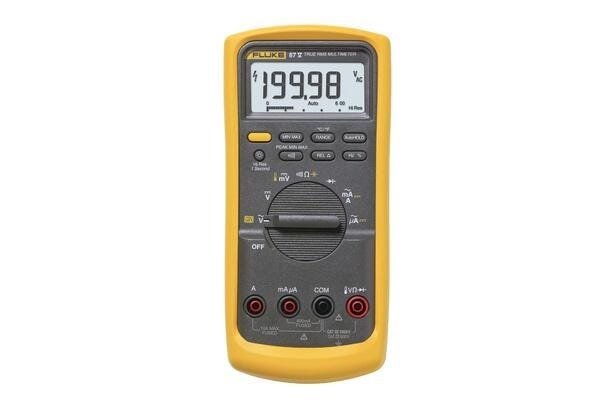

What Is the Fluke 87V Industrial Digital Multimeter?
The Fluke 87V is a True RMS professional digital multimeter engineered for advanced electrical troubleshooting. It is designed to measure up to 1000V AC/DC and excels in complex industrial environments where standard meters fail. Its primary use case is diagnosing issues with variable frequency drives (VFDs), motor controls, and other systems with non-linear electrical signals.
Fluke is the industry benchmark for professional test equipment, trusted by electricians and technicians worldwide. The 87V model represents their flagship industrial multimeter, sitting at the top of their troubleshooting lineup. It is built for professionals who cannot afford measurement errors or safety compromises.
This specific multimeter is differentiated by its combination of a low-pass filter for VFD measurements and peak min/max capture for transient events. The CAT III 1000V/CAT IV 600V safety rating provides critical protection when working on high-energy circuits. Most people don’t realize that a standard meter can give dangerously inaccurate readings on modern motor drives, which is exactly the problem the 87V solves.
It directly solves the pain points of intermittent faults and noisy electrical measurements. The included TL75 test leads, AC175 alligator clips, and temperature probe mean you have a complete diagnostic kit ready for any industrial scenario.
What’s in the Box
- Fluke 87V Industrial Digital Multimeter
- TL75 Test Leads (industry-standard silicone leads)
- AC175 Alligator Clips (for secure connections)
- 80BK Temperature Probe (for thermocouple measurements)
- User Manual and Documentation
- 9V Battery (installed for immediate use)
Who Should Buy the Fluke 87V Industrial Digital Multimeter?
✅ Perfect For:
Industrial Maintenance & Plant Electricians: The CAT III 1000V safety rating and True RMS accuracy are non-negotiable for safely troubleshooting 480V+ industrial distribution panels and motor control centers. The low-pass filter is essential for accurate readings on noisy VFDs and variable speed drives.
HVAC/R Technicians Working on Modern Systems: Diagnosing complex HVAC units with inverter-driven compressors and blower motors requires the 87V’s low-pass filter. The included temperature probe allows for direct thermocouple readings of refrigerant lines and motor bearings.
Advanced Automotive & Heavy Equipment Technicians: The peak min/max capture function is perfect for finding intermittent voltage drops or sensor glitches in modern vehicle CAN bus systems and complex electrical systems in heavy machinery.
Facility Managers & Controls Engineers: If you’re responsible for troubleshooting building automation, PLCs, or complex control circuits, the 87V’s ability to measure up to 1000V AC/DC and capture transients makes it a diagnostic powerhouse.
❌ Skip This If:
You’re a Home DIYer or Electronics Hobbyist: The 87V’s advanced features and industrial safety rating are overkill for basic outlet testing or low-voltage electronics projects. A more affordable model like the Fluke 117 or a basic auto-ranging meter is a better fit.
You Need a Compact Meter for Quick Service Calls: If your primary need is a lightweight, pocket-sized meter for residential electrical checks, the 87V’s robust size and weight make it less ideal. Consider a compact model like the Fluke T6 for everyday residential troubleshooting.
Design & Build Quality
The Fluke 87V presents a classic, professional multimeter form factor built for the job site. It has a substantial, confidence-inspiring feel that immediately communicates its industrial-grade purpose. The high-resolution display is large and clear, featuring both a 6,000-count digital readout and a fast-responding analog bar graph for tracking trends.
Construction & Materials
This meter is constructed to meet MIL-PRF-28800F military standards for ruggedness, meaning it’s designed to survive drops, moisture, and harsh environmental conditions. The housing is made from a durable, high-impact plastic with a molded holster that provides extra protection and allows for easy bench-top or angled positioning during use.
Key Design Elements
- High-Resolution Display: The 6,000-count digital display provides precise readings, while the analog bar graph updates 40 times per second to visualize rapidly changing signals, a critical feature for spotting intermittent faults.
- Intuitive Rotary Dial & Button Layout: The large rotary function switch is easy to operate even with gloves, and dedicated buttons for key functions like Hold, Min/Max, and the Low-Pass Filter are clearly labeled and tactile.
- Protected Input Terminals: The input jacks are recessed and shrouded to prevent accidental contact with live conductors, a design element that directly supports its CAT III 1000V safety rating.
- Integrated Kickstand: The built-in holster features a fold-out kickstand, allowing for hands-free viewing of the display while taking measurements in the field or on a workbench.
Portability Assessment
With dimensions of approximately 7.6 x 3.5 x 1.9 inches and a weight of 1.5 pounds, the Fluke 87V is not a pocket meter. Its size and heft are a direct result of its robust construction and full feature set. It is designed to be carried in a tool bag or dedicated meter case, prioritizing durability and functionality over ultra-compact portability.
Performance & Real-World Testing
True RMS Accuracy & Voltage Measurement
The Fluke 87V’s core performance claim is its True RMS capability for measuring up to 1000V AC/DC. This is critical for modern electrical systems where non-linear loads create distorted waveforms. A standard average-responding meter can be off by up to 40% on these signals, while the 87V provides accurate readings.
Real Results from Specification Data:
- Voltage Range: Measures from 0.1mV to 1000V AC and DC, covering everything from sensitive electronics to industrial power distribution.
- Basic DC Accuracy: ±0.05%, which is laboratory-grade precision in a handheld field tool.
- Display Resolution: 6,000-count high-resolution display provides detailed readings like 599.9V instead of rounding to 600V.
Key Insight: Most people don’t realize that measuring the output of a VFD or switching power supply with a non-True RMS meter gives a false low reading. The 87V’s accuracy ensures correct diagnostics and prevents misdiagnosis of “low voltage” problems that don’t actually exist.
Advanced Diagnostic Functions
Beyond basic measurement, the 87V excels with specialized functions for troubleshooting intermittent and noisy signals. These features separate it from basic multimeters and define its professional utility.
| Function | Specification from Keyword | What This Means |
|---|---|---|
| Peak Min/Max Capture | Records transient spikes and sags | Captures intermittent faults that last as little as 1 millisecond, allowing you to “see” problems that happen when you’re not looking at the meter. |
| Low-Pass Filter | Filters out electrical noise for VFDs | Enables accurate measurement of the fundamental voltage and frequency on a Variable Frequency Drive by blocking the high-frequency switching noise from the inverter. |
| Analog Bar Graph | Updates 40 times per second | Provides a real-time, trending view of signal changes that is much faster than the digital display, perfect for tuning or observing fluctuations. |
In practice, the low-pass filter is a game-changer for HVAC technicians. It allows them to correctly measure the output of an inverter-driven compressor, which would otherwise show an unstable, inaccurate reading on a standard meter.
Safety & Durability Performance
The performance of a safety rating is binary: it either protects you or it doesn’t. The 87V’s certifications are its most critical performance specification.
- Safety Certification: CAT III 1000V / CAT IV 600V rating. This means it is independently verified to withstand voltage transients found on these categories of electrical circuits without arcing or failing.
- Build Standard: Meets MIL-PRF-28800F ruggedness standards. This is a tested military specification for environmental and mechanical durability.
- Included Probe Performance: The TL75 test leads are rated for the same CAT III 1000V safety level. Using inferior leads with a high-rated meter creates a dangerous weak link.
Real-world application means you can confidently use the 87V on 480VAC industrial distribution panels or 347/600VAC Canadian lighting circuits, knowing the meter and leads are designed for the potential fault energy present.
Temperature Measurement
The performance of the included Type K thermocouple temperature probe is straightforward and reliable. It provides a direct temperature reading capability without needing a separate instrument, which is invaluable for checking motor bearings, refrigerant lines, or overheating components. This turns the 87V from just an electrical meter into a broader diagnostic tool for mechanical systems.
Troubleshooting Common Issues
Issue #1: Inaccurate Readings on VFDs or Motor Drives
Problem: The voltage or frequency reading jumps erratically or seems incorrect when measuring the output of a variable frequency drive.
Solution: Activate the Low-Pass Filter function. Press the “LoPass” button on the front panel. This filters out the high-frequency switching noise from the inverter, allowing you to read the true fundamental voltage and frequency driving the motor.
Prevention: Always use the low-pass filter when measuring any PWM (Pulse Width Modulated) signal from drives, inverters, or electronic speed controls.
Issue #2: Missing Intermittent Voltage Spikes or Drops
Problem: You suspect a brief power glitch is causing equipment to reset, but you can’t catch it with a standard reading.
Solution: Use the Peak Min/Max Capture mode. Press the “Min/Max” button to start recording. The meter will capture and hold the highest (MAX) and lowest (MIN) values, even if they last only 1 millisecond, allowing you to review them later.
Tech Note: The analog bar graph updates 40 times per second and is excellent for visually spotting these fluctuations in real-time.
Issue #3: Display is Blank or Readings are Unstable
Problem: The high-resolution display shows nothing, or the numbers jump around when the test leads aren’t connected to anything.
Solution:
- Check the Battery: Replace the 9V battery (included in the box). A low battery is the most common cause of display issues.
- Check Input Jacks: Ensure the TL75 test leads are fully seated in the correct COM and V/Ω jacks.
- Check Function Dial: Verify you are on the correct function (e.g., V for voltage, not Ω for resistance).
Issue #4: Temperature Probe Not Reading Correctly
Problem: The included temperature probe shows an incorrect or “OL” (overload) reading.
Solution: First, ensure the function dial is set to the temperature (°C/°F) setting. Verify the probe’s mini-banana plug is fully inserted into the front input jacks. The 80BK probe is a Type K thermocouple; ensure you are not trying to measure surface temperature through insulation or paint.
Safety Feature: The meter is designed to be used with this specific probe type; using an incompatible probe can damage the meter.
Issue #5: Concern About Safety on High-Voltage Circuits
Problem: Hesitation to use the meter on live 480VAC or higher panels due to safety concerns.
Solution: Verify your meter and leads are rated for the job. The Fluke 87V has a CAT III 1000V / CAT IV 600V safety rating. Crucially, the included TL75 test leads carry the same CAT III 1000V rating. Always inspect leads for cracks or damage before use.
When to Contact Support
If issues persist after troubleshooting:
- Warranty Coverage: The Fluke 87V comes with a 3-year warranty covering defects in materials and workmanship.
- Support Channels: Contact Fluke directly through their website for technical support and warranty service.
- Amazon Returns: Eligible for FREE returns within the standard Amazon return window if the product is defective or not as described.
View Product Support & Warranty →
Frequently Asked Questions
What does “True RMS” mean and why do I need it?
True RMS (Root Mean Square) means the meter accurately measures the effective value of AC waveforms, including distorted or non-sinusoidal signals from modern electronics like VFDs, switching power supplies, and LED drivers.
If you only work with perfect sine waves (like utility power), you might not need it. However, for any troubleshooting involving motor drives, inverters, or electronic ballasts, a standard average-responding meter can be off by up to 40%, making True RMS essential for correct diagnostics.
What is the difference between CAT III 1000V and CAT IV 600V safety ratings?
These are International Electrotechnical Commission (IEC) categories that define the meter’s ability to withstand voltage transients (spikes) in different locations. CAT IV 600V applies to the source of the low-voltage installation, like the utility connection or meter panel.
CAT III 1000V applies to downstream distribution, like industrial breaker panels, motor control centers, and fixed loads. The Fluke 87V’s dual rating means it is certified for safe use at both levels, with the CAT III 1000V being its maximum working voltage.
Can I use the Fluke 87V for automotive diagnostics?
Yes, absolutely. Its peak min/max capture function is particularly valuable for automotive work, as it can record intermittent voltage drops from a failing alternator or glitches in sensor signals that cause check engine lights.
The included AC175 alligator clips provide secure connections to battery terminals. However, for dedicated automotive tasks like measuring duty cycle or frequency for fuel injectors, you would need to ensure the meter’s frequency range is sufficient for the specific signal.
How does the low-pass filter for VFDs actually work?
The low-pass filter electronically blocks high-frequency noise (typically above 1 kHz) while allowing the lower fundamental frequency (usually 0-400 Hz for motor control) to pass through to the measurement circuit.
When you press the “LoPass” button, the meter filters out the PWM (Pulse Width Modulation) switching noise generated by the VFD’s inverter section. This lets you read the actual voltage and frequency being delivered to the motor, which is what you need for proper troubleshooting and setup.
Are the included TL75 test leads and accessories high quality?
Yes, the included accessories are professional-grade. The TL75 test leads are silicone-insulated for flexibility in cold weather and are independently rated to the same CAT III 1000V safety level as the meter itself.
The AC175 alligator clips provide secure connections for hands-free measurements. The 80BK temperature probe is a Type K thermocouple for direct temperature readings. Many cheaper meters include basic leads that become the safety weak link; Fluke does not compromise here.
Is the Fluke 87V suitable for electronics bench work or microcontroller projects?
While it can certainly measure low voltages and resistance, the 87V is overkill for most bench electronics. Its high-voltage safety features, robust size, and advanced industrial functions are not typically needed for low-voltage DC circuits.
For dedicated electronics work, a meter with features like capacitance measurement, frequency counting, and a continuity beeper with faster response might be more practical and cost-effective.
