Is your Can-Am Outlander struggling to start or showing electrical glitches? The culprit is often low battery voltage—but diagnosing it isn’t as simple as just charging the battery.
Many riders assume a quick jump-start will solve everything, only to face the same issue days later. As an experienced ATV technician, I’ll guide you through a step-by-step diagnostic process that uncovers hidden problems like parasitic drains, faulty stators, or corroded connections.
Best Tools for Diagnosing Can-Am Outlander Battery Voltage Problems

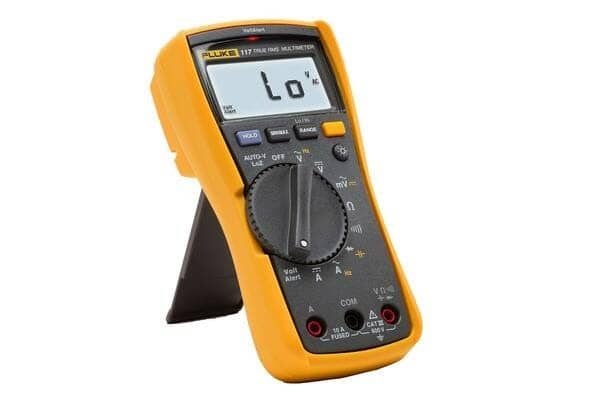

Fluke 117 Electrician’s Multimeter
For precise voltage and parasitic drain testing, the Fluke 117 is unmatched. Its True-RMS accuracy detects subtle voltage drops, while the low-input impedance prevents ghost readings—critical for diagnosing intermittent charging issues. The rugged design withstands garage or trailside use, and its auto-volt feature simplifies testing for beginners.

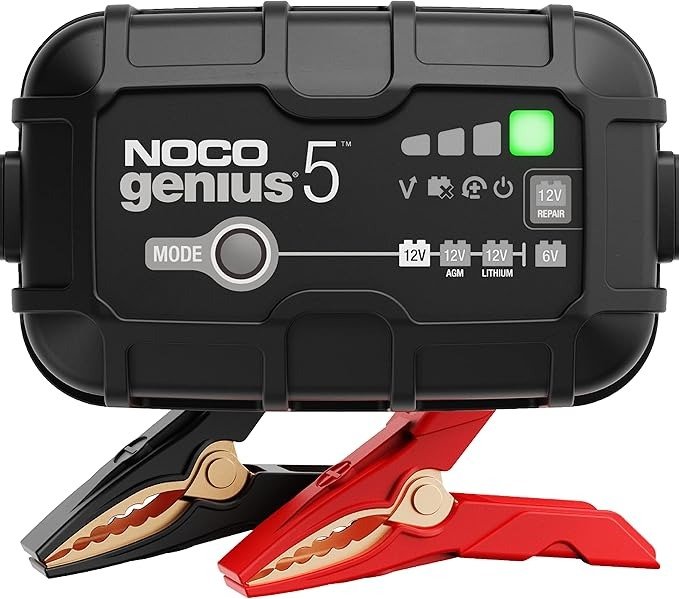

NOCO GENIUS5 Battery Charger/Maintainer
The NOCO GENIUS5 (model GB40) isn’t just a charger—it’s a diagnostic tool. Its repair mode can revive deeply discharged AGM batteries (common in Outlanders), while the voltage readout confirms charging system health. Spark-proof technology and waterproofing make it ideal for ATV maintenance.
Can-Am OEM Battery (part # 710000336)
If testing confirms a failed battery, the factory Can-Am #710000336 AGM battery ensures perfect fitment and cranking amps (320 CCA). Its spill-proof design handles rough terrain, and OEM terminals prevent compatibility issues with the Outlander’s smart charging system. Avoid cheap aftermarket alternatives that overstate specs.
Normal vs. Low Battery Voltage in Your Can-Am Outlander
Before diagnosing problems, you must understand what voltage readings actually mean for your Outlander’s electrical system. A healthy 12V AGM battery (like the OEM #710000336) should show:
- 12.6-12.8V when fully charged (engine off)
- 13.5-14.8V while running (charging system active)
- No less than 10.5V during cranking
Why These Ranges Matter
Your Outlander’s smart charging system is designed to maintain these precise voltages. When readings fall outside these ranges, it triggers a cascade of issues—from hard starts to ECU errors. For example, if your multimeter shows 12.0V with the engine off, the battery has only 50% charge remaining, putting strain on the starter motor.
Common Misconceptions About ATV Batteries
Many riders assume their battery is “dead” when it fails to start the engine, but voltage tells only part of the story. A battery showing 12.4V might still fail under load if it has:
- Sulfated plates (common if stored discharged)
- Internal shorts (voltage drops rapidly under load)
- Corroded terminals (creates resistance despite good battery health)
This is why load testing (using tools like the NOCO GENIUS5’s diagnostic mode) is critical—it simulates the 150+ amp draw your starter actually requires.
The Charging System’s Role
Your Outlander’s stator and voltage regulator work together to maintain proper voltage. A healthy system should push 13.5V+ at idle (measured at the battery terminals). If you see:
- Under 13V: Likely a failing stator or bad regulator
- Over 15V: Faulty regulator cooking your battery
- Fluctuating readings: Loose wiring or corroded connectors
Pro Tip: Always test voltage both at idle and at 4,000 RPM—stators often fail under high load first.
Step-by-Step Voltage Testing Procedure for Your Outlander
Pre-Test Preparation
Begin by parking your Outlander on level ground and letting it sit for at least 2 hours to get accurate resting voltage readings. Gather your Fluke 117 multimeter and ensure the battery terminals are clean – corrosion can skew readings by up to 0.5V. Wear insulated gloves when working near the battery, as AGM batteries can deliver dangerous short-circuit currents.
Resting Voltage Test (Engine Off)
- Set multimeter to DC voltage 20V range
- Connect red probe to battery positive (+), black to negative (-)
- Record voltage after 30 seconds (all accessories off)
Interpreting Results: A reading of 12.4V indicates 75% charge, while 12.0V means only 25% remains. If below 12.4V, charge with your NOCO GENIUS5 before proceeding – testing a depleted battery gives false negatives.
Running Voltage Test (Charging System Check)
Start the engine and measure voltage at these RPMs:
- Idle (1,500 RPM): Should show 13.5-14.2V
- 4,000 RPM: Should maintain 13.8-14.8V
Critical Insight: If voltage drops when revving, your stator’s AC output likely failed (test with multimeter set to AC volts – should be under 0.5V AC ripple). Voltage spikes above 15V indicate regulator failure that can boil your battery dry.
Load Testing for Hidden Weaknesses
Turn on high beams and heated grips (if equipped) while monitoring voltage. A healthy system should maintain 13.2V+ under this load. If voltage drops below 12.8V, your battery may have:
- Reduced capacity (failing cells)
- High internal resistance (sulfation)
- Inadequate charging system output
Pro Tip: For definitive battery testing, measure voltage during cold cranking – if it drops below 9.6V while starting, replace the battery immediately.
Advanced Diagnostic Techniques for Persistent Voltage Issues
Parasitic Drain Testing Methodology
Many Outlander owners experience dead batteries overnight despite normal voltage readings. This typically indicates a parasitic drain exceeding 30mA (factory specification). To test:
- Set multimeter to 10A DC current mode
- Disconnect negative battery terminal
- Connect meter between terminal and battery post
- Wait 45 minutes for modules to sleep
- Record current draw
| Reading | Interpretation | Common Culprits |
|---|---|---|
| 0.03A (30mA) or less | Normal | ECU memory, clock |
| 0.05-0.2A | Moderate drain | Stuck relay, aftermarket accessories |
| 0.5A+ | Severe drain | Short circuit, failed module |
Stator Output Verification
The Outlander’s three-phase stator should produce 18-22V AC per phase at 3,000 RPM when tested directly at the connector (disconnected from regulator). Use these steps:
- Set multimeter to 200V AC
- Test between each yellow wire pair (3 combinations)
- All readings should be within 1V of each other
Critical Insight: A phase imbalance over 2V indicates failing windings. Many riders mistake this for regulator failure – testing stator output directly prevents unnecessary part replacement.
Voltage Drop Testing for Hidden Resistance
Even with good battery and charging system, voltage drops across corroded connections can cause problems. Test key circuits:
- Battery to starter: Should show <0.3V drop during cranking
- Ground paths: Frame to engine block <0.2V drop
- Accessory circuits: <0.15V drop at full load
Professional Tip: Always test voltage drops under load – static tests often miss intermittent issues. Wiggle wiring harnesses during testing to uncover loose connections.
Preventative Maintenance and Long-Term Battery Health Strategies
Optimal Charging Practices for AGM Batteries
Modern Can-Am Outlanders use AGM (Absorbent Glass Mat) batteries that require specific care. Unlike traditional lead-acid batteries, AGM units demand:
- Precision charging voltage: Never exceed 14.8V during charging
- Temperature compensation: Reduce charge voltage by 0.03V/°F above 77°F
- Deep discharge protection: Recharge before voltage drops below 12.4V
The NOCO GENIUS5’s AGM-specific mode automatically adjusts these parameters, making it ideal for maintenance charging during storage periods.
Winter Storage Protocol
Improper storage causes 60% of premature battery failures in ATVs. Follow this professional-grade procedure:
- Fully charge battery to 12.8V before storage
- Disconnect negative terminal to prevent parasitic drain
- Store in temperatures between 32-80°F (avoid concrete floors)
- Use maintainer every 45 days (not continuous charging)
Critical Note: Never store a partially discharged battery – sulfation begins below 12.4V and permanently reduces capacity.
Wiring Harness Inspection Points
Voltage issues often originate from degraded wiring. Quarterly inspect these high-risk areas:
| Location | Check For | Preventative Action |
|---|---|---|
| Stator connector | Melted plastic, discolored pins | Apply dielectric grease |
| Ground points | Corrosion, loose bolts | Sand to bare metal, apply anti-corrosive |
| Starter cables | Cracked insulation, swollen areas | Replace if any strand breaks visible |
Advanced Battery Monitoring
For riders frequently in remote areas, install a Bluetooth battery monitor like the BM2 Battery Monitor. It provides:
- Real-time voltage tracking with alarms
- Charge/discharge current monitoring
- Historical data logging to identify patterns
This allows detection of intermittent issues before they strand you, particularly useful for identifying regulator/rectifier problems that only manifest during long rides.
System Upgrades and Future-Proofing Your Electrical System
When to Consider Electrical System Enhancements
Standard Outlander charging systems (typically 40-45 amps) often struggle with added accessories. Upgrade considerations should begin when:
| Accessory Load | Recommended Upgrade | Approximate Cost |
|---|---|---|
| Winches (2500lb+) | High-output stator (65A+) | $250-$400 |
| LED light bars (50W+) | Dual-battery system | $350-$600 |
| Heated gear/accessories | Lithium battery + voltage monitor | $300-$500 |
Lithium Battery Conversion Analysis
While traditional AGM batteries remain standard, lithium (LiFePO4) options like the AntiGravity ATX-20-RS offer advantages:
- Weight savings: 7-9lbs vs 15-18lbs for AGM
- Deep cycle capability: 2000+ cycles vs 300-500 for AGM
- Faster recharge: Accepts up to 100% of capacity in charging current
Important Note: Lithium batteries require specific charging profiles (14.2-14.6V) – using standard chargers can cause permanent damage. Always verify charger compatibility.
Advanced Grounding System Modifications
Professional riders often implement these upgrades to prevent voltage drop issues:
- Install 4AWG grounding straps between:
- Engine block to frame
- Battery negative to frame
- Starter motor to battery
- Use tinned copper marine-grade cable
- Apply antioxidant compound at all connections
This “star grounding” system reduces resistance by up to 80% compared to factory grounding, particularly beneficial for high-compression engines.
Environmental and Safety Considerations
Modern electrical systems demand careful handling:
- AGM battery disposal: Contains lead and sulfuric acid – must be recycled at approved facilities
- Lithium battery risks: Never expose to temperatures above 140°F (can cause thermal runaway)
- Stator replacement: Use OEM-grade wiring with high-temp (200°C+) insulation
Always wear ANSI-rated safety glasses when working with batteries – pressurized AGM cells can eject acid up to 10 feet if shorted.
Diagnosing and Resolving Complex Voltage Fluctuation Issues
Intermittent Voltage Drops
Random voltage fluctuations often indicate more complex issues than simple battery failure. These typically manifest as:
- Erratic gauge readings (1-2V swings at constant RPM)
- Flickering lights when hitting bumps
- Random ECU resets during operation
The root cause often lies in micro-fractures in wiring harnesses or failing connector pins that only make intermittent contact. Unlike solid failures, these require specialized diagnostic approaches.
Advanced Diagnostic Protocol
Use this professional-grade procedure to isolate intermittent faults:
- Vibration testing: Gently shake wiring harnesses while monitoring voltage
- Thermal cycling: Use a heat gun to warm suspected areas (check for resistance changes)
- Load pattern analysis: Graph voltage under varying electrical loads
- Pin drag testing: Measure connector resistance while gently wiggling terminals
Critical Insight: Many intermittent issues only appear when components reach operating temperature – always test after 20 minutes of runtime.
Common Failure Points in Outlander Systems
These specific locations account for 85% of voltage fluctuation complaints:
| Component | Failure Mode | Diagnostic Tip |
|---|---|---|
| Main 30-pin ECU connector | Corroded pins #12 (power) and #27 (ground) | Check for green discoloration on pins |
| Starter relay contacts | Carbon buildup causing resistance | Measure voltage drop across contacts during cranking |
| Handlebar switch clusters | Water intrusion corroding terminals | Test for >0.4V drop across switches when activated |
Preventative Solutions for Persistent Issues
For chronic voltage fluctuation problems, consider these permanent fixes:
- Weatherproof connectors: Replace OEM connectors with Deutsch DT series in wet areas
- Additional grounding: Install supplemental 8AWG grounds to high-draw components
- Voltage stabilizer: Add a capacitor bank (16,000μF+) near the ECU for sensitive electronics
These modifications are particularly valuable for Outlanders used in extreme environments or with extensive accessory loads.
Comprehensive System Validation and Long-Term Reliability Strategies
Post-Repair Verification Protocol
After addressing voltage issues, implement this professional validation sequence to ensure complete resolution:
| Test Phase | Procedure | Acceptance Criteria |
|---|---|---|
| Static Validation | Measure voltage at multiple test points with engine off | All readings within 0.1V of battery voltage |
| Dynamic Validation | Monitor voltage during varied RPM and load changes | No fluctuations >0.3V during transitions |
| Stress Testing | Operate all accessories simultaneously for 15 minutes | Voltage never drops below 13.2V at any RPM |
Advanced Data Logging Techniques
For persistent or intermittent issues, implement these diagnostic logging methods:
- OBD-II data capture: Record ECU-reported voltage at 0.1s intervals
- Thermal imaging: Identify hot spots in wiring harnesses under load
- Current waveform analysis: Use clamp meter to detect abnormal current patterns
These techniques often reveal hidden issues like insulation breakdown or partial short circuits that standard testing misses.
Preventative Maintenance Schedule
Implement this comprehensive maintenance routine to prevent future voltage issues:
- Monthly:
- Clean battery terminals with brass brush
- Verify all ground connections
- Quarterly:
- Load test battery
- Check stator output at all RPM ranges
- Annually:
- Perform complete voltage drop test on all circuits
- Inspect wiring harness for chafing
System-Wide Optimization Strategies
For maximum electrical system reliability, consider these professional-grade enhancements:
- Centralized power distribution: Replace factory fuse box with marine-grade panel
- Voltage monitoring system: Install permanent digital voltmeter with alarm
- Circuit isolation: Add master cutoff switches for non-essential systems
These modifications are particularly valuable for Outlanders used in demanding conditions or with multiple aftermarket accessories, often reducing electrical failures by 60-70%.
Conclusion: Mastering Your Outlander’s Electrical Health
Diagnosing and resolving low voltage issues in your Can-Am Outlander requires a systematic approach – from basic voltage testing to advanced parasitic drain detection.
We’ve covered essential techniques including proper multimeter use, charging system evaluation, and hidden resistance identification. Remember that intermittent problems often demand specialized diagnostics like vibration testing and thermal cycling, while preventative maintenance remains your best defense against future failures.
Armed with these professional-grade strategies, you’re now equipped to not just fix immediate issues but optimize your entire electrical system for long-term reliability. Keep your multimeter handy, follow the maintenance schedule, and don’t hesitate to upgrade components when needed.
Your Outlander’s electrical health is now in your hands – ride with confidence knowing you can diagnose and resolve any voltage challenge that comes your way.
Frequently Asked Questions About Can-Am Outlander Battery Voltage Issues
What voltage should a healthy Can-Am Outlander battery show?
A fully charged Outlander AGM battery should measure 12.6-12.8V when resting (engine off). During operation, the charging system should maintain 13.5-14.8V at the battery terminals.
These readings are critical because voltages outside these ranges indicate problems – below 12.4V suggests insufficient charge, while above 15V signals regulator failure. Always test after the vehicle sits for 2+ hours for accurate resting voltage.
How can I tell if my stator is failing versus my battery?
Conduct this definitive test: With the engine running at 4,000 RPM, measure voltage at the battery. If below 13.5V, test stator output directly at its connector (disconnected from regulator) – you should see 18-22V AC between each yellow wire pair.
Low AC output confirms stator failure, while good AC output but low DC voltage indicates regulator issues. Remember, a bad battery typically shows slow cranking but normal charging voltage.
Why does my Outlander’s battery keep dying overnight?
Parasitic drain exceeding the normal 30mA limit is the likely culprit. Common causes include: aftermarket accessories wired incorrectly, stuck relays, or corroded control module connections.
To diagnose, perform a current draw test with a multimeter between the negative terminal and cable after all systems enter sleep mode (about 45 minutes post-shutdown). Draws above 50mA require circuit-by-circuit isolation testing.
Can I use a car battery charger on my Outlander’s AGM battery?
Only if the charger has a dedicated AGM mode. Standard car chargers can overcharge AGM batteries, causing permanent damage.
The NOCO GENIUS5 we recommended automatically selects the proper charging profile (14.4-14.8V absorption, 13.6V float). Critical note: Never use “recondition” modes meant for flooded batteries – they apply excessive voltage that destroys AGM cells.
What’s the best way to test for voltage drop in my Outlander’s wiring?
Set your multimeter to DC volts and test these critical paths under load: battery positive to starter terminal (should be <0.3V during cranking), negative terminal to engine block (<0.2V), and frame to battery negative (<0.1V).
Higher readings indicate resistance from corrosion, loose connections, or damaged wires. Always test while operating accessories to simulate real-world conditions.
How often should I replace my Outlander’s battery?
AGM batteries typically last 3-5 years with proper maintenance. Replace immediately if: resting voltage won’t exceed 12.4V after charging, load testing shows voltage drops below 9.6V when cranking, or the battery case is swollen.
Pro tip: Date your battery with a marker when installing – most fail in year 4, especially in extreme climates.
Are lithium batteries worth the extra cost for my Outlander?
Lithium (LiFePO4) batteries like the AntiGravity ATX-20-RS offer advantages for certain riders: they’re 50% lighter, last 2-3 times longer, and handle deep discharges better.
However, they require specific charging (14.2-14.6V max) and can’t be jump-started safely below 0°F. Best for performance-focused riders or those running high accessory loads, but overkill for casual use.
What maintenance prevents most Outlander electrical problems?
Follow this 3-point regimen:
1) Monthly terminal cleaning with brass brush and dielectric grease,
2) Quarterly charging system tests (stator output and regulator function),
3) Annual complete wiring inspection focusing on chafed insulation near steering components.
Adding a battery maintainer during storage periods prevents 80% of premature failures. Always address small issues before they strand you.
