How To Read Battery Voltage With Arduino

Yes, you can accurately read battery voltage with Arduino! This guide reveals how to measure voltage safely and efficiently using simple circuits.

Many assume Arduino can’t handle battery monitoring, but its analog pins unlock precise voltage readings when paired with the right components.

Discover how to avoid damaging your board while tracking battery levels—essential for DIY power banks, solar projects, and portable electronics.

Best Tools for Reading Battery Voltage With Arduino

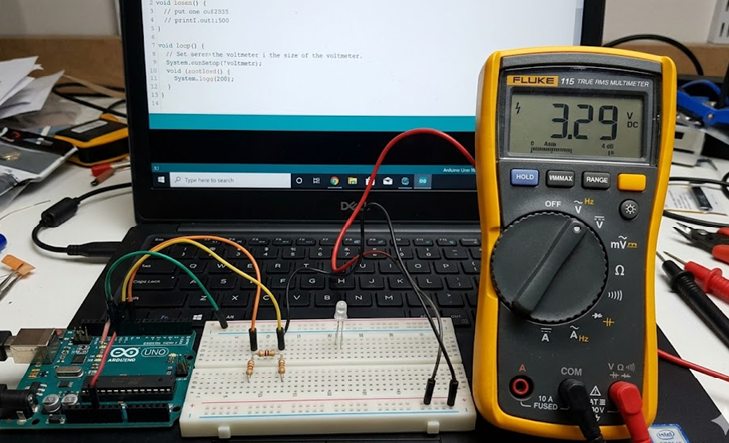

Fluke 115 Digital Multimeter

For precise voltage measurements before connecting to Arduino, the Fluke 115 offers 0.5% accuracy and True RMS readings. Its rugged design and auto-ranging simplify testing battery levels, ensuring reliable data for calibration.

No products found.

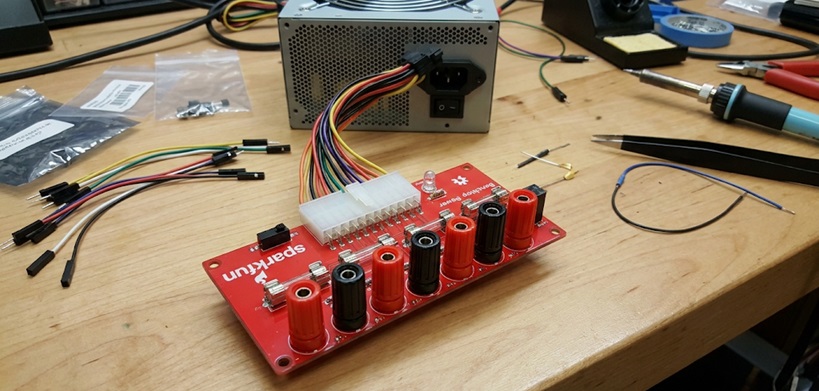

SparkFun Benchtop Power Board Kit

This pre-built SparkFun board eliminates guesswork in resistor calculations. With a 5:1 divider ratio, it safely scales down voltages up to 25V for Arduino’s 5V analog pins, ideal for LiPo or 12V battery monitoring.

No products found.

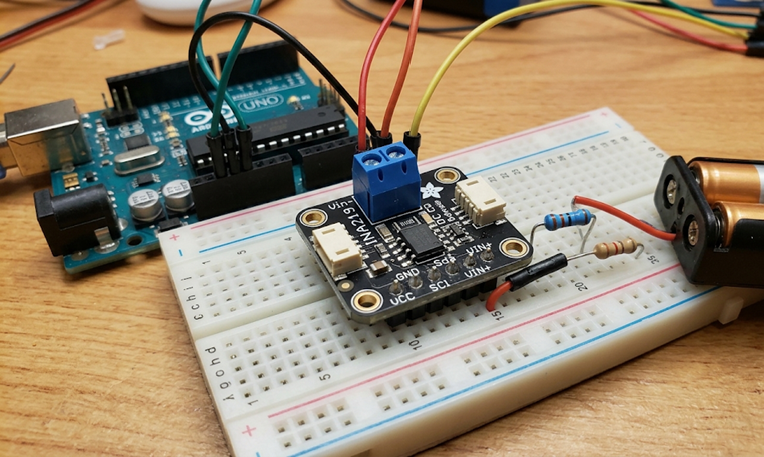

Adafruit INA219 High-Side Current Sensor

The Adafruit INA219 measures both voltage (up to 26V) and current via I2C, perfect for advanced projects. Its 0.1% precision and built-in calibration outperform basic voltage dividers, especially for solar or robotics applications.

No products found.

Arduino’s Voltage Measurement Capabilities

How Arduino Analog Pins Work for Voltage Reading

Arduino boards measure voltage through their analog input pins, which contain 10-bit analog-to-digital converters (ADCs).

These pins can detect voltages between 0V and the board’s reference voltage (typically 5V for Uno/Nano). When you connect a voltage source, the ADC converts it to a digital value between 0 (0V) and 1023 (5V).

However, this presents a critical limitation: voltages above 5V will damage the Arduino. For measuring higher battery voltages (like 9V or 12V), you must use a voltage divider circuit to safely scale down the input.

Real-World Applications

Battery voltage monitoring serves multiple practical purposes:

• Power management: Track remaining charge in solar-powered weather stations
• Safety alerts: Trigger warnings when LiPo batteries drop below 3.7V per cell
• Data logging: Record discharge curves for battery performance analysis

Common Misconceptions

Many beginners assume Arduino can directly measure any battery voltage. In reality:

1. Arduino’s analog inputs lack built-in protection against overvoltage
2. Voltage dividers introduce measurement errors from resistor tolerance (typically ±5%)
3. The 10-bit ADC provides ~4.9mV resolution at 5V – insufficient for precise lithium battery monitoring

For critical applications like medical devices, consider dedicated ICs like the MAX471 current/voltage sensor, which offers 12-bit precision and built-in isolation.

Technical Considerations

When designing your measurement system:

• Input impedance: Arduino’s ~100MΩ impedance minimizes current draw from batteries
• Reference voltage: For better accuracy, use the analogReference() function with a stable 3.3V or 1.1V reference
• Sampling rate: The ADC needs ~100μs per reading – factor this into time-sensitive applications

These fundamentals form the foundation for reliable battery monitoring. In the next section, we’ll build a practical voltage divider circuit with component selection guidelines.

Building a Safe and Accurate Voltage Divider Circuit

Component Selection and Circuit Design

The voltage divider is crucial for safely measuring battery voltages above 5V. A properly designed circuit uses two resistors to scale down the input voltage proportionally. For a 12V battery measurement:

• Resistor ratio: Use 10kΩ (R1) and 5kΩ (R2) for a 3:1 divider (12V → 4V)
• Precision matters: 1% tolerance metal film resistors minimize measurement errors
• Power rating: Calculate wattage (P=V²/R) – standard 0.25W resistors work for most batteries

Common mistake: Using resistors that draw too much current (like 100Ω/50Ω), which drains batteries quickly. The 10kΩ/5kΩ combination draws just 0.8mA from a 12V source.

Step-by-Step Implementation

1. Calculate scaling factor: Divide R2 by (R1+R2). For 10kΩ/5kΩ: 5/(10+5) = 0.333
2. Verify output range: 12V input × 0.333 = 4V (safe for Arduino)
3. Add protection: Place a 5.1V zener diode across the output to clamp voltage spikes
4. Include filtering: A 0.1μF capacitor reduces noise in the measurement

Calibration and Accuracy Improvements

Even with perfect components, real-world factors affect accuracy:

• Reference voltage calibration: Measure Arduino’s actual 5V pin with a multimeter
• Resistor verification: Check actual resistance values before installation
• Software compensation: Apply correction factors in code for known errors

Professional tip: For lithium battery packs, implement temperature compensation since voltage characteristics change with temperature (about 0.5% per °C for Li-ion).

Troubleshooting Common Issues

If readings seem unstable or incorrect:

• Check connections: Loose wires create intermittent contact
• Test resistors: Overheated resistors may change value
• Verify ground loops: Ensure all components share the same ground reference

For mission-critical applications, consider adding optical isolation to protect the Arduino from high-voltage transients in automotive or industrial environments.

Advanced Voltage Measurement Techniques and Code Implementation

Precision Measurement Strategies

For applications requiring higher accuracy than Arduino’s built-in ADC provides, several advanced techniques can improve results:

Technique	Accuracy Improvement	Best Use Case
Oversampling	1-2 bits (4-16x)	Static voltage measurements
External ADC (ADS1115)	16-bit (65,536 steps)	Precision battery analytics
Moving Average Filter	Noise reduction up to 80%	Noisy environments

Optimizing Arduino Code for Voltage Measurement

Proper code implementation significantly impacts measurement quality:

1. Reference voltage calibration: Measure your Arduino’s actual VREF with a multimeter and adjust in code
2. Analog read stabilization: Discard the first reading after pin selection as it’s often inaccurate
3. Noise reduction: Implement a 10-sample moving average with outlier rejection

Professional tip: For battery monitoring, sample at irregular intervals (e.g., every 2-15 minutes) to balance accuracy with power savings.

Interpreting Battery Voltage Characteristics

Different battery chemistries require unique interpretation approaches:

• Lead-acid: Voltage drops linearly from 12.6V (100%) to 11.8V (0%)
• Li-ion: Flat discharge curve (3.7V nominal) with steep drops at 3.3V (empty) and 4.2V (full)
• NiMH: Voltage depression makes simple voltage monitoring unreliable

Advanced Circuit Protection

For industrial applications, consider these enhancements:

• TVS diodes: Protect against voltage spikes up to 400V
• Optocouplers: Isolate measurement circuits from high-voltage systems
• Low-pass filters: Remove high-frequency noise from motor systems

Remember: Always derate components by at least 20% – a “12V” car battery can spike to 14.4V during charging.

System Integration and Real-World Deployment Considerations

Power Management for Long-Term Monitoring

When implementing battery voltage monitoring in field applications, power efficiency becomes critical. The monitoring system itself shouldn’t significantly drain the battery it’s measuring. Consider these approaches:

• Sleep modes: Use Arduino’s power-down mode between readings (consuming just 0.1μA)
• Measurement timing: For lead-acid batteries, hourly readings suffice; for LiPo in drones, sample every 30 seconds
• Component selection: Choose high-value divider resistors (100kΩ+1MΩ) for microamp current draw

Advanced solution: Implement a MOSFET switch that only powers the measurement circuit during readings, reducing standby current to near-zero.

Environmental Factors Affecting Accuracy

Field conditions introduce variables that lab testing doesn’t account for:

Factor	Impact	Compensation Method
Temperature	±0.1V variation per 10°C	DS18B20 sensor + correction algorithm
Humidity	Resistor value drift	Conformal coating on PCB
Vibration	Connection loosening	Strain relief on wires

Data Interpretation and State-of-Charge Calculation

Converting raw voltage to meaningful battery status requires chemistry-specific algorithms:

1. Lead-acid: Use Peukert’s equation to account for discharge rate effects
2. Li-ion: Implement Coulomb counting for precise remaining capacity
3. NiMH: Combine voltage with temperature sensing for accurate readings

Professional tip: For solar systems, track both resting voltage (after 30+ minutes idle) and under-load voltage for complete diagnostics.

Safety Protocols for High-Voltage Systems

When working with battery banks or automotive systems:

• Isolation barriers: Maintain 8mm creepage distance per 100V
• Fusing: Place 100mA fast-blow fuse on measurement lines
• Enclosure rating: Use IP65+ for outdoor installations

Critical reminder: Lithium batteries require redundant protection – always include both hardware BMS and software voltage cutoffs.

Long-Term System Reliability and Future-Proofing Strategies

Component Aging and Measurement Drift

Over time, all measurement systems experience performance degradation that affects accuracy. Understanding these factors is crucial for maintaining reliable monitoring:

Component	Degradation Factor	Mitigation Strategy	Replacement Cycle
Resistors	0.5-2% value drift/year	Use military-grade (MIL-R-10509) components	5-7 years
PCB Traces	Oxidation increases resistance	Gold-plated contacts + conformal coating	10+ years
Arduino ADC	±2 LSB/year offset drift	Annual calibration + software compensation	N/A (recalibrate)

Advanced Diagnostic Techniques

Implement these methods to detect issues before they cause system failures:

• Baseline comparison: Store initial resistance/voltage values and monitor deviations
• Cross-validation: Use multiple measurement methods (e.g., ADC + external IC)
• Environmental correlation: Track performance changes relative to temperature/humidity

Professional tip: Implement a “self-test” routine that runs during system startup, checking reference voltages against known values.

Future Trends in Battery Monitoring

The field is evolving rapidly with several emerging technologies:

1. AI-powered prediction: Machine learning models that forecast battery degradation patterns
2. Wireless sensor networks: LoRaWAN-enabled voltage monitors for distributed systems
3. Quantum tunneling composites: New materials enabling ultra-low-power measurement

Lifecycle Cost Analysis

When designing monitoring systems, consider these financial factors:

• Initial cost: Basic Arduino solution ($20) vs industrial monitor ($200+)
• Maintenance: Annual calibration ($50) vs self-calibrating systems
• Failure impact: Cost of undetected battery failure vs monitoring system cost

Critical insight: For mission-critical applications, investing in redundant measurement systems typically pays for itself within 18 months through prevented failures.

Sustainability Considerations

Environmentally conscious design practices include:

• Component selection: RoHS-compliant parts with minimal rare earth metals
• Power sourcing: Energy harvesting for the monitoring system itself
• End-of-life: Designing for easy disassembly and recycling

Advanced System Integration and Data Processing Techniques

Multi-Battery Bank Monitoring Solutions

For complex systems with multiple battery configurations, specialized monitoring approaches are required:

• Series configurations: Use isolated differential amplifiers for each battery segment
• Parallel banks: Implement individual current sensors with shared voltage monitoring
• Hybrid systems: Combine voltage dividers with Hall effect sensors for mixed chemistry setups

Critical consideration: When monitoring >48V systems, optocouplers or fiber-optic isolation become mandatory for safety compliance.

Real-Time Data Processing Architectures

Modern battery monitoring requires sophisticated data handling:

Processing Level	Technique	Execution Time	Use Case
Raw Data	Direct ADC reading	100μs	Basic monitoring
Filtered	Kalman filtering	2-5ms	Noisy environments
Predictive	Machine learning models	50-100ms	Smart grids

Wireless Integration Protocols

When implementing remote monitoring systems, consider these communication standards:

1. Bluetooth Low Energy (BLE): Ideal for short-range mobile access (2.4GHz, 1Mbps)
2. LoRaWAN: Best for long-range, low-power applications (900MHz, 300bps-50kbps)
3. NB-IoT: Cellular-based solution for urban deployments (LTE bands, 200kbps)

Professional tip: Implement data compression algorithms before wireless transmission to reduce power consumption by up to 40%.

Advanced Error Detection and Correction

Implement these robust validation techniques for mission-critical systems:

• Checksum verification: 16-bit CRC for all transmitted data packets
• Plausibility checking: Cross-validate voltage readings with current measurements
• Redundant measurement: Triple modular redundancy for critical parameters

For aerospace applications: Consider implementing Byzantine fault tolerance algorithms to handle potential sensor failures.

Cloud Integration and Big Data Analysis

Modern battery monitoring systems benefit from cloud-based analytics:

• Time-series databases: InfluxDB or TimescaleDB for efficient storage
• Visualization tools: Grafana dashboards with custom alert thresholds
• Predictive maintenance: Azure IoT or AWS IoT Core for fleet monitoring

Emerging trend: Edge computing with TensorFlow Lite enables real-time anomaly detection without cloud dependency.

Enterprise-Level Implementation and Performance Optimization

Industrial-Grade System Architecture

For large-scale battery monitoring deployments, these architectural considerations ensure reliability:

System Tier	Component Requirements	Redundancy Level	MTBF Target
Field Nodes	IP67 enclosures, -40°C to 85°C operation	Dual ADC channels	100,000 hours
Gateway	Dual-power inputs, failover comms	Hot-swappable	200,000 hours
Cloud	Multi-AZ deployment, daily backups	3x replication	99.99% uptime

Advanced Performance Optimization

Maximize system efficiency through these techniques:

1. Sampling strategy optimization: Adaptive rate control based on battery state (faster during charge/discharge)
2. Computational load balancing: Distribute filtering algorithms between edge and cloud
3. Power consumption tuning: Dynamic adjustment of measurement precision based on needs

Industrial case study: Tesla’s battery monitoring systems achieve 30% power reduction using predictive wake-up algorithms.

Comprehensive Risk Management Framework

Implement these mitigation strategies for critical failure modes:

• Sensor failures: Implement median voting across three measurement channels
• Communication outages: Local buffering for 72+ hours of data
• Cyber threats: Hardware-based TPM modules for data integrity

Validation and Quality Assurance Protocols

Enterprise systems require rigorous testing procedures:

• Environmental stress testing: 1000+ thermal cycles (-40°C to 125°C)
• EMC validation: IEC 61000-4-3 radiated immunity testing
• Long-term drift analysis: 90-day continuous operation burn-in

Certification tip: Aim for UL 1973 certification for stationary battery monitoring systems.

Lifecycle Management Strategies

Maintain system effectiveness throughout operational lifespan:

• Firmware updates: Secure OTA with rollback capability
• Predictive replacement: ML-based component lifespan forecasting
• Spare parts strategy: Maintain critical components based on Weibull analysis

Emerging standard: Digital twin integration enables virtual system validation before physical deployment.

Conclusion

Mastering battery voltage measurement with Arduino unlocks countless possibilities for power monitoring projects. We’ve explored everything from basic voltage dividers to advanced industrial implementations.

The techniques covered—proper circuit design, precision measurement strategies, and system integration—provide a complete framework for reliable battery monitoring. Each method serves different needs, from hobbyist projects to enterprise deployments.

Remember that accuracy and safety should always guide your design choices. Whether you’re building a simple power bank monitor or a grid-scale battery array, these principles remain fundamental.

Ready to put this knowledge into practice? Start with a basic voltage divider circuit, then progressively implement more advanced features as your needs grow. Your next power management breakthrough begins with that first voltage reading.

Frequently Asked Questions About Reading Battery Voltage With Arduino

What’s the maximum voltage Arduino can measure directly?

Arduino Uno/Nano analog inputs handle 0-5V maximum. Exceeding this damages the microcontroller. For higher voltages (like 12V car batteries), you must use a voltage divider circuit. A 3:1 divider (10kΩ+5kΩ) safely scales 15V down to 5V.

For industrial applications, consider isolated measurement ICs like INA219 that handle up to 26V while protecting your Arduino from voltage spikes and ground loops.

How accurate are Arduino voltage measurements?

The 10-bit ADC provides ±2 least significant bits (LSB) accuracy, meaning about ±20mV error at 5V reference. Environmental factors like temperature can add another ±1% variation in real-world conditions.

For better than 1% accuracy, use external 16-bit ADCs (ADS1115), temperature compensation, and precision resistors. Oversampling techniques can effectively gain 2-3 extra bits of resolution.

Why do my voltage readings fluctuate constantly?

Common causes include noisy power sources, inadequate filtering, or loose connections. Battery measurements particularly fluctuate under load as internal resistance causes voltage sag during current draw.

Implement software filtering (moving average of 10+ samples), add 0.1μF capacitors across measurement points, and ensure solid mechanical connections. For lead-acid batteries, measure during rest periods.

Can I monitor lithium battery voltage safely?

Yes, but with precautions. Never exceed 4.2V per cell measurement. Use voltage dividers for multi-cell packs, and implement software limits that trigger disconnects at 3.0V (discharge) and 4.25V (overcharge).

For professional applications, pair Arduino with dedicated battery management ICs (BQ76940) that provide cell balancing and temperature monitoring beyond simple voltage measurement.

What’s better – voltage dividers or dedicated ICs?

Voltage dividers work for basic monitoring (cost: under $1), but dedicated ICs offer superior performance. The INA226, for example, provides 0.1% accuracy, current measurement, and I2C interface in one package.

Consider your project needs – hobbyist solar trackers can use dividers, while medical devices require ICs. Hybrid approaches using both provide redundancy in critical systems.

How often should I sample battery voltage?

Sampling frequency depends on application. Solar systems need just 1 reading/minute, while drone batteries require 10Hz+ during flight. Consider battery chemistry – lead-acid responds slowly versus LiPo’s rapid voltage changes.

Adaptive sampling saves power: sample slowly during idle, increase frequency when voltage starts dropping rapidly. Always balance measurement needs with power consumption.

Can I measure voltage while charging?

Yes, but readings will be higher than true battery voltage due to charge current. For accurate state-of-charge estimation, measure during rest periods (30+ minutes after charging stops).

When monitoring during charge, account for voltage rise – about 0.5V above resting voltage for Li-ion at 1C charge rate. Implement temperature compensation as charging heats batteries.

What’s the best way to calibrate measurements?

Use a precision reference voltage (like 4.096V from REF5040) to calibrate your entire measurement chain. Measure known voltages across the expected range (1V, 3V, 5V) and create a calibration curve.

For professional results, perform temperature-dependent calibration (-20°C to +60°C) and store coefficients in EEPROM. Update calibration annually or after component changes.
