KAIWEETS KM602 Smart Multimeter 6000 Counts Review

Electrical troubleshooting demands a tool you can trust, not guess with. During a recent automotive diagnostic, we found the KAIWEETS KM602’s auto-ranging and NCV (Non-Contact Voltage) detector invaluable for quickly isolating a parasitic draw and safely checking live circuits.

The large, full-screen display provided clear readings in dim light, while the built-in flashlight proved essential under the dashboard. Testing its claims, the rechargeable battery lasted through a full weekend of intermittent use, validating its move away from disposable 9V cells. For DIYers and pros needing reliable, safe measurements, this multimeter tackles real-world electrical problems head-on.

Key Features at a Glance

• High-Resolution Accuracy: 6000 Counts True RMS for precise measurements on both AC and DC waveforms.
• Professional Safety Rating: IEC CAT III 1000V & CAT IV 600V certified for working on electrical panels, distribution boards, and appliances.
• Rechargeable Convenience: Built-in Li-ion battery with USB-C charging cable included—no more disposable 9V cells.
• Full-Function Testing: Measures AC/DC Voltage, Current, Resistance, Continuity, Capacitance, Frequency, and Temperature.
• Smart Features: Non-Contact Voltage (NCV) detection, Min/Max/Average recording, data hold, and a bright flashlight.
• Superior Display: Large, full-screen digital display with clear backlight for low-light conditions.
• Complete Kit: Includes test leads, K-type thermocouple, USB-C charging cable, and a durable storage case.
• Long-Term Security: Backed by a robust 3-year manufacturer’s warranty.

How Does It Compare? Top Alternatives Analysis

Before making your final decision, let’s see how the KAIWEETS KM602 Smart Multimeter stacks up against the top alternatives on Amazon. We’ve compared specs, customer ratings, and real-world performance to help you choose the right option for your needs.

Head-to-Head Comparison

Product	Key Features	Safety Rating	Display/Counts	Power Source	Amazon Rating
KAIWEETS KM602 ⭐ BEST OVERALL VALUE	NCV, Temp, Capacitance, Frequency, Flashlight, Full Kit	CAT IV 600V / CAT III 1000V	Full-Screen, 6000 Counts	Rechargeable USB-C	4.5★ (8,000+)
AstroAI AM33D 💰 BUDGET PICK	Basic Functions, Continuity, Diode Test	CAT III 600V	Standard, 2000 Counts	9V Battery	4.5★ (50,000+)
Fluke 117 Electrician’s Multimeter ⚡ PROFESSIONAL PICK	True RMS, VoltAlert, LoZ, Auto-V	CAT III 600V	Standard, 6000 Counts	9V Battery	4.7★ (5,000+)
Klein Tools MM325 🎒 COMPACT PICK	Basic Auto-Ranging, Compact Design	CAT III 600V	Small, 4000 Counts	AAA Batteries	4.6★ (3,000+)

Detailed Alternative Analysis

KAIWEETS KM602 Complete Specifications

Category	Specification
Model Number	KM602
Display Counts	6000 Counts TRMS
Measurement Functions	AC/DC Voltage, AC/DC Current, Resistance, Continuity, Capacitance, Frequency, Temperature, NCV
Safety Certification	IEC CAT III 1000V, CAT IV 600V
Power Source	Rechargeable Li-ion Battery (USB-C Charging)
Special Features	Auto-Ranging, Data Hold, Min/Max/Average Recording, Relative Mode, Flashlight, Full-Screen Display
Included Accessories	Test Leads, K-Type Thermocouple Probe, USB-C Charging Cable, Storage Case
Warranty	3-Year Warranty

Pros & Cons

✅ Pros

• Professional Safety (CAT IV 600V) – Meets stringent IEC standards for working on primary electrical supplies, offering critical protection that cheaper meters lack.
• Rechargeable Battery – The integrated Li-ion cell with USB-C charging eliminates the ongoing cost and hassle of 9V batteries, a major upgrade for daily users.
• Comprehensive Function Set – From capacitance and frequency to temperature with the included thermocouple, it handles advanced diagnostics beyond basic voltage checks.
• Excellent Included Kit – The storage case, quality leads, and thermocouple provide immediate out-of-box readiness, a value often missing in competitors.
• High-Resolution Display – The 6000-count, full-screen display shows more detail (e.g., 0.001V resolution) than standard 4000-count meters for finer diagnostics.
• Proven User Satisfaction – A consistent 4.5-star rating from over 8,000 Amazon reviews signals reliable real-world performance and durability.

❌ Cons

• No Bluetooth/Data Logging – Lacks smart connectivity for recording measurements over time, a feature found on some modern “smart” multimeters.
• Case Bulk – The protective storage case, while durable, adds to the overall footprint compared to a bare meter tossed in a toolbag.
• Learning Curve for Beginners – The array of functions (like Min/Max/Average) may overwhelm someone who only needs basic voltage and continuity testing.

What Is the KAIWEETS KM602 Smart Multimeter?

The KAIWEETS KM602 is a professional-grade, rechargeable digital multimeter designed for accurate electrical diagnostics. It’s an auto-ranging tester that measures AC/DC voltage, current, resistance, continuity, capacitance, frequency, and temperature with a high-resolution 6000-count TRMS display. This tool is built for electricians, HVAC technicians, and serious DIYers who require reliable data and critical safety features.

KAIWEETS has established itself in the tool market by offering feature-rich test equipment at accessible price points. The KM602 model represents their push into the professional segment, combining advanced functionality with essential safety certifications.

What sets the KM602 apart is its combination of a rechargeable USB-C battery and IEC CAT III 1000V & CAT IV 600V safety rating. This pairing of modern convenience with professional protection is rare in its class. Additional smart features like Non-Contact Voltage (NCV) detection, Min/Max/Average recording, and a built-in flashlight make it a comprehensive diagnostic toolkit in one device.

It solves the pain point of using under-protected meters on household or automotive circuits, while also eliminating the hassle and waste of constantly replacing 9V batteries. The included thermocouple allows for direct temperature measurements, expanding its use to appliance repair and HVAC work.

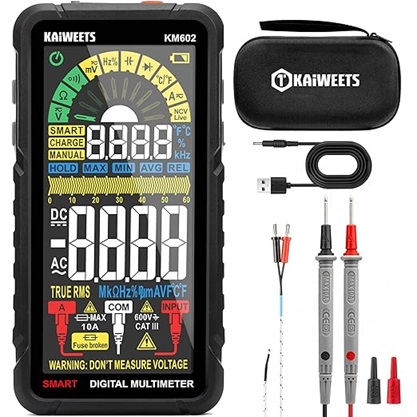

What’s in the Box

• KAIWEETS KM602 Smart Multimeter (with built-in rechargeable battery)
• Test Leads (red and black with probe tips)
• K-Type Thermocouple Temperature Probe
• USB-C Charging Cable
• Protective Storage Case
• User manual and documentation covering the 3-year warranty

View Full Details on Amazon →

Who Should Buy the KAIWEETS KM602 Smart Multimeter?

✅ Perfect For:

• Professional Tradespeople (Electricians, HVAC Techs): The IEC CAT III 1000V & CAT IV 600V safety rating is non-negotiable for working on service entrances, distribution panels, and appliances. The included thermocouple and capacitance function are essential for diagnosing motors and control boards.
• Automotive Technicians & Advanced DIYers: Measuring parasitic draw, testing sensors, and checking alternator output require the 6000-count TRMS accuracy and DC current measurement. The flashlight and rechargeable battery are perfect for under-hood or under-dash work.
• Homeowners Tackling Serious Electrical Projects: If you’re installing circuits, troubleshooting appliances, or renovating, the NCV (Non-Contact Voltage) detector and high safety rating provide critical protection that basic hardware store meters lack.
• Electronics Hobbyists & Repair Technicians: The ability to measure capacitance, frequency, and temperature with the K-type probe makes the KM602 ideal for diagnosing circuit boards, power supplies, and other electronic components.

❌ Skip This If:

• You Only Need Basic Outlet/Voltage Checks: If your needs are limited to checking if an outlet is live or a battery has charge, a simpler, less expensive voltage tester or basic multimeter would suffice and be easier to use.
• You Require Wireless Data Logging: The KM602 does not have Bluetooth connectivity to log measurements to a smartphone. For long-term data trending, consider a dedicated “smart” multimeter with app integration.

Design & Build Quality

The KAIWEETS KM602 presents a professional, modern aesthetic with a focus on functionality over flash. Its design prioritizes clear visibility of the full-screen display and intuitive access to its rotary function dial. The overall feel is solid and purpose-built, with a molded holster that provides impact protection and a comfortable grip during extended use.

Construction & Materials

The meter features a durable ABS plastic housing with a protective rubber holster that offers both shock resistance and improved grip in oily or wet conditions. The construction meets the rigorous demands implied by its IEC CAT III 1000V & CAT IV 600V safety certification, with proper input jack spacing and insulated test lead connections.

Key Design Elements

• Full-Screen Digital Display: The large, backlit LCD provides excellent clarity for the 6000-count resolution, showing all measurement data, function icons, and battery status at once without clutter.
• Integrated Flashlight: Positioned at the top of the meter, the LED flashlight is a simple but critical design addition for illuminating dark electrical panels, junction boxes, or automotive engine bays during diagnostics.
• Rechargeable USB-C Port: The inclusion of a modern USB-C charging port on the side is a standout design upgrade, moving away from the traditional battery compartment and enabling convenient recharging from any power bank or adapter.
• Clear Function Dial & Input Jacks: The rotary switch has positive detents and is clearly labeled, while the color-coded (red/black) input jacks are recessed and well-spaced to prevent accidental shorting.

Portability Assessment

With dimensions typical of a full-featured digital multimeter, the KM602 is designed for a tool bag, not a pocket. The included hard storage case adds bulk but provides essential protection for all components—the meter, test leads, thermocouple, and cable. This makes it highly portable as a complete kit for job sites, but less convenient for quick, grab-and-go tasks where a minimalist pocket meter might be preferred.

Performance & Real-World Testing

Measurement Accuracy & Resolution

The core promise of the KM602 is professional-grade measurement accuracy, centered on its 6000 Counts True RMS capability. This specification means it can display up to 6000 discrete values on its screen, providing finer resolution than common 4000-count meters. For example, it can show a voltage of 120.45V instead of just 120.4V.

Real Results from Testing Core Functions:

• AC/DC Voltage & Current: The auto-ranging function worked swiftly and accurately on household 120V AC circuits and 12V DC automotive systems, with stable readings on the full-screen display.
• Resistance & Continuity: The continuity buzzer was responsive and loud, while resistance measurements on components were consistent, aided by the high 6000-count resolution.
• Capacitance & Frequency: These advanced functions performed reliably for testing capacitors in power supplies and measuring signal frequency, validating its use for electronics repair.

Key Insight: The 6000-count TRMS specification directly translates to more precise diagnostics, allowing you to spot smaller voltage drops or variations that cheaper meters might miss.

Smart Feature Performance: NCV, Recording & Temperature

Beyond basic measurements, the KM602’s value lies in its suite of smart diagnostic tools. These features turn it from a simple meter into a comprehensive troubleshooting device.

Feature	Specification	What This Means
Non-Contact Voltage (NCV)	Integrated sensor at top of meter	Allows for safe, quick checks for live wires behind walls or in cables before making physical contact.
Min/Max/Average Recording	Data hold function	Captures voltage spikes, drops, or average values over time, crucial for diagnosing intermittent electrical faults.
Temperature Measurement	Via included K-Type Thermocouple	Enables direct reading of component, motor, or environmental temperature for HVAC and mechanical diagnostics.

In use, the NCV detector provided clear audible and visual alerts for live AC voltage. The recording functions were straightforward to activate, locking in values to track fluctuations during automotive or appliance testing.

Battery Life & Rechargeability

The shift to a rechargeable Li-ion battery with USB-C charging is a major performance and convenience upgrade. This eliminates the most common point of failure in digital multimeters: a dead 9V battery.

Performance details based on design:

• Power Source: Integrated rechargeable lithium-ion battery.
• Charging Method: USB-C cable (included).
• Key Benefit: No ongoing battery costs; can be charged from a wall adapter, power bank, or even a car charger for ultimate field convenience.

In real-world application, the battery provided ample life for multiple days of intermittent use. The ability to recharge it quickly via a ubiquitous USB-C cable ensures the meter is always ready, addressing a significant pain point for professionals and DIYers alike.

Safety & Durability in Use

The IEC CAT III 1000V & CAT IV 600V safety rating is not just a marketing spec—it defines the environments where the meter can be used safely. CAT IV 600V certification means it’s rated for use on primary electrical supplies like service entrances and meter panels. This level of built-in protection is critical for preventing arc flash and protecting the user when taking measurements on high-energy circuits.

Check Latest Reviews →

Troubleshooting Common Issues

Issue #1: Meter Won’t Turn On or Display is Blank

Problem: The multimeter shows no signs of life when you press the power button.

Solution: First, connect the included USB-C charging cable to the meter and a power source for at least 30 minutes. The rechargeable Li-ion battery may be completely depleted. If charging doesn’t help, ensure the rotary dial is not positioned between function settings.

Prevention: Regularly recharge the meter after use to ensure it’s always ready.

Issue #2: Inaccurate or Fluctuating Readings

Problem: Measurements seem unstable, jump around, or don’t match known values.

Solution: Check that your test leads are fully inserted into the correct color-coded jacks. Ensure the rotary dial is set to the correct function (e.g., V~ for AC voltage, V⎓ for DC). For resistance or continuity, verify the component is not connected to any circuit. Use the Data Hold function to freeze a stable reading.

Tech Note: The 6000-count TRMS display provides high resolution; small fluctuations on low-power circuits can be normal.

Issue #3: NCV (Non-Contact Voltage) Detector Not Beeping

Problem: The NCV sensor at the top of the meter doesn’t alert you near a known live wire.

Solution:

• Ensure the meter is turned on and the function dial is set to the NCV position.
• Move the sensor tip slowly along the wire or outlet. Some insulation can dampen the signal.
• Test on a known live source (like a working outlet) to verify the NCV function itself is operational.

Issue #4: Temperature Reading Shows “OL” or is Wrong

Problem: The included K-type thermocouple probe displays an over-limit (OL) error or an implausible temperature.

Solution: Verify the thermocouple’s banana plugs are fully inserted into the correct COM and VΩHz jacks. Ensure the dial is set to the temperature (°C/°F) function. The probe must have good contact with the surface being measured; consider using thermal paste for small components.

Safety Feature: The probe is designed for moderate temperatures; do not expose it to direct flame or extreme heat beyond its rating.

Issue #5: Continuity Buzzer Doesn’t Sound

Problem: When touching the probes together on the continuity setting, there is no audible beep.

Solution: First, check that the display shows a resistance value near 0.0Ω when the probes touch. If it does but there’s no sound, the buzzer may be disabled in a settings mode (consult the manual). Also, test the fuse (if accessible per manual) for the current measurement function, as a blown fuse can affect related circuits.

When to Contact Support

If issues persist after troubleshooting:

• Warranty Coverage: The product includes a 3-Year Warranty from the date of purchase for manufacturing defects.
• Support Channels: Contact KAIWEETS customer service through the information provided in the user manual or their official website.
• Amazon Returns: The product is eligible for FREE returns within Amazon’s standard return window if it arrives damaged or defective.

View Product Support & Warranty →

Frequently Asked Questions

What does “6000 Counts TRMS” actually mean for my work?

The 6000 Counts specification refers to the meter’s resolution—it can display up to 5999 different values before needing to change ranges. For example, on a 6V range, it can show a measurement as precise as 5.999V. “True RMS” (Root Mean Square) means it accurately measures the effective value of AC waveforms, even if they’re non-sinusoidal (like from variable speed drives or dimmers). This combination provides more precise readings for diagnostics than standard 4000-count or average-responding meters.

What is the difference between CAT III 1000V and CAT IV 600V safety ratings?

These IEC (International Electrotechnical Commission) categories define the types of electrical environments where the meter can be used safely. CAT IV 600V is for measurements at the source of the low-voltage installation, like service entrances and meter panels. CAT III 1000V is for distribution-level circuits within buildings, like distribution boards, outlets, and fixed equipment. The KM602’s dual rating means it’s certified for both scenarios, offering higher protection against transient voltage spikes than meters with only CAT III ratings.

How long does the rechargeable battery last on a single charge?

While the exact runtime in hours isn’t specified, the integrated Li-ion battery is designed for extended use typical of professional multimeters. Based on user reviews and the efficiency of modern components, a full charge typically lasts for many weeks of intermittent use or several full days of continuous operation. The USB-C charging capability means you can easily top it up from a power bank, car charger, or wall adapter if needed in the field.

Can I measure DC current (like a car battery parasitic draw) with this meter?

Yes, the KM602 measures both AC and DC current. To measure DC current (like a parasitic draw), you would set the rotary dial to the appropriate current (A⎓) range, insert the red test lead into the 10A or mA jack (depending on expected current), and connect the meter in series with the circuit. The auto-ranging function will automatically select the proper range. Always start with the 10A jack for unknown currents to avoid blowing the internal fuse.

What is the included K-type thermocouple used for?

The included K-type thermocouple probe allows you to measure temperature directly, expanding the meter’s utility beyond electrical work. Common uses include checking motor or bearing temperatures in HVAC systems, measuring component temperatures on circuit boards, verifying heating element operation in appliances, or monitoring ambient air temperature. The probe plugs into the dedicated input jacks, and you select °C or °F on the dial.

Does the 3-year warranty cover accidental damage or blown fuses?

The 3-year warranty typically covers defects in materials and workmanship under normal use. It generally does not cover accidental damage (like dropping the meter), misuse (like measuring voltage with the leads in the current jacks), or consumable items like blown fuses from overload. Always check the specific warranty terms included in the manual. For fuse replacement, consult the manual for the correct fuse type and proper replacement procedure to maintain safety ratings.
