Lithium Battery Voltage Chart

A lithium battery voltage chart shows the relationship between a battery’s voltage and its state of charge (SOC), helping users monitor performance and avoid overcharging or deep discharge.

Whether you’re working with 12V, 24V, or 48V lithium batteries, knowing how to read these voltage levels accurately is essential to protecting your battery’s lifespan and getting optimal performance from your power system.

Have you ever looked at your battery monitor and wondered what those voltage numbers really mean? You’re not alone. Understanding lithium battery voltage isn’t just technical—it’s practical. Whether you’re off-grid living, powering a solar setup, or managing a marine battery bank, voltage charts are vital tools that help ensure you’re not running on empty or damaging your cells.

Best Lithium Battery for Reliable Power Management

If you’re consulting a lithium battery voltage chart, chances are you either already own a lithium battery or you’re in the market for one. To help you make informed decisions, here are three top-performing lithium batteries and related accessories that align with what this article is all about—managing voltage, improving battery life, and optimizing performance.

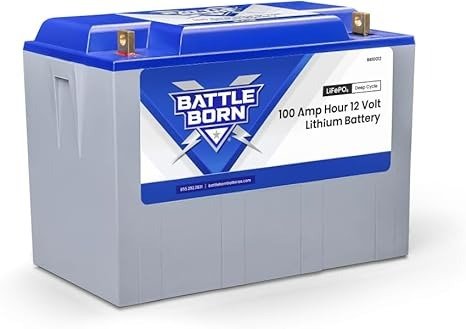

Battle Born LiFePO4 Deep Cycle Battery (12V 100Ah)

Battle Born is a reliable U.S.-based brand offering safe, long-lasting LiFePO4 batteries with built-in Battery Management Systems (BMS) for voltage regulation and protection.

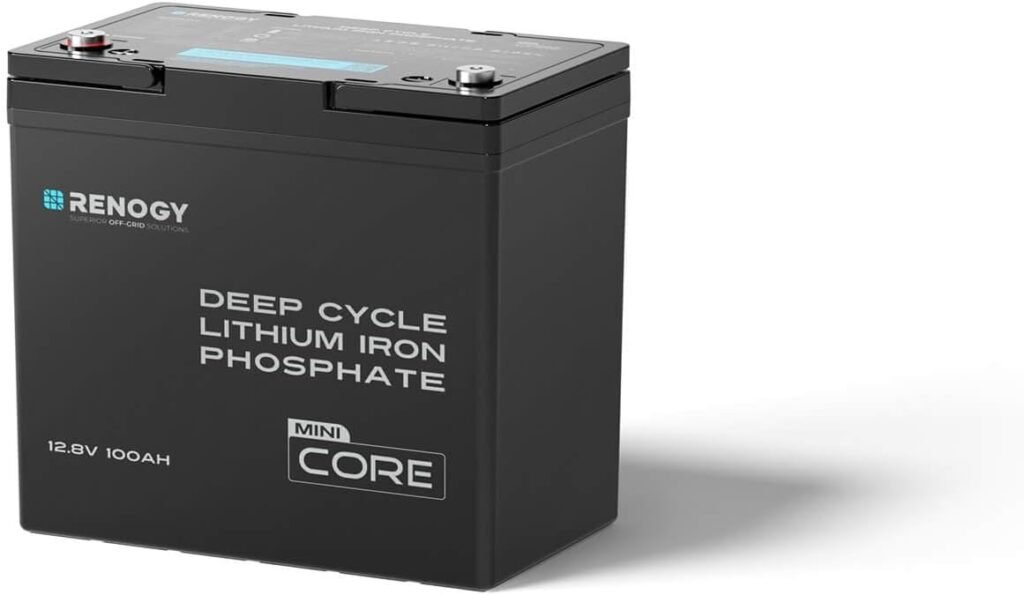

Renogy Smart Lithium Iron Phosphate Battery (12V 100Ah)

Renogy’s smart BMS and Bluetooth monitoring make it easy to track voltage and charge levels in real-time—ideal for RVs, solar, and off-grid systems.

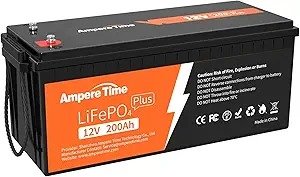

Ampere Time LiFePO4 Battery (12V 200Ah)

With over 4,000+ charge cycles and strong reviews, Ampere Time batteries offer higher capacity, stable voltage, and dependable performance in various applications.

Best Lithium Batteries Detailed Comparison

Parameter	Battle Born LiFePO4 12V 100Ah	Renogy Smart Lithium 12V 100Ah	Ampere Time LiFePO4 12V 200Ah
Chemistry	LiFePO4	LiFePO4	LiFePO4
Voltage	12V	12V	12V
Capacity	100Ah	100Ah	200Ah
Cycle Life	3,000-5,000 cycles	2,000-4,000 cycles	4,000+ cycles
BMS	Built-in Protection	Bluetooth Smart BMS	Built-in Protection
Weight	31 lbs	24.2 lbs	44.1 lbs
Terminal Type	M8 Threaded	M8 Threaded	M8 Threaded
Key Feature	US-Based Company	App Monitoring	High Capacity Value
Warranty	10-year limited	5-year limited	10-year limited
Best For	Marine, Off-Grid	RVs, Solar Systems	High-Capacity Needs
Check Price	Check Today’s Discounted Price →	Check Today’s Discounted Price →	Check Today’s Discounted

What Is a Lithium Battery Voltage Chart and Why Is It Important?

A lithium battery voltage chart is a reference tool that displays the voltage range of a lithium battery at various states of charge (SOC), typically from 0% to 100%. It helps users understand how full or depleted a battery is based solely on its voltage reading.

For example, a fully charged 12V LiFePO4 battery typically reads around 13.6–13.8 volts at rest, while a 50% charge level might show around 13.0 volts. When you see voltage drop below 12.0V, it’s a clear sign the battery is nearing empty and should be recharged soon.

Why This Chart Matters:

• Protects Battery Health
  Repeated overcharging or deep discharging can shorten a lithium battery’s lifespan. A voltage chart helps you avoid these extremes.
• Increases Safety
  Prevents over-discharge, which can damage cells and even trigger protection shutdowns.
• Essential for Off-Grid Systems
  If you’re using solar panels or living in an RV, you likely don’t have a constant charge source. Voltage charts help you plan energy usage wisely.

Knowing your battery’s voltage at different charge levels isn’t just technical—it’s practical. It helps you make smarter energy decisions, avoid premature battery failure, and ensure consistent performance across your devices or power systems.

Lithium Battery Voltage Chart (LiFePO4 – At Rest)

State of Charge (SOC)	12V Battery	24V Battery	48V Battery
100%	13.6 – 13.8V	27.2 – 27.6V	54.4 – 55.2V
99%	13.4V	26.8V	53.6V
90%	13.3V	26.6V	53.2V
80%	13.2V	26.4V	52.8V
70%	13.1V	26.2V	52.4V
60%	13.0V	26.0V	52.0V
50%	12.9V	25.8V	51.6V
40%	12.8V	25.6V	51.2V
30%	12.6V	25.2V	50.4V
20%	12.5V	25.0V	50.0V
10%	12.1 – 12.3V	24.2 – 24.6V	48.4 – 49.2V
0%	<12.0V	<24.0V	<48.0V

Notes:

• These readings should be taken at rest — wait 30 minutes after charging or discharging for an accurate voltage reading.
• These values apply to LiFePO4 (Lithium Iron Phosphate) batteries. Other lithium chemistries (e.g., NMC, LCO) have slightly different voltage profiles.
• Never rely solely on voltage under load or during charging to determine SOC.

This chart helps users instantly identify how charged their lithium battery is, preventing over-discharge and maximizing the lifespan of their investment.

What Does a Lithium Battery Voltage Chart Look Like?

A lithium battery voltage chart shows the relationship between the battery’s voltage and its state of charge (SOC). This is critical for understanding when to recharge, avoid over-discharge, and maintain optimal battery health.

Here’s the most commonly used lithium battery voltage chart, specifically for LiFePO4 (Lithium Iron Phosphate) batteries:

LiFePO4 Battery Voltage Chart (At Rest)

State of Charge (SOC)	12V Battery	24V Battery	48V Battery
100%	13.6 – 13.8V	27.2 – 27.6V	54.4 – 55.2V
99%	13.4V	26.8V	53.6V
90%	13.3V	26.6V	53.2V
80%	13.2V	26.4V	52.8V
70%	13.1V	26.2V	52.4V
60%	13.0V	26.0V	52.0V
50%	12.9V	25.8V	51.6V
40%	12.8V	25.6V	51.2V
30%	12.6V	25.2V	50.4V
20%	12.5V	25.0V	50.0V
10%	12.1 – 12.3V	24.2 – 24.6V	48.4 – 49.2V
0%	<12.0V	<24.0V	<48.0V

Pro Tips for Using the Chart Effectively

• Always test voltage when the battery is at rest, not during charging or discharging.
• Use a high-quality battery monitor or multimeter for best accuracy.
• Keep in mind: voltage only provides a general estimate — for precise SOC, use a smart BMS or battery monitor.

How Do You Measure Lithium Battery Voltage Accurately?

Measuring lithium battery voltage accurately is simple but only if you do it under the right conditions and with the right tools. Many people misread their battery’s state of charge by checking voltage while charging or discharging, which gives misleading results.

Tools You’ll Need:

• Digital Multimeter – For precise voltage readings We recommend the AstroAI Digital Multimeter for its accuracy and reliability
• Battery Monitoring System (BMS) – Often included with high-end batteries.
• Battery monitor – For continuous monitoring. The Victron Energy BMV-712 provides the most accurate state of charge tracking

Step-by-Step Guide:

1. Disconnect Load & Charger
   Let the battery rest for at least 30 minutes to stabilize the voltage.
2. Set Your Multimeter to DC Voltage
   Choose a range that includes your battery’s voltage. For a 12V battery, set it to 20V DC.
3. Connect Multimeter Probes
   • Red to the positive (+) terminal
   • Black to the negative (–) terminal
4. Read the Display
   Compare the voltage to the chart you’ve seen earlier to estimate the SOC.

Why “At Rest” Voltage Is Crucial:

Voltage fluctuates during charging and discharging due to resistance and chemical reactions inside the cells. That’s why a resting voltage reading is the only reliable snapshot of your battery’s actual charge level.

Why Is Voltage Monitoring Important for Lithium Batteries?

Voltage monitoring is essential because lithium batteries don’t give obvious warning signs before they’re damaged or depleted. Unlike lead-acid batteries, which slowly degrade and show reduced performance, lithium batteries can drop off suddenly if mismanaged.

The Importance of Monitoring Voltage:

• Prevents Over-Discharge:
  Lithium batteries can be permanently damaged if voltage drops below safe limits (e.g., <10V for 12V LiFePO4).
• Avoids Overcharging:
  Charging beyond 14.6V for a 12V lithium battery can degrade cells or trigger the BMS to shut down.
• Extends Battery Life:
  Maintaining voltage in the mid-range (around 40–80% SOC) helps prolong the usable lifespan of lithium batteries.
• Improves System Efficiency:
  Especially in solar or RV setups, voltage monitoring helps balance loads and manage charge controllers effectively.

How to Monitor:

• Basic Multimeter Readings:
  Ideal for periodic checks when the battery is idle.
• Integrated Battery Monitors:
  These track voltage, current, and SOC in real time, often with smartphone connectivity.
• Battery Management Systems (BMS):
  Built into many lithium batteries, a BMS can trigger alarms, cutoffs, or system shutdowns based on voltage limits.

Real-World Tip:

If you’re using lithium batteries in off-grid systems or critical applications, don’t rely on guesswork. Use smart monitors that alert you before things go wrong.

How Does Lithium Battery Voltage Affect Performance and Lifespan?

Lithium battery voltage directly impacts how much usable power you get—and how long your battery lasts. Understanding this relationship helps users avoid practices that degrade battery health and shorten lifespan.

Performance vs. Voltage

As voltage drops, the power available to your devices also drops. If you use an inverter or any voltage-sensitive electronics, falling below a certain voltage may cause:

• Inverters to shut off unexpectedly
• Dimming lights or slow-running appliances
• Reduced motor performance in electric vehicles or tools

For most 12V lithium batteries:

• Full performance is delivered between 13.2V and 12.8V
• Reduced performance starts below 12.5V
• Cut-off risk begins below 12.0V

Voltage and Battery Lifespan

High or low voltages, especially if sustained, can permanently degrade lithium cells:

• Overcharging above 14.6V stresses the battery chemistry.
• Over-discharging below 10V can cause irreversible damage.
• Daily deep cycling (0–100%) reduces lifespan compared to shallow cycling (30–80%).

Best Practices to Maximize Life:

• Keep your battery between 20% and 80% SOC for regular use.
• Charge slowly and avoid pushing to 100% unless necessary.
• Use a smart charger or solar controller designed for lithium profiles.

What’s the Best Way to Maintain Lithium Battery Voltage Over Time?

The best way to maintain lithium battery voltage is through consistent charging habits, proper storage, and protective hardware. When maintained well, lithium batteries can last over 10 years with minimal performance loss.

Charging Habits Matter

• Use Lithium-Specific Chargers:
  We recommend the NOCO Genius10 Lithium Charger for optimal lithium battery charging and maintenance.
• Avoid Trickle Charging:
  Unlike lead-acid batteries, lithium batteries don’t need to stay on float charge. It can actually harm them.
• Charge in the Safe Range:
  Keep voltage within 13.0V–14.4V for a 12V LiFePO4 battery during charging cycles.

Temperature and Storage Tips

• Store at 50% Charge for Long Periods:
  If you’re not using your battery for months, keep it around 12.8V–13.0V.
• Avoid Extreme Temperatures:
  Store batteries between 10°C and 25°C (50°F–77°F) for best results.
• Cold Charging Protection:
  Never charge a lithium battery below 0°C (32°F) unless it has a built-in heater or low-temp cutoff.

Use a Battery Management System (BMS)

A BMS will:

• Monitor voltage and shut down charging/discharging at unsafe levels
• Balance individual cells to avoid over- or under-voltage
• Protect against temperature extremes and short circuits

Recap:

• Regular monitoring
• Safe charge/discharge levels
• Smart storage
• A reliable BMS

These simple strategies ensure your lithium battery maintains a stable, healthy voltage and lasts for thousands of cycles.

Conclusion

Understanding lithium battery voltage isn’t just about numbers—it’s the key to safe, efficient, and long-lasting battery use. Whether you’re powering a solar setup, an RV, or a home backup system, knowing what each voltage level means can protect your investment and give you peace of mind.

By applying what you’ve learned, you’ll avoid the most common mistakes and get more cycles and better performance from your lithium batteries.

Take control of your power system today—don’t just charge your battery, understand it.

Frequently Asked Questions About Lithium Battery Voltage Charts

What voltage is a 12V lithium battery when fully charged?

A fully charged 12V lithium battery (LiFePO4) typically reads between 13.4V and 14.6V. Some smart chargers stop at 14.4V to extend lifespan. Unlike lead-acid, it maintains voltage until nearly empty.

What is the cut-off voltage for a lithium battery?

The typical cut-off voltage is around 10.0V for a 12V battery. Below this, the BMS will likely shut it down to prevent damage. Going lower could permanently harm the cells.

Can I use a lead-acid charger for lithium batteries?

It’s not recommended. Lead-acid chargers may not reach the full charging voltage for lithium (14.4V–14.6V), or they might trickle charge after full—both are bad for lithium.

Always use a lithium-specific charger like the NOCO Genius10 for optimal performance and safety

How often should I check lithium battery voltage?

Check at least once a week if the battery is in frequent use. For solar setups or RVs, consider real-time monitoring via Bluetooth or a smart display.

For frequent use, consider a battery monitor like the Victron BMV-712 for continuous tracking.

Why does voltage drop suddenly at the end of discharge?

Lithium batteries hold a steady voltage through most of the discharge. Once they hit around 20% SOC, voltage drops rapidly. That’s why voltage alone isn’t the most accurate SOC indicator.

What’s the best voltage range to maintain long-term battery health?

Keep voltage between 12.6V and 13.4V for a 12V lithium battery during most use. Charging to 100% is fine occasionally but not daily.
