Resting Voltage of Car Battery Chart

A weak or dying battery can leave you stranded, but most drivers don’t check their battery’s health until it’s too late. The key to avoiding this nightmare? Understanding your car battery’s resting voltage—a simple yet critical measurement that reveals its true condition.

You might think a battery is fine if your car starts, but voltage readings tell the real story. In this guide, you’ll unlock the secrets of a resting voltage chart, learn how to test your battery like a pro, and discover exactly when to replace it—before it fails you.

Best Multimeters for Testing Car Battery Voltage

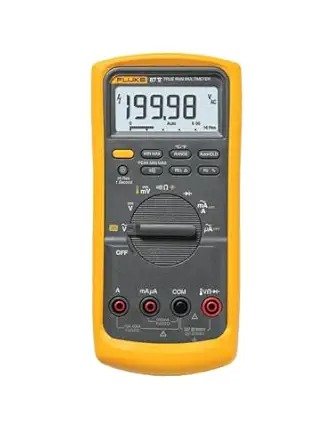

Fluke 87V Digital Multimeter

The Fluke 87V is a top-tier multimeter trusted by professionals for its precision and durability. It measures resting voltage with 0.05% accuracy and includes a Min/Max function to track fluctuations. Its rugged design and True RMS technology make it ideal for automotive diagnostics.

Klein Tools MM600 Auto-Ranging Multimeter

For a budget-friendly yet reliable option, the Klein Tools MM600 delivers fast, accurate readings with auto-ranging capability. It features a large backlit display and a built-in thermometer—perfect for checking battery health in cold weather. Its sturdy construction ensures long-term use.

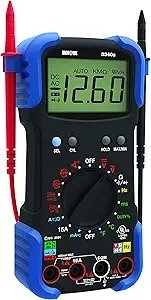

Innova 3340 Automotive Digital Multimeter

The Innova 3340 is tailored for car owners, offering a simple interface with essential functions like voltage, resistance, and continuity testing. Its compact design and included test leads make it a great choice for quick, on-the-go battery checks without sacrificing accuracy.

Resting Voltage: What Your Car Battery’s Numbers Really Mean

Resting voltage is the electrical potential of your car battery when it’s fully disconnected from any load (like the alternator or accessories) and has been sitting undisturbed for at least 12 hours.

Unlike cranking voltage (measured during engine start), resting voltage reveals the battery’s true state of charge without external factors skewing the reading. This makes it the most reliable indicator of battery health.

Here is a 12V Car Battery Resting Voltage Chart

SOC (%)	Voltage (V)	Battery Condition
100%	12.6–12.8V	Fully charged
90%	12.5V	Excellent
80%	12.42V	Healthy
70%	12.32V	Usable
60%	12.20V	Needs charging soon
50%	12.06V	Half charged
40%	11.90V	Low
30%	11.75V	Very low
20%	11.58V	Critical
10%	11.31V	Near dead
0%	≤10.5V	Discharged / Bad cell

Note:  For accurate readings, let the battery rest for 6–8 hours after charging or driving. Measuring immediately after use will give a falsely elevated voltage.

How Resting Voltage Correlates with Battery Charge

A healthy 12V car battery should show the following resting voltage readings:

• 12.6V–12.8V: Fully charged (100% capacity)
• 12.4V: 80% charged (acceptable but warrants monitoring)
• 12.06V: 50% charged (risk of sulfation; recharge immediately)
• Below 12.0V: Severely discharged (potential permanent damage)

For example, if your battery reads 12.3V after overnight rest, it’s only holding ~60% charge—a sign it’s either aging or has a parasitic drain.

Why Temperature Matters

Voltage readings fluctuate with temperature. Cold weather (below 32°F/0°C) can temporarily reduce resting voltage by 0.2V–0.3V, while extreme heat accelerates internal discharge. Always check your battery’s voltage at room temperature for accurate comparisons to the chart.

Common Misconceptions

Many drivers assume a battery is “fine” if their car starts, but voltage drops during cranking don’t reveal long-term health. A battery might show 12.4V at rest but fail under load due to internal resistance—a hidden issue only a load test can diagnose.

Pro Tip: For the most accurate reading, disconnect the negative terminal before testing. Surface charge from recent driving can artificially inflate voltage by 0.5V or more.

How to Accurately Measure Your Car Battery’s Resting Voltage

Proper voltage testing requires more than just connecting a multimeter to your battery terminals. Following the correct procedure ensures you get reliable readings that truly reflect your battery’s health status.

Step-by-Step Testing Process

1. Preparation (Critical First Step)
Park your car on level ground and turn off all electrical loads (lights, radio, etc.). For most accurate results, let the battery rest undisturbed for 12-24 hours after driving. This dissipates any surface charge that could skew readings.

2. Safety Precautions

• Wear protective gloves and eyewear
• Remove metal jewelry that could cause shorts
• Ensure good ventilation (batteries emit explosive gases)

3. Proper Multimeter Setup
Set your multimeter to DC voltage (20V range) for 12V batteries. The black probe connects to the negative terminal, red to positive. Ensure clean terminal connections – corrosion can cause false low readings.

Interpreting Your Results

Take measurements at three different times:

1. Immediately after connecting
2. After 5 minutes
3. After 15 minutes

A healthy battery will maintain stable voltage (±0.1V). If readings drop significantly, this indicates capacity loss.

Troubleshooting Common Issues

• Problem: Fluctuating readings
  Solution: Check for loose connections or try cleaning terminals with baking soda solution
• Problem: Voltage below 12.4V after full charge
  Solution: Perform a load test – the battery may need replacement

Professional Tip: For modern cars with complex electronics, use a memory saver before disconnecting the battery to prevent system resets.

Advanced Battery Analysis: Understanding Voltage Patterns and Long-Term Health

Beyond simple voltage readings, interpreting patterns over time provides deeper insight into your battery’s condition and remaining lifespan. Professional technicians use these advanced analysis techniques to predict failures before they occur.

Voltage Behavior Under Different Conditions

Condition	Expected Voltage	Warning Signs
After full charge (rested 12+ hours)	12.6V-12.8V	Below 12.4V indicates capacity loss
During engine cranking	9.6V minimum	Drops below 9V = weak battery
With key on/engine off	12.2V-12.4V	Below 12V suggests parasitic drain

The Science of Battery Aging

As lead-acid batteries age, three key degradation processes occur:

• Sulfation: Lead sulfate crystals form permanently when voltage stays below 12.4V for extended periods
• Grid Corrosion: Positive plate deterioration increases internal resistance
• Electrolyte Stratification: Acid concentration varies between cell layers

These processes manifest in specific voltage patterns. For example, a battery that charges to 12.8V but drops to 12.2V overnight likely has severe sulfation.

Advanced Diagnostic Techniques

Voltage Recovery Test:

1. Measure resting voltage (V1)
2. Apply 15A load for 15 seconds
3. Remove load and measure recovery voltage (V2)

A healthy battery should recover to within 0.1V of V1. Differences >0.3V indicate capacity loss.

• Professional Insight: Modern AGM batteries show slightly higher voltages (12.8V-13.0V when healthy) due to different electrolyte absorption. Always check manufacturer specifications for exact expected values.
• Common Mistake: Assuming equal voltage across all cells. Use a hydrometer to check individual cell voltages if possible – variations >0.2V between cells indicate imbalance.

Optimizing Battery Performance and Extending Lifespan

Proper maintenance based on voltage monitoring can significantly extend your car battery’s service life. This section reveals professional-grade techniques to maximize performance between replacements.

Charging Strategies Based on Voltage Readings

Different voltage levels require specific charging approaches:

• 12.6V+: Maintenance charge (2-4 hours at 13.8V)
• 12.4V-12.6V: Standard charge (6-8 hours at 14.4V)
• Below 12.4V: Deep recovery charge (12+ hours with desulfation pulses)

Smart chargers with voltage-sensing capabilities automatically adjust these parameters, but manual chargers require careful monitoring.

Preventative Maintenance Schedule

Implement this voltage-based maintenance routine:

1. Weekly: Check resting voltage (before first start of the day)
2. Monthly: Clean terminals and measure voltage drop during cranking
3. Seasonally: Perform full charge cycle and equalization (for flooded batteries)

Batteries in extreme climates may need twice-frequency checks.

Advanced Preservation Techniques

For vehicles in storage:

• Maintain voltage above 12.4V using a float charger
• Disconnect negative terminal if storing >30 days
• For AGM batteries, use specific maintenance chargers (13.2V-13.8V range)

Professional Tip: Store batteries on wooden surfaces – concrete floors can accelerate discharge through thermal transfer.

Safety Considerations

When working with batteries:

• Always verify voltage before servicing (sparks near discharged batteries can cause explosions)
• Use insulated tools when voltage exceeds 12.6V
• Never charge frozen batteries (indicated by bulging case or voltage below 10V in cold weather)

Following these protocols based on voltage monitoring can typically extend battery life by 30-50%.

Battery Voltage Economics: Cost Analysis and Future Trends

Understanding the financial implications of battery voltage management can lead to significant long-term savings. This section provides a detailed cost-benefit analysis and explores emerging battery technologies.

Cost Implications of Voltage Maintenance

Voltage Maintenance Practice	Initial Cost	Potential Savings	ROI Period
Smart battery maintainer	$50-$150	Extends battery life by 2-3 years ($100-$300)	6-18 months
Monthly voltage checks	Time investment (15 mins/month)	Prevents 80% of unexpected failures	Immediate
Professional load testing	$20-$50/test	Identifies weak batteries before they strand you	Single incident prevention

Environmental Impact Considerations

Proper voltage maintenance significantly reduces environmental harm:

• Each extended battery year prevents 18kg of lead waste
• Maintaining optimal voltage reduces charge cycles by 40%, lowering energy consumption
• Preventing deep discharges minimizes sulfuric acid contamination risks

Modern battery recycling recovers 99% of lead but proper maintenance reduces recycling frequency.

Emerging Technologies and Voltage Standards

The automotive industry is evolving with new battery technologies:

• Lithium-ion replacements: Higher resting voltages (13.2V-13.6V) with different monitoring requirements
• 48V mild-hybrid systems: Require specialized multimeters and new voltage benchmarks
• Smart battery sensors: Provide real-time voltage tracking via vehicle telematics

These systems will require updated voltage reference charts and new maintenance protocols by 2025.

Professional Recommendation

Invest in a quality battery monitoring system if you:

• Own multiple vehicles
• Live in extreme climates
• Use start-stop technology
• Keep vehicles long-term (5+ years)

The $100-$200 investment typically pays for itself within two years through extended battery life and prevented towing costs.

Advanced Voltage Diagnostics: Interpreting Complex Battery Behavior

Moving beyond basic voltage readings, this section explores sophisticated diagnostic techniques that reveal hidden battery issues and system interactions that affect performance.

Voltage Drop Analysis During Operation

Performing dynamic voltage tests provides critical insights:

• Start-up voltage drop: Healthy systems should maintain >9.6V during cranking. Drops below 9V indicate:
  • Weak battery cells (if voltage recovers slowly)
  • Starter motor issues (if voltage drops suddenly)
  • Poor connections (if voltage varies between tests)
• Charging system analysis: Measure voltage at 2000 RPM – should stabilize between 13.8V-14.4V for most vehicles

Parasitic Drain Detection Methodology

Follow this professional procedure to identify abnormal drains:

1. Fully charge battery and record resting voltage (V1)
2. Disconnect negative terminal and connect multimeter in series
3. Measure current draw after 45 minutes (vehicle sleep mode)
4. Compare to manufacturer specifications (typically 25-50mA max)

Excessive drain will cause resting voltage to drop 0.1V-0.3V overnight.

Battery Management System Integration

Modern vehicles with smart charging systems require special consideration:

• Voltage readings may appear artificially high due to adaptive charging algorithms
• Some systems intentionally maintain lower voltages (12.3V-12.5V) for fuel efficiency
• Always consult service manual for brand-specific voltage specifications

Professional scan tools can access actual battery state-of-charge percentages that are more reliable than voltage alone in these systems.

Special Case: Stop-Start Vehicles

These demanding systems require enhanced AGM batteries with unique voltage characteristics:

• Resting voltage typically higher (12.8V-13.0V when healthy)
• Frequent shallow discharges require monthly equalization charges
• Special battery sensors must be reset after replacement

Failure to maintain proper voltage in these systems can lead to premature starter failure.

Expert Tip: When diagnosing intermittent issues, log voltage over 24+ hours using a data-recording multimeter to catch transient problems.

Mastering Battery Voltage Management: Professional Best Practices

This final section distills professional-grade techniques for comprehensive battery voltage management, combining all previous concepts into an actionable maintenance strategy.

Comprehensive Voltage Monitoring Protocol

Timeframe	Test Type	Acceptable Range	Corrective Action
Daily (Key-off)	Resting Voltage	12.4V-12.8V	Charge if below 12.4V
Weekly	Surface Charge Dissipation	<0.2V drop in 1 hour	Test for parasitic drain
Monthly	Load Test Voltage	>9.6V during cranking	Replace if below 9V
Seasonally	Temperature-Adjusted Voltage	±0.3V compensation	Adjust charging voltage

Advanced Performance Optimization

Implement these professional techniques for maximum battery life:

• Voltage Equalization: For flooded batteries, apply controlled overcharge (15.5V for 2-3 hours) quarterly to balance cells
• Pulse Maintenance: Use smart chargers with desulfation pulses monthly for batteries showing voltage depression
• Terminal Voltage Mapping: Create baseline voltage profiles for your specific vehicle to detect subtle changes

Risk Mitigation Framework

Develop a proactive strategy addressing these critical failure points:

1. Voltage Spikes: Install surge protection for vehicles with sensitive electronics
2. Deep Discharge: Implement automatic disconnect at 11.8V for stored vehicles
3. Thermal Runaway: Monitor voltage-temperature correlation (abnormal rises indicate danger)

Validation and Quality Assurance

Establish these verification procedures:

• Cross-validate multimeter readings with hydrometer tests (for serviceable batteries)
• Document voltage trends over 6-12 months to establish degradation patterns
• Compare against manufacturer’s dynamic voltage specifications for your specific battery model

Professional Insight: Top-tier shops use statistical voltage analysis across vehicle fleets to predict failure windows with 90% accuracy, typically replacing batteries at 70% of estimated lifespan for risk avoidance.

Conclusion: Mastering Your Battery’s Health Through Voltage Monitoring

Understanding your car battery’s resting voltage is the most reliable way to assess its health and prevent unexpected failures. As we’ve explored, a proper voltage reading between 12.6V-12.8V indicates full charge, while values below 12.4V signal the need for immediate attention. By implementing regular voltage checks, following our testing methodology, and applying the maintenance strategies outlined, you can extend your battery’s lifespan by years while avoiding costly breakdowns.

Remember – voltage tells the true story of your battery’s condition long before starting problems appear. Start monitoring your battery voltage today using the techniques and tools we’ve recommended, and you’ll gain peace of mind knowing exactly when your battery needs service or replacement. Your car’s reliability depends on this simple but critical maintenance practice.

Frequently Asked Questions About Car Battery Resting Voltage

What exactly is resting voltage and why is it important?

Resting voltage is your battery’s electrical potential when completely at rest – no charging or discharging for at least 12 hours. Unlike surface voltage readings taken immediately after driving, resting voltage reveals the battery’s true state of charge and health. It’s critical because it helps identify capacity loss before starting problems occur. For example, a battery showing 12.3V at rest has already lost about 40% of its capacity, even if it still starts your car.

How often should I check my battery’s resting voltage?

For optimal maintenance, test monthly and before long trips. In extreme climates (hot or cold), test bi-weekly. Modern batteries can lose 15-20% of their charge per month through natural discharge. Regular voltage checks help catch issues early – a pattern of declining voltage (e.g., 12.7V to 12.5V over three months) indicates developing problems before failure occurs.

Why does my battery show different voltages at different times?

Voltage varies due to several factors:

• Temperature (0.01V change per °F)
• Recent charging/discharging activity
• Battery age and sulfation level
• Parasitic electrical drains

For accurate comparisons, always measure under identical conditions – ideally in the morning before starting the car, after the battery has rested overnight at similar ambient temperatures.

Can I test resting voltage without disconnecting the battery?

While possible, readings may be inaccurate due to vehicle parasitic drains (typically 20-50mA). For precise measurements:

1. Disconnect negative terminal
2. Wait 12-24 hours
3. Measure directly at terminals

If you must test connected, note that readings 0.1V-0.3V lower than true resting voltage are common due to these small constant drains.

What’s the difference between resting voltage and cranking voltage?

Resting voltage (12.6V ideal) shows storage capacity, while cranking voltage (minimum 9.6V) demonstrates power delivery under load. A battery might show good resting voltage but fail during cranking due to high internal resistance. Always test both – healthy batteries maintain voltage within specifications for both metrics.

How does temperature affect my voltage readings?

Temperature significantly impacts voltage:

• Below freezing: Add 0.01V per °F below 32°F
• Above 80°F: Subtract 0.01V per °F above 80°F

A battery showing 12.4V at 20°F is actually at ~12.6V when temperature-compensated. Always note ambient temperature when recording measurements for accurate comparisons over time.

When should I replace my battery based on voltage readings?

Consider replacement when:

• Resting voltage below 12.4V after full charge
• Voltage drops >0.3V overnight
• Cranking voltage below 9V
• Required weekly recharging

These symptoms indicate substantial capacity loss – typically when batteries reach 60-70% of original capacity. Waiting until failure risks being stranded.

Can I restore a battery that shows low resting voltage?

Some recovery is possible if caught early:

• For mild sulfation (12.2V-12.4V): Use desulfating charger for 24-48 hours
• For discharged batteries (below 12V): Slow charge at 2-4 amps

However, batteries consistently below 12V or over 3 years old often have permanent damage. Deeply discharged batteries (below 10.5V) should be professionally evaluated before attempting recovery.
