Nominal voltage is the standard voltage a battery is designed to deliver under normal conditions. It’s not the maximum or minimum—just the average. Understanding this helps you pick the right battery.
Many assume voltage stays constant, but it fluctuates with charge levels and load. Nominal voltage simplifies comparisons, but real-world performance varies. You need deeper insights.
Batteries power everything from phones to electric cars. Choosing the wrong voltage risks damage or inefficiency.
Best Batteries for Understanding Nominal Voltage

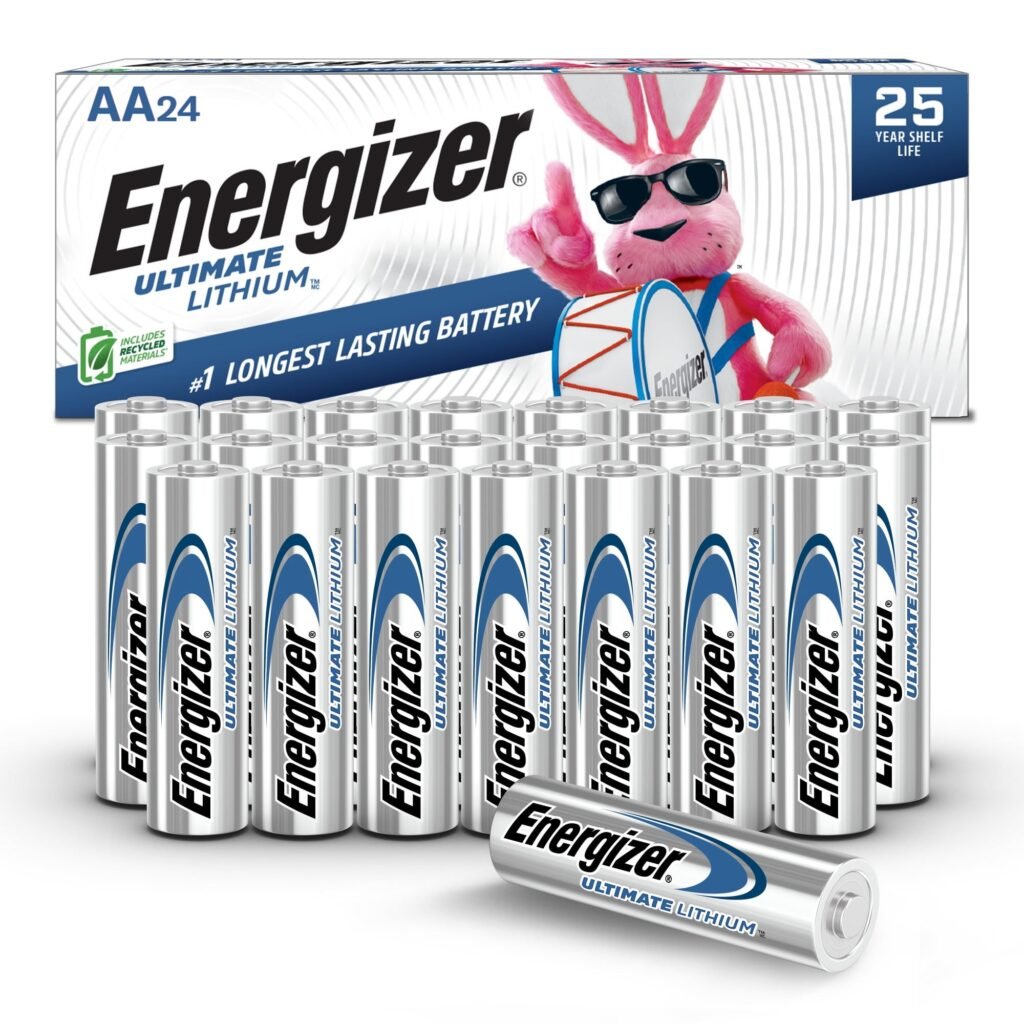

Energizer Ultimate Lithium AA Batteries
These lithium AA batteries maintain a stable nominal voltage of 1.5V, making them ideal for high-drain devices like cameras and flashlights. Their long shelf life (20 years) and leak-proof design ensure reliability.
Duracell Coppertop Duralock AAA Batteries
With a consistent 1.5V nominal voltage, these alkaline AAA batteries deliver dependable power for remotes, toys, and medical devices. Duracell’s Duralock technology prevents energy loss over time.

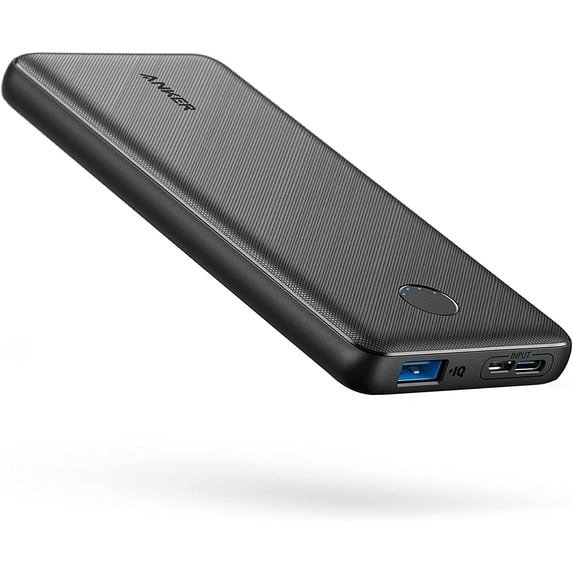

Anker 321 Power Bank (PowerCore 10K)
This portable charger has a nominal voltage of 5V, perfect for smartphones and tablets. Its 10,000mAh capacity and fast-charging capability make it a must-have for travelers and tech users.
Nominal Voltage: Why It Matters for Battery Performance
Nominal voltage is the standard reference voltage a battery is designed to operate at under normal conditions. Unlike actual voltage, which fluctuates based on charge level and load, nominal voltage provides a simplified benchmark for comparison.
For example, a standard alkaline AA battery has a nominal voltage of 1.5V, but its actual voltage can range from 1.6V when fully charged to 1.0V when nearly depleted.
How Nominal Voltage Differs from Actual Voltage
Battery voltage isn’t static—it changes depending on usage and environmental factors. Here’s how nominal voltage compares to real-world performance:
- Under Load: When powering a device, voltage drops due to internal resistance. A 9V battery may read 9.6V when idle but drop to 7V under high drain.
- Charge State: Lithium-ion batteries have a nominal voltage of 3.7V, but their actual voltage ranges from 4.2V (fully charged) to 3.0V (discharged).
- Temperature Effects: Cold weather reduces voltage output, while heat can temporarily increase it.
Why Manufacturers Use Nominal Voltage
Nominal voltage simplifies battery selection by providing a consistent reference point. For instance:
- Device Compatibility: Electronics are designed around nominal voltage. Using a 12V device with a 9V battery risks underperformance.
- Battery Chemistry: Lead-acid batteries (12V nominal) and LiFePO4 (3.2V nominal) have different voltage curves, but nominal values help standardize comparisons.
Common Misconception: Many assume nominal voltage is the minimum or maximum voltage, but it’s an average. Always check a battery’s full voltage range for critical applications.
Practical Implications for Users
Knowing nominal voltage helps you:
- Choose the Right Battery: Replacing a 3.7V Li-ion battery with a 3.2V LiFePO4 may cause compatibility issues.
- Extend Battery Life: Avoid discharging below a battery’s safe cutoff voltage (e.g., 2.5V for Li-ion) to prevent damage.
- Troubleshoot Issues: If a device isn’t working, measuring actual voltage can reveal if the battery is depleted despite showing nominal voltage when idle.
Example: A drone using a 7.4V (2-cell LiPo) battery won’t take off if voltage drops below 6.0V under load, even if the nominal voltage suggests sufficient power.
How to Measure and Interpret Battery Voltage Correctly
Understanding nominal voltage is just the first step—knowing how to measure and interpret actual voltage is crucial for proper battery maintenance and device performance.
Step-by-Step Guide to Measuring Battery Voltage
1. Choose the Right Multimeter: Use a digital multimeter with at least 0.1V resolution. Analog meters lack precision for modern battery testing.
2. Set Up Properly:
- Turn the dial to DC voltage mode (V—)
- Select a range higher than expected voltage (e.g., 20V scale for 12V batteries)
- Connect red probe to positive (+), black to negative (-) terminals
3. Take Measurements:
- Open Circuit Voltage: Measure with no load to assess charge state
- Under Load Voltage: Measure while powering device to check real performance
Interpreting Your Voltage Readings
Compare measurements to these industry standards:
| Battery Type | Nominal Voltage | Healthy Range | Critical Low |
|---|---|---|---|
| Alkaline AA | 1.5V | 1.1-1.6V | ≤0.9V |
| Li-ion | 3.7V | 3.2-4.2V | ≤2.5V |
| Lead Acid | 12V | 11.4-12.7V | ≤10.5V |
Professional Troubleshooting Tips
Voltage Drop Issues: If voltage plummets under load:
- Check for corroded contacts (clean with isopropyl alcohol)
- Test individual cells in battery packs (one weak cell affects entire pack)
- Consider internal resistance (higher resistance = greater voltage drop)
False Voltage Readings: A battery showing nominal voltage at rest but failing under load often indicates:
- Sulfation in lead-acid batteries
- Lithium-ion battery aging (reduced capacity)
- Damaged internal connections
Real-World Example: A 12V car battery reading 12.4V at rest but dropping to 8V when starting indicates severe sulfation or cell failure—requiring immediate replacement despite the “normal” resting voltage.
For critical applications, always measure voltage both at rest and under operational load to get the complete picture of battery health.
Advanced Battery Voltage Dynamics: Chemistry, Temperature, and Aging Effects
Beyond basic voltage measurements, understanding how battery chemistry, environmental factors, and aging impact voltage performance is crucial for optimizing battery life and performance.
How Battery Chemistry Affects Voltage Characteristics
Different battery chemistries exhibit unique voltage profiles due to their electrochemical reactions:
| Chemistry | Nominal Voltage | Discharge Curve | Key Characteristics |
|---|---|---|---|
| Alkaline | 1.5V | Gradual decline | Steady voltage until ~80% discharge, then sharp drop |
| Li-ion | 3.7V | Flat plateau | Maintains ~3.7V for 80% of discharge cycle |
| NiMH | 1.2V | Gentle slope | Voltage drops linearly with state of charge |
Temperature’s Critical Impact on Voltage
Temperature affects voltage through three primary mechanisms:
- Chemical Reaction Rates: Cold slows reactions, reducing voltage output by 10-20% at 0°C
- Internal Resistance: Increases in cold, causing greater voltage drop under load
- Self-Discharge: Accelerates in heat, leading to faster voltage decay
Practical Example: A smartphone battery showing 3.8V at room temperature might drop to 3.5V in freezing conditions, potentially triggering premature “low battery” warnings despite having significant charge remaining.
Voltage Degradation Over Time
As batteries age, their voltage characteristics change due to:
- Electrode Degradation: Active material loss reduces maximum voltage capacity
- Electrolyte Breakdown: Increases internal resistance, causing greater voltage sag
- Cycle Aging: Each charge/discharge cycle slightly alters voltage profile
Expert Tip: Track your battery’s voltage recovery time after load removal. A healthy battery should return to near-open-circuit voltage within minutes. Slow recovery indicates advanced aging.
Common Voltage-Related Mistakes to Avoid
- Mixing Battery Types: Combining different chemistries (e.g., alkaline with NiMH) in series creates dangerous voltage imbalances
- Overlooking Voltage Sag: Assuming a battery is dead when voltage only drops under load (may just need cleaning or warming)
- Ignoring Temperature Compensation: Not adjusting voltage expectations for extreme environments leads to incorrect state-of-charge estimates
Voltage Matching and System Integration: Best Practices for Optimal Performance
Proper voltage matching is critical when integrating batteries with electronic systems.
Voltage Compatibility Principles
When matching batteries to devices, consider these three key factors:
- Nominal Voltage Matching: The battery’s nominal voltage should match the device’s designed input voltage (±5% tolerance for most electronics)
- Operating Voltage Range: Verify the device can handle the battery’s full voltage range (e.g., 3.0-4.2V for Li-ion)
- Voltage Sag Characteristics: Account for expected voltage drop under maximum load conditions
Example: A 12V DC motor requiring 10A needs a battery that maintains ≥12V under load – a lead-acid battery might sag to 11V, while a LiFePO4 stays at 12.8V.
Series and Parallel Configurations
Battery arrangements significantly affect system voltage:
| Configuration | Voltage Effect | Capacity Effect | Best Use Cases |
|---|---|---|---|
| Series | Additive (2x 3.7V = 7.4V) | Same as single cell | Higher voltage requirements |
| Parallel | Same as single cell | Additive (2x 3000mAh = 6000mAh) | Higher capacity needs |
Advanced Voltage Regulation Techniques
For sensitive electronics, implement these voltage stabilization methods:
- Buck-Boost Converters: Maintain constant output voltage regardless of input fluctuations
- Low Dropout Regulators (LDOs): Provide clean power with minimal voltage difference
- Voltage Monitoring ICs: Continuously track battery voltage for precise state-of-charge measurement
Safety Considerations and Industry Standards
Critical safety protocols for voltage management:
- Always include over-voltage protection (OVP) circuits for Li-ion batteries
- Follow IEC 62133 standards for battery system safety
- Implement voltage balancing for series-connected battery packs
- Use properly rated components for expected voltage spikes (e.g., 20V capacitors for 12V systems)
Professional Tip: When designing battery systems, always build in 20-30% voltage headroom to account for unexpected load spikes and temperature variations. This prevents premature voltage cutoff and extends component lifespan.
Proper voltage matching and system integration not only ensures optimal performance but also significantly enhances safety and reliability – critical factors in both consumer electronics and industrial applications.
Long-Term Battery Voltage Management: Maintenance, Safety, and Emerging Technologies
Effective voltage management extends beyond initial setup – it requires ongoing maintenance, safety protocols, and awareness of evolving battery technologies.
Comprehensive Voltage Maintenance Strategies
Proper long-term voltage maintenance involves these critical practices:
| Battery Type | Optimal Storage Voltage | Maintenance Cycle | Reconditioning Method |
|---|---|---|---|
| Lead-Acid | 12.6-12.8V | Monthly voltage check | Equalization charging at 14.4V |
| Li-ion | 3.7-3.8V (40-60% charge) | Quarterly capacity test | Full discharge/charge cycle |
| NiMH | 1.25-1.3V per cell | Bi-monthly refresh | Complete discharge to 1.0V |
Advanced Safety Considerations
Voltage-related safety risks require these mitigation strategies:
- Thermal Runaway Prevention: Implement voltage-triggered cooling systems for Li-ion packs exceeding 4.25V/cell
- Deep Discharge Protection: Use voltage cutoff circuits to prevent lead-acid batteries from dropping below 10.5V
- Voltage Balancing: Install active balancing systems for series-connected cells with >50mV variance
Cost-Benefit Analysis of Voltage Management
Investing in proper voltage monitoring yields significant returns:
- Battery Lifespan: Proper voltage maintenance can extend cycle life by 300-400% (2→8 years for Li-ion)
- Energy Efficiency: Optimal voltage matching improves system efficiency by 15-25%
- Failure Prevention: Voltage monitoring reduces unexpected failures by up to 60%
Emerging Voltage Technologies
Future battery innovations will transform voltage management:
- Solid-State Batteries: Offering more stable voltage output with minimal sag (projected <2% drop under load)
- Self-Balancing Architectures: New designs automatically equalize cell voltages without external circuits
- AI-Powered Prediction: Machine learning algorithms forecasting voltage decay patterns with 95% accuracy
Environmental Note: Proper voltage maintenance reduces battery waste by 30-50%, significantly decreasing heavy metal pollution and resource depletion from premature replacements.
As battery technologies evolve, voltage management practices must adapt. Implementing these comprehensive strategies ensures optimal performance while addressing safety, cost, and environmental concerns throughout the battery’s lifecycle.
Precision Voltage Monitoring and Optimization for Critical Applications
In mission-critical systems where voltage stability is paramount, specialized monitoring and optimization techniques ensure reliable operation.
Advanced Voltage Monitoring Methodologies
For precision applications, these monitoring techniques provide superior voltage tracking:
- High-Sample-Rate Logging: Using 16-bit ADCs sampling at 1kHz+ to capture microsecond voltage transients
- Multi-Point Sensing: Simultaneous measurement at battery terminals, load inputs, and distribution nodes
- Temperature-Compensated Readings: Applying NTC thermistor corrections to voltage measurements
Example: In pacemaker batteries, voltage must be monitored within ±2mV accuracy to predict remaining capacity and schedule replacements proactively.
Voltage Optimization for Specific Applications
| Application | Voltage Stability Requirement | Recommended Solution |
|---|---|---|
| Data Center UPS | ±0.5% voltage fluctuation | Active voltage regulation with supercapacitor buffers |
| Electric Vehicles | <50mV cell-to-cell variance | Distributed battery management with active balancing |
| Satellite Systems | 0.1% voltage accuracy over 15 years | Radiation-hardened voltage reference ICs |
System Integration Challenges and Solutions
When integrating battery systems with sensitive electronics:
- Ground Loop Mitigation: Use isolation amplifiers to prevent measurement errors from ground potential differences
- Transient Protection: Implement TVS diodes and ferrite beads to filter voltage spikes
- Voltage Sequencing: For multi-rail systems, ensure proper power-up/down sequencing to prevent latch-up
Advanced Troubleshooting Techniques
Diagnosing complex voltage issues requires:
- Spectrum Analysis: Using FFT to identify periodic voltage disturbances
- Load Step Testing: Measuring voltage recovery time after sudden load changes
- Impedance Spectroscopy: Characterizing battery health through AC voltage response
Professional Insight: In industrial motor controllers, voltage harmonics above 1kHz can cause bearing currents – requiring specialized filters even when nominal voltage appears correct.
These advanced techniques enable engineers to maintain voltage stability in even the most demanding environments, preventing costly downtime and ensuring operational safety.
System-Wide Voltage Optimization: Holistic Strategies for Peak Performance
True voltage optimization requires a systems approach that considers all components from energy storage to end-use.
Comprehensive System Voltage Analysis
Effective system-wide optimization begins with these diagnostic steps:
| Analysis Phase | Key Metrics | Measurement Tools | Acceptance Criteria |
|---|---|---|---|
| Baseline Assessment | Open-circuit voltage, ripple, transient response | Precision DMM, oscilloscope | Within 2% of nominal specifications |
| Load Testing | Voltage sag, recovery time, regulation | Programmable load bank | <5% drop at max load |
| Longitudinal Monitoring | Voltage decay rate, cycle-to-cycle variation | Data logging systems | <0.1% variation per 100 cycles |
Advanced Optimization Techniques
Implement these professional-grade strategies for peak voltage performance:
- Dynamic Voltage Scaling: Adjusts operating voltage in real-time based on processing demands (saves 15-40% energy in computing systems)
- Predictive Charge Balancing: Uses machine learning to anticipate and prevent cell voltage imbalances before they occur
- Active Impedance Matching: Continuously optimizes power delivery networks to minimize voltage drops
Comprehensive Risk Management Framework
Mitigate voltage-related risks through this four-tier approach:
- Prevention: Design margins exceeding worst-case scenarios by 20%
- Detection: Real-time voltage monitoring with 1ms response time
- Containment: Isolated power domains to limit fault propagation
- Recovery: Automated voltage restoration protocols
Quality Assurance Protocols
Implement these validation procedures for voltage systems:
- Burn-In Testing: 72-hour continuous operation at ±10% voltage extremes
- Environmental Stress Testing: -40°C to +85°C temperature cycling
- Accelerated Aging: 1000+ charge/discharge cycles with voltage performance tracking
Professional Insight: In grid-scale battery systems, implementing these comprehensive strategies has demonstrated 30% longer lifespan and 22% higher energy throughput while maintaining voltage stability within 0.5% of nominal specifications.
Conclusion
Understanding nominal voltage is fundamental to optimizing battery performance and ensuring device compatibility. Throughout this article, we’ve explored how nominal voltage serves as a reference point, differs from actual voltage, and impacts real-world applications.
From measurement techniques to advanced system integration, proper voltage management extends battery life and prevents operational failures. The strategies covered apply to everything from household electronics to industrial power systems.
Remember that voltage characteristics change with chemistry, temperature, and age. Regular monitoring and maintenance are essential for maintaining peak performance over time.
Put this knowledge into action: Test your batteries regularly, match voltages carefully, and implement the optimization techniques discussed. Your devices will reward you with longer life and more reliable operation.
Frequently Asked Questions About Battery Nominal Voltage
What exactly does nominal voltage mean for batteries?
Nominal voltage represents the average voltage a battery delivers during normal operation. For example, lithium-ion batteries have a 3.7V nominal voltage, though actual voltage ranges from 4.2V (fully charged) to 3.0V (discharged). This standardized value helps compare different battery types.
It’s crucial to understand that nominal voltage isn’t constant – it’s simply a reference point. Real voltage fluctuates based on charge level, temperature, and load. Manufacturers use this value for consistent labeling across similar battery chemistries.
How does nominal voltage differ from actual voltage?
Nominal voltage is a theoretical average, while actual voltage changes moment-to-moment during use. A 12V car battery might show 12.6V when fully charged but drop to 11V when starting the engine. This voltage sag is normal under load.
The difference becomes important when powering sensitive electronics. Devices designed for 5V nominal might malfunction if actual voltage drops below 4.75V. Always check both nominal and operating voltage ranges.
Can I use a battery with higher nominal voltage than recommended?
Generally no – exceeding recommended voltage can damage electronics. A device designed for 3V might fail with a 3.7V lithium battery. However, some equipment has voltage regulators tolerating slight variations (typically ±5%).
Check your device specifications carefully. In some cases, voltage converters can safely bridge small gaps. But never connect a 12V battery to a 6V system without proper regulation.
Why do different battery chemistries have different nominal voltages?
Nominal voltage depends on electrochemical reactions in each chemistry. Alkaline batteries (1.5V) use zinc-manganese dioxide reactions, while lithium-ion (3.7V) relies on lithium cobalt oxide. These materials have characteristic voltage potentials.
Lead-acid’s 2V per cell comes from lead dioxide reactions. Battery engineers combine cells in series to achieve practical voltages (six cells make 12V). Each chemistry’s voltage profile affects its applications.
How does temperature affect battery voltage?
Cold temperatures temporarily reduce voltage output – a 3.7V Li-ion might drop to 3.3V at freezing. Heat increases voltage slightly but accelerates permanent capacity loss. These effects are most noticeable at temperature extremes.
For accurate readings, measure batteries at room temperature (20-25°C). In cold environments, use insulated battery compartments or self-heating battery systems for stable voltage.
How can I measure my battery’s actual voltage accurately?
Use a digital multimeter set to DC voltage mode. Connect red probe to positive terminal, black to negative. For most batteries, use the 20V range. Measure both at rest and under typical load for complete analysis.
For lithium batteries, measure voltage after resting 30 minutes post-charge. Record measurements at 25°C for consistent comparisons. Track voltage trends over time to monitor battery health.
What voltage indicates a dead battery?
Thresholds vary by chemistry: lead-acid below 10.5V (12V battery), Li-ion under 3.0V, alkaline below 0.9V (AA/AAA). However, many devices cutoff before these levels to prevent damage.
Deep discharges harm rechargeable batteries. For lithium-ion, avoid dropping below 3.2V during use. Implement voltage cutoff circuits in DIY projects to protect batteries from over-discharge.
Why does my battery show nominal voltage but won’t power devices?
This indicates high internal resistance – the battery maintains voltage at rest but can’t deliver current. Common in old or damaged batteries. Test by measuring voltage drop when connecting a known load (like a resistor).
Another cause could be corroded contacts preventing current flow. Clean terminals with isopropyl alcohol. For battery packs, one weak cell can cause this symptom – test individual cell voltages.
