The maximum charging voltage for a 12-volt lead acid battery is typically between 14.2 to 14.7 volts, depending on the battery type and temperature. That range ensures full charge without overcharging and prolongs battery life.
If you’ve ever wondered why your car or solar battery doesn’t seem to hold a charge or wears out faster than expected, it may be because of improper charging voltage. Lead acid batteries are sensitive—too little voltage, and they won’t charge; too much, and you’ll damage the battery permanently.
Understanding the correct voltage for charging isn’t just for mechanics—anyone using backup power systems, RVs, boats, or off-grid solar setups needs this knowledge. In fact, one of the fastest ways to shorten your battery’s lifespan is to routinely overcharge it. A few volts may not sound like a big deal, but when it comes to battery chemistry, every decimal matters.
Best Chargers for Charging a 12V Lead Acid Battery
Choosing the right charger is just as important as knowing the correct voltage. A poorly matched charger can either undercharge or overcharge your battery, leading to sulfation or overheating. Below are three of the best chargers you can rely on for safely charging your 12V lead acid battery:

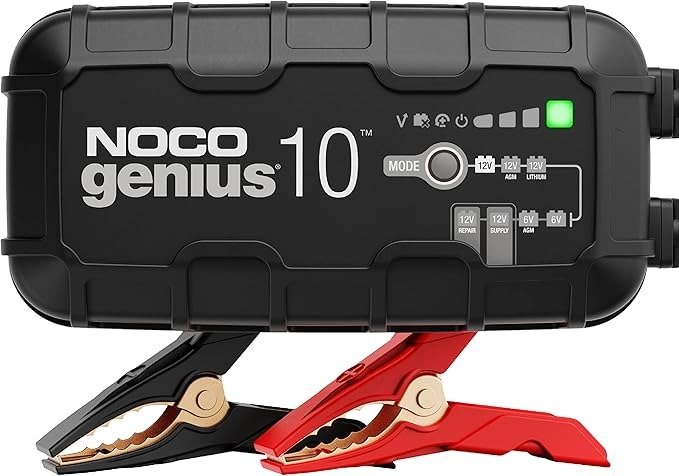

NOCO GENIUS10 Smart Battery Charger
Why we picked it: It’s compact, powerful, and fully automatic with precision charging for all 12V lead acid batteries, including flooded, AGM, and gel cell types.

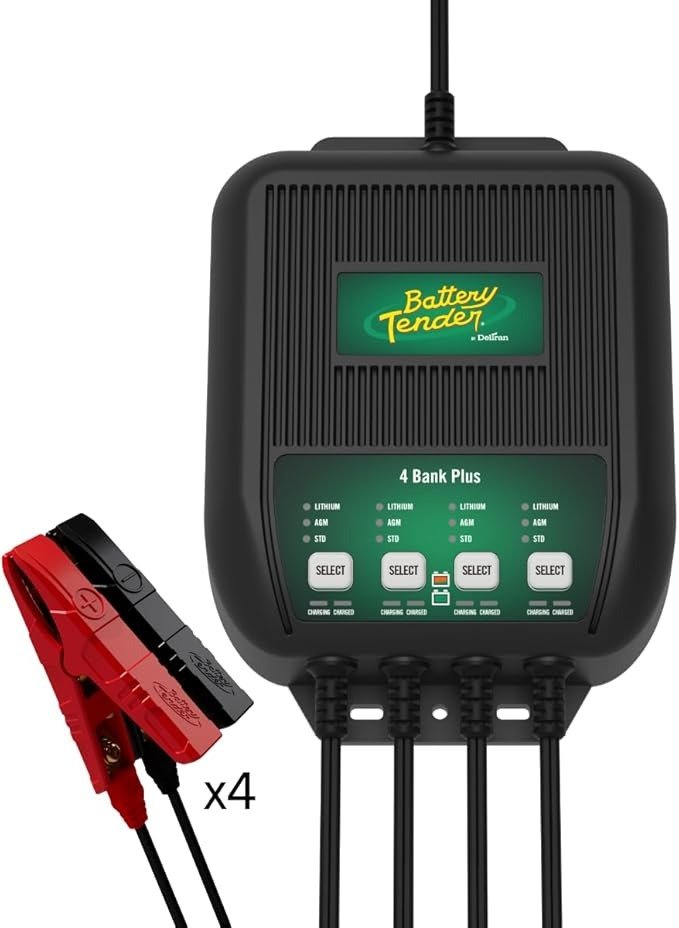

Battery Tender 4-Bank 12V Charger and Maintainer
Why we picked it: Ideal for those with multiple batteries—this charger lets you charge and maintain up to four batteries simultaneously without overcharging.
Schumacher SC1281 Fully Automatic Battery Charger
Why we picked it: A reliable option with advanced diagnostics, this charger works well for larger vehicles and includes both trickle and rapid charge modes.
Why Is Charging Voltage So Important for a 12V Lead Acid Battery?
Charging voltage is the most critical factor in ensuring the health, performance, and lifespan of a 12V lead acid battery. A slight deviation—too high or too low—can significantly impact your battery’s ability to store energy and remain safe in operation.
Undercharging: A Slow Death by Sulfation
When the charging voltage is too low (below ~13.8V), the battery never reaches full charge. This allows lead sulfate crystals to accumulate on the battery plates—a condition known as sulfation.
Over time, this:
- Reduces the battery’s capacity
- Increases internal resistance
- Leads to premature failure
Overcharging: A Recipe for Heat and Gas
On the flip side, exceeding ~14.7V, especially on a fully charged battery, can:
- Cause electrolyte loss through water evaporation
- Generate excessive heat
- Lead to battery swelling or venting hydrogen gas—a dangerous, flammable by-product
Voltage Affects Chemistry
Each stage of a lead acid battery’s charge cycle—bulk, absorption, and float—requires specific voltage ranges. Failing to meet these can:
- Interrupt full charging
- Shorten the service life
- Impair performance in high-drain applications
Bottom Line: Proper voltage maintains the right electrochemical balance in your battery. Modern smart chargers help automate this, adjusting voltage as the battery charges. But if you’re manually charging or using a solar setup, knowing your target voltage (typically 14.2–14.7V during bulk/absorption and ~13.2V in float mode) is crucial.
What Factors Influence the Maximum Charging Voltage?
Several key factors influence the maximum charging voltage for a 12V lead acid battery—including battery type, temperature, and charging stage. Understanding these variables helps you apply the correct voltage and avoid damaging your battery.
Battery Type
Not all lead acid batteries are created equal. Different types have different voltage tolerances:
- Flooded (wet cell): Typically accept up to 14.4–14.7V during bulk charging.
- AGM (Absorbent Glass Mat): Require tighter control, usually max out at 14.4V.
- Gel: Very sensitive—often capped at 14.1V to prevent bubbling and damage.
Always check the manufacturer’s specs for voltage recommendations.
Temperature
Battery temperature plays a huge role in voltage requirements:
- Colder temps: Increase internal resistance, so higher voltage (up to 14.9V) may be needed.
- Hotter temps: Lower resistance, so lower voltage (~13.8V) is safer to avoid overheating.
Many smart chargers use temperature compensation to automatically adjust voltage.
Charging Stage
A typical lead acid charging process includes:
- Bulk: High current until ~80% full – Voltage target: ~14.2–14.7V
- Absorption: Slower current – Voltage held steady
- Float: Maintains full charge – Voltage drops to ~13.2–13.5V
Each stage demands a specific voltage range to charge safely and efficiently.
Final Thought
Setting a fixed voltage is not enough. The maximum safe voltage is a moving target based on real-time conditions. That’s why smart chargers or charge controllers with multi-stage profiles and temp sensors are a wise investment.
What Happens If You Exceed the Maximum Charging Voltage?
Exceeding the maximum charging voltage on a 12V lead acid battery can cause serious, often irreversible damage. It may seem like a faster way to charge, but it puts both the battery and user at risk.
Overheating
Too much voltage leads to excessive current, which causes the battery’s internal temperature to rise.
This can:
- Melt internal components
- Warp battery plates
- Create thermal runaway (especially in sealed AGM or gel types)
Gassing and Water Loss
When voltage exceeds 14.7V, especially in flooded batteries, it leads to electrolysis—breaking water in the electrolyte into hydrogen and oxygen gas.
This causes:
- Water evaporation, drying out cells
- Pressure build-up, risking explosions (especially in sealed batteries)
- Ventilation loss and possible acid leaks
Battery Swelling or Rupture
AGM and gel batteries are sealed to prevent leaks. Overcharging causes gas build-up inside these sealed units, which can lead to:
- Bulging or battery casing deformation
- Cracked cases or leaks
- Complete failure of internal chemistry
Reduced Battery Life
Excess voltage causes irreversible damage to the lead plates and separators, drastically shortening service life. What could have lasted 3–5 years might now fail in a matter of months.
Safety Tip
Always match your charger’s output to the battery’s voltage requirements. Use chargers with automatic shut-off or float modes to prevent dangerous overcharging conditions.
How Can You Safely Monitor and Control Charging Voltage?
Safely monitoring and controlling the charging voltage of a 12V lead acid battery involves using the right tools, techniques, and habits. This helps you avoid damage and ensures your battery performs at its best.
Use a Digital Multimeter
A multimeter lets you manually monitor the battery voltage during charging.
To check:
- Set the multimeter to DC voltage
- Place the red probe on the positive terminal, black on negative
- Read the live voltage output in real time
🔹 Ideal voltage:
- Bulk charge: ~14.2–14.7V
- Float: ~13.2–13.5V
Invest in a Smart Charger
Smart chargers are built with multi-stage charging profiles that adapt the voltage based on:
- Battery charge level
- Temperature
- Type of battery
They also shut off automatically when the battery is full, reducing the risk of overcharging.
Popular features include:
- Temperature sensors
- Float/maintenance mode
- Reverse polarity protection
Install a Battery Monitor or Charge Controller (for Solar Setups)
For off-grid or solar systems, a battery monitor or MPPT/PWM charge controller:
- Tracks real-time voltage
- Offers high/low voltage disconnects
- Can alert you to voltage anomalies
Many models sync with mobile apps for live alerts and historical data logging.
Know Your Battery Specs
Always refer to the manufacturer’s manual for exact voltage recommendations. Don’t guess—different brands and types require different thresholds.
What Is the Recommended Charging Voltage Range for Different Lead Acid Batteries?
The recommended charging voltage range for a 12V lead acid battery depends on the battery type—flooded, AGM, or gel. Each chemistry reacts differently to voltage, and using the wrong range can shorten lifespan or cause damage.
Flooded Lead Acid Batteries (FLA)
These are traditional, refillable batteries often used in vehicles and backup systems.
- Bulk/Absorption charge: 14.4V to 14.7V
- Float charge: 13.2V to 13.5V
- Equalization (optional): Up to 15.5V (periodically, under supervision)
These batteries can tolerate slightly higher voltages, but water loss must be monitored and topped off with distilled water.
Absorbent Glass Mat (AGM) Batteries
Sealed and maintenance-free, AGMs are popular in solar, RVs, and modern vehicles.
- Bulk/Absorption charge: 14.2V to 14.4V
- Float charge: 13.2V to 13.8V
Overcharging can’t be reversed. AGM batteries are less forgiving than flooded types.
Gel Cell Batteries
Gel batteries use silica to thicken the electrolyte, making them sensitive to voltage.
- Bulk/Absorption charge: 13.8V to 14.1V
- Float charge: 13.1V to 13.3V
Exceeding the upper limit can cause internal bubbles and cracks, permanently damaging the gel structure.
Temperature Compensation
For every 1°C above 25°C (77°F), reduce charging voltage by 0.03V. Likewise, increase by 0.03V per degree below.
Conclusion
The maximum charging voltage for a 12V lead acid battery typically falls between 14.2V and 14.7V—but the exact range depends on battery type, temperature, and charging method. Getting this right is crucial for battery longevity and performance.
Whether you’re powering a vehicle, RV, or solar system, using the correct voltage prevents issues like sulfation, overheating, and premature failure. The key is to understand your battery type—flooded, AGM, or gel—and match it with a charger that supports multi-stage charging and temperature compensation.
A small investment in a smart charger or battery monitor goes a long way in protecting your system. Don’t rely on guesswork—be informed, be precise, and you’ll maximize the performance of your lead acid battery every time.
Frequently Asked Questions About the Maximum Charging Voltage for a 12V Lead Acid Battery
Can I charge a 12V lead acid battery with 15 volts?
Technically yes, but it’s not recommended for continuous charging. Flooded batteries may tolerate brief periods at 15V (such as during equalization), but for AGM or gel batteries, 15V can cause gassing, overheating, or irreversible damage. Always consult your battery’s datasheet.
Does temperature affect the charging voltage?
Absolutely. Charging voltage must be adjusted based on temperature. Higher temperatures require lower voltages, while colder conditions demand slightly higher voltages. Many modern chargers include temperature compensation for this reason.
What is float charging and how does it relate to voltage?
Float charging maintains a fully charged battery without overcharging it. The voltage is reduced to about 13.2–13.5V, just enough to counteract self-discharge. This is crucial for standby applications like UPS systems or solar backups.
Can I use a car alternator to charge a lead acid battery safely?
Yes, but with limits. Most car alternators charge between 13.8V and 14.4V, which is safe for most 12V lead acid batteries. However, prolonged idling or high electrical loads may affect voltage consistency and lead to undercharging over time.
What happens if I undercharge my lead acid battery?
Undercharging leads to sulfation, where lead sulfate builds up on the plates, reducing capacity and lifespan. Even though it may still function, performance drops and recovery becomes harder with time.
