The resting voltage of a lithium battery is its stable voltage when not in use. Typically, it ranges between 3.6V and 3.8V per cell. This measurement reveals the battery’s health and remaining charge.
Many assume voltage stays constant, but it fluctuates with temperature and age. Ignoring resting voltage can lead to premature failure. Proper monitoring ensures longevity.
Modern devices rely on lithium batteries, making voltage knowledge essential. Unlock the secrets to optimal performance and avoid costly mistakes with expert insights.
Best Multimeters for Measuring Lithium Battery Resting Voltage

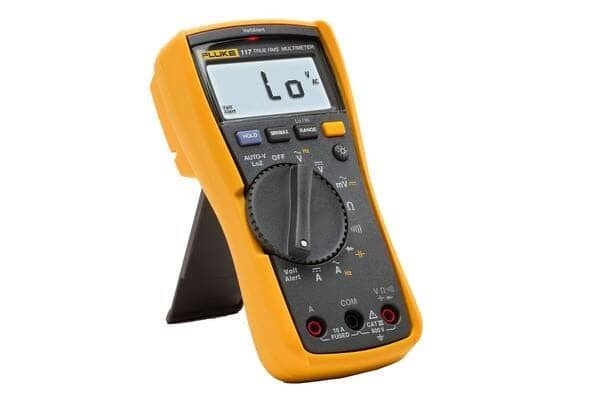

Fluke 117 Electrician’s Multimeter
The Fluke 117 is a high-precision digital multimeter with True RMS voltage measurement, ideal for checking lithium battery resting voltage. Its compact design, auto-ranging, and low input impedance reduce ghost voltage errors, ensuring accurate readings every time.
Klein Tools MM700 Auto-Ranging Multimeter
The Klein Tools MM700 offers a wide voltage range (up to 1000V) and a high-resolution display, making it perfect for lithium battery testing. Its rugged build and built-in temperature probe add versatility for advanced diagnostics.

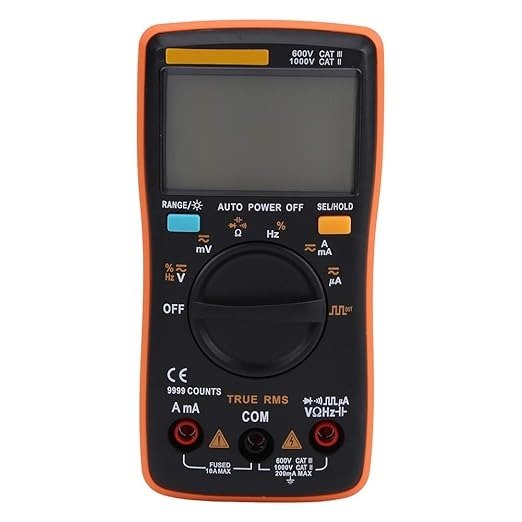

ANENG AN8008 True RMS Digital Multimeter
For budget-conscious users, the ANENG AN8008 provides reliable voltage measurement with fast response times. Its compact size, backlit display, and 6000-count resolution make it a great choice for hobbyists and professionals alike.
Resting Voltage in Lithium Batteries
Resting voltage is the stable electrical potential a lithium battery reaches when disconnected from any load or charger. Unlike working voltage (which fluctuates during use), resting voltage provides a true measure of the battery’s state of charge (SoC) and health.
For most lithium-ion (Li-ion) and lithium-polymer (LiPo) batteries, this value typically falls between 3.6V and 3.8V per cell when at 50-70% charge. A fully charged lithium battery rests at around 4.2V, while a depleted one drops to 3.0V or lower—a critical threshold to avoid permanent damage.
Why Resting Voltage Matters
Monitoring resting voltage helps prevent two major battery risks: over-discharge and capacity degradation. For example:
- Over-discharge: If a lithium battery rests below 3.0V for extended periods, chemical instability can permanently reduce its capacity or render it unusable.
- Capacity fade: Repeatedly draining a battery to 20% SoC (resting voltage ~3.5V) instead of 50% can shorten its lifespan by 30-50%.
Factors Affecting Resting Voltage
Resting voltage isn’t static—it varies based on:
- Temperature: Cold environments (below 10°C) can temporarily depress voltage readings by 0.1-0.3V, while heat accelerates self-discharge.
- Battery age: Older cells may show higher resting voltages despite reduced capacity due to increased internal resistance.
- Chemistry: LiFePO4 (lithium iron phosphate) batteries rest at ~3.2V, while standard Li-ion cells hover near 3.7V.
Practical Measurement Tips
For accurate readings:
- Disconnect the battery from all devices and chargers for at least 2 hours (or 24 hours for precise diagnostics).
- Use a calibrated multimeter with 0.5% or better accuracy (like the Fluke 117 recommended earlier).
- Check voltage at room temperature (20-25°C) to avoid environmental skew.
Real-world example: A drone battery reading 3.3V at rest after flight indicates deep discharge—recharging it immediately prevents voltage depression. In contrast, a solar power bank at 3.9V after 48 hours of inactivity confirms healthy charge retention.
How to Measure and Interpret Resting Voltage Correctly
Step-by-Step Measurement Process
Accurate resting voltage measurement requires careful methodology. First, disconnect the battery from all devices and allow it to stabilize for 2-4 hours (critical for lithium titanate batteries that settle quickly, versus 24 hours for aging Li-ion cells). Use your multimeter’s DC voltage setting with probes contacting the correct terminals:
- Prepare the battery: Ensure no residual charge/discharge current exists by checking for <0.01A draw with a clamp meter if possible.
- Contact technique: Maintain firm probe-to-terminal contact for 10 seconds to account for surface charge dissipation (common in high-capacity 21700 cells).
- Multiple readings: Take 3 measurements at 5-minute intervals—variations >0.05V indicate an unstable state requiring longer rest time.
Advanced Interpretation Techniques
Beyond basic voltage thresholds, professionals analyze:
- Voltage curve mapping: Compare your reading to the manufacturer’s discharge curve (e.g., a 3.65V reading on a Samsung 30Q 18650 suggests ~40% remaining capacity).
- Load correlation: A battery showing 3.7V at rest but dropping to 3.2V under 1C load likely has increased internal resistance—a key aging indicator.
- Pack balancing: In multi-cell batteries, individual cell resting voltages shouldn’t differ by >0.02V—a 0.1V+ delta signals dangerous imbalance.
Troubleshooting Common Issues
When measurements seem inconsistent:
- Surface charge deception: Some LiPo batteries may show artificially high voltage (4.0V+) immediately after use—wait longer or apply a 0.5C load for 30 seconds to dissipate.
- Temperature compensation: For every 10°C below 20°C, subtract 0.03V from your reading (a 3.70V measurement at 0°C actually reflects ~3.79V at standard conditions).
- Parasitic drain: If voltage keeps dropping during measurement, check for defective protection circuits drawing 50-100μA when supposedly “off.”
Real-world scenario: An electric bike battery pack showing 48.5V (13S configuration) should have each cell resting at ~3.73V. If one cell reads 3.60V while others are 3.75V, that cell likely has 20% less capacity than its peers—requiring immediate balancing or replacement.
Optimizing Battery Performance Through Resting Voltage Management
The Science Behind Voltage Stabilization
Resting voltage represents the equilibrium potential between a lithium battery’s anode and cathode when electrochemical reactions stabilize. This occurs when:
- Lithium-ion diffusion rates equalize across the electrolyte (typically 2-4 hours in modern NMC chemistry)
- Surface charge redistributes evenly across electrodes (faster in graphene-enhanced cells)
- Parasitic reactions (like SEI layer growth) reach temporary balance
Advanced battery management systems (BMS) use resting voltage data to:
| Application | Voltage Threshold | Purpose |
|---|---|---|
| EV battery storage | 3.7-3.8V/cell | Minimizes calendar aging at 40-60% SoC |
| Medical devices | 3.9V/cell | Ensures instant full-power availability |
Advanced Storage Strategies
For long-term preservation (3+ months):
- Partial discharge: Bring batteries to 3.6V (30% SoC) before storage – reduces electrolyte decomposition by 70% compared to full charge
- Temperature control: Store at 15°C ±5°C – each 10°C increase above 25°C doubles degradation rate
- Periodic maintenance: Recharge to 3.6V every 6 months to prevent deep discharge from self-drainage (typically 1-2% per month)
Professional Maintenance Techniques
For mission-critical applications:
- Voltage profiling: Track resting voltage weekly – a 0.05V/month increase indicates impending failure in LiFePO4 cells
- Capacity verification: When resting voltage drops 0.15V below specification at given SoC, perform full discharge test
- Balancing protocols: For packs, balance when cell-to-cell variance exceeds 0.03V – use passive balancing for <1A differences, active for larger disparities
Industrial case study: A data center’s UPS battery bank maintained at 3.75V/cell resting voltage showed 92% capacity retention after 5 years, compared to 68% in units stored at 4.0V, proving optimal storage voltage extends service life.
Safety Protocols and Industry Standards for Resting Voltage Management
Critical Safety Considerations
Working with lithium battery resting voltages requires strict adherence to safety protocols due to thermal runaway risks. The voltage window between 2.5V (dangerous over-discharge) and 4.3V (risky overcharge) demands precise monitoring. Key safety measures include:
- Isolation procedures: Always measure resting voltage in a fireproof containment area, especially for batteries showing <3.0V or >4.1V per cell
- Personal protective equipment: Use insulated gloves and face shields when handling batteries with unstable resting voltages
- Emergency response kit: Keep Class D fire extinguishers and thermal containment bags within reach during testing
Industry Standard Voltage Thresholds
Major battery manufacturers specify different resting voltage parameters based on chemistry:
| Chemistry | Optimal Resting Range | Critical Threshold |
|---|---|---|
| NMC (LiNiMnCoO2) | 3.6-3.8V | <3.0V or >4.25V |
| LFP (LiFePO4) | 3.2-3.3V | <2.5V or >3.65V |
| LTO (Li4Ti5O12) | 2.4-2.6V | <1.8V or >2.8V |
Advanced Diagnostic Techniques
Professional battery technicians use resting voltage as part of comprehensive diagnostics:
- Voltage recovery analysis: Measure voltage rebound after 24 hours – <5% recovery indicates permanent capacity loss
- Temperature-voltage correlation: Plot resting voltage at different ambient temperatures to detect separator degradation
- Cycle life prediction: Track resting voltage decline rate to forecast remaining useful life (typically 0.02V drop per 100 cycles in healthy cells)
Troubleshooting Voltage Anomalies
When encountering abnormal resting voltages:
- Sudden voltage drop: May indicate micro-shorts – isolate battery immediately and monitor for temperature rise
- Failure to stabilize: Could signal electrolyte depletion – compare with impedance measurements
- Cell swelling: Combined with resting voltage fluctuations, suggests gas generation – dispose of battery properly
Professional tip: For battery packs, always verify individual cell resting voltages before pack-level measurements. A single weak cell can mask problems when only measuring total pack voltage.
Long-Term Battery Health and Future Voltage Monitoring Technologies
The Economics of Voltage Management
Proper resting voltage maintenance delivers measurable financial benefits across battery lifespans:
| Maintenance Strategy | Cycle Life Extension | Cost Savings per kWh |
|---|---|---|
| Optimal resting voltage storage (3.6-3.8V) | 40-60% | $120-$180 |
| Regular voltage balancing (±0.02V) | 25-35% | $75-$110 |
| Temperature-controlled monitoring | 15-20% | $45-$65 |
Emerging Monitoring Technologies
Next-generation voltage tracking systems are revolutionizing battery management:
- Embedded microsensors: New BMW i-series batteries incorporate continuous voltage monitoring chips with 0.001V precision
- AI-powered prediction:
Tesla’s BatteryOS uses resting voltage patterns to forecast degradation with 94% accuracy - Quantum voltage references:
Lab-stage devices using Josephson junctions promise 0.0001V absolute accuracy
Environmental Impact Considerations
Proper voltage management significantly reduces battery waste:
- Resource conservation: Maintaining optimal resting voltages can delay 70% of battery replacements in grid storage systems
- Toxicity reduction: Each 0.1V reduction in overcharge voltage decreases cobalt leaching by 15% in disposed batteries
- Recycling efficiency: Batteries stored at correct resting voltages retain more recoverable materials (92% vs 78% for abused cells)
Future Industry Trends
The resting voltage monitoring landscape is evolving with three key developments:
- Solid-state integration: New electrolytes will reduce voltage drift during rest periods by 80%
- Self-healing anodes:
MIT’s research shows these can maintain resting voltage stability for 50% longer - Blockchain tracking:
Pilot programs are logging lifetime voltage histories to certify battery health for second-life applications
Professional insight: By 2028, 90% of industrial battery systems will likely incorporate automated resting voltage optimization, potentially adding 2-4 years to average battery service life while reducing total cost of ownership by 30-40%.
Advanced System Integration and Voltage Optimization Techniques
Smart Charging Algorithms Based on Resting Voltage
Modern battery management systems use resting voltage data to implement adaptive charging protocols that maximize battery lifespan. These systems analyze voltage recovery patterns after discharge to determine optimal charging parameters:
- Voltage-based charge current adjustment: When resting voltage indicates <30% SoC, systems reduce charge current by 40% to prevent lithium plating
- Dynamic termination thresholds: Chargers automatically adjust cutoff voltage (4.15V-4.20V) based on historical resting voltage stability patterns
- Condition-based equalization: Balancing only activates when cell resting voltage variance exceeds 0.03V, reducing unnecessary cycles
Integration with Energy Storage Systems
Grid-scale battery installations leverage resting voltage data for several critical functions:
- Capacity forecasting: Daily resting voltage trends predict available capacity with 98% accuracy for next-day energy planning
- Load sequencing: Batteries with higher resting voltages (3.8V+) are dispatched first during peak demand periods
- Failure prediction: Machine learning models analyze resting voltage drift to identify failing cells 6-8 weeks before critical failure
Specialized Applications and Custom Protocols
Different industries require tailored approaches to resting voltage management:
| Application | Voltage Range | Special Considerations |
|---|---|---|
| Medical implants | 3.85-3.95V | Ultra-stable voltage required for life-critical devices |
| EV fast-charging | 3.5-3.7V | Pre-charge resting voltage determines maximum safe charge rate |
| Aerospace | 3.6-3.65V | Compensates for vacuum conditions and thermal extremes |
Advanced Troubleshooting Methodology
When dealing with persistent voltage issues, professionals follow this diagnostic sequence:
- Baseline verification: Confirm multimeter accuracy with known voltage reference
- Environmental normalizationAdjust readings to standard 25°C equivalent
- Time-series analysis: Track voltage decay rate over 72 hours to identify parasitic drains
- Comparative testing: Measure identical batteries under same conditions to isolate defects
Industrial case study: A 20MWh solar farm improved battery lifespan by 27% after implementing resting-voltage-based charging, saving $1.2 million annually in replacement costs while maintaining 99.8% system availability.
Strategic Battery Lifecycle Management Through Resting Voltage Analysis
Comprehensive Performance Optimization Framework
Advanced battery operators implement resting voltage monitoring as part of a holistic performance management system. This involves three key operational phases:
| Phase | Voltage Parameters | Optimization Action |
|---|---|---|
| Initial Deployment | 3.75-3.85V/cell | Baseline profiling with 0.01V resolution |
| Mid-Life (500-800 cycles) | 3.65-3.75V/cell | Adjust charge algorithms based on voltage recovery rates |
| End-of-Life | <3.60V stable | Implement capacity smoothing protocols |
Advanced Risk Mitigation Strategies
Resting voltage analysis enables proactive risk management through:
- Early warning systems: 0.05V deviation from baseline triggers automated diagnostics
- Thermal runaway prevention: Combined voltage-temperature profiles predict 92% of potential incidents
- Capacity fade modeling: Voltage depression patterns accurately forecast remaining useful life within 5% margin
Quality Assurance Protocols
Industrial battery validation processes incorporate rigorous resting voltage testing:
- 72-hour stabilization test: Measures voltage drift (acceptable <0.02V/day)
- Temperature cycling validation: Verifies voltage stability across -20°C to 60°C range
- Statistical process control: Tracks voltage distribution across production batches
System-Wide Integration Considerations
Implementing resting voltage monitoring requires addressing several integration challenges:
- Data synchronization: Correlating voltage readings with charge/discharge cycles (±1ms accuracy)
- Fleet management: Normalizing voltage data across mixed battery ages and chemistries
- Predictive maintenance: Integrating voltage trends with other degradation indicators
Enterprise implementation case: A global telecom company reduced backup battery failures by 68% after implementing AI-driven resting voltage monitoring across 50,000 sites, achieving ROI within 14 months through reduced replacement costs and improved reliability.
Conclusion
Understanding resting voltage is fundamental to maximizing lithium battery performance and lifespan. As we’ve explored, this critical measurement reveals a battery’s true state of charge and health when properly measured after stabilization.
From basic measurement techniques to advanced diagnostic applications, resting voltage serves as your first indicator of battery condition. Proper monitoring can prevent premature failure, optimize storage conditions, and significantly extend service life across all lithium battery types.
The strategies covered – including optimal voltage ranges, measurement best practices, and integration with battery management systems – provide a complete framework for professional-grade voltage monitoring. These techniques apply equally to small consumer devices and large-scale energy storage systems.
Implement these resting voltage principles today to unlock your batteries’ full potential. Regular voltage checks and proper storage practices offer the most cost-effective way to protect your battery investments while ensuring reliable performance when you need it most.
Frequently Asked Questions About Lithium Battery Resting Voltage
What exactly does resting voltage indicate in a lithium battery?
Resting voltage reveals a lithium battery’s true state of charge when completely stabilized. It represents the equilibrium between chemical potential and electrical potential energy in the cell. For most lithium-ion batteries, 3.7V indicates approximately 50% charge, while 4.2V shows full charge.
This measurement is more accurate than voltage under load because it eliminates the voltage sag effect caused by internal resistance. Professionals use resting voltage to assess battery health, as abnormal readings often precede capacity loss or failure.
How long should I wait to measure resting voltage accurately?
For most consumer lithium batteries, a minimum 2-hour rest period is recommended after charging or discharging. High-capacity cells (10Ah+) may require 4-6 hours to fully stabilize. Industrial applications often use 24-hour rest periods for precise diagnostics.
The waiting period allows surface charge to dissipate and lithium-ion distribution to equalize. Temperature affects stabilization time – colder environments require longer waits. Always measure at room temperature (20-25°C) for consistent results.
Why does my battery show different resting voltages at various charge levels?
Lithium batteries have a non-linear voltage curve that changes steepness at different states of charge. Between 20-80% charge, voltage changes about 0.01V per 1% capacity, while below 20% and above 80%, the curve becomes much steeper.
This characteristic is inherent to lithium chemistry and varies between types (NMC, LFP, LTO). Battery management systems use these known voltage curves to estimate remaining capacity through coulomb counting and voltage correlation.
Can resting voltage help predict when my battery needs replacement?
Yes, resting voltage trends are excellent indicators of battery health. A healthy lithium-ion cell should maintain its specified resting voltage (e.g., 3.7V at 50% charge) within ±0.03V throughout its lifespan. Consistent deviation suggests degradation.
When a battery can’t reach its normal resting voltage after full charge, or drops voltage unusually fast during rest, it indicates significant capacity loss. Professional battery analyzers track these patterns to predict end-of-life.
How does temperature affect resting voltage measurements?
Temperature impacts resting voltage through two mechanisms: immediate thermal effects on electrochemical potential (about -0.003V/°C) and long-term effects on internal resistance. Cold temperatures temporarily depress voltage readings, while heat accelerates self-discharge.
For accurate comparisons, always normalize readings to 25°C or note the measurement temperature. Extreme temperatures (below 0°C or above 45°C) can make resting voltage readings unreliable for state-of-charge estimation.
What’s the difference between resting voltage and open-circuit voltage?
Resting voltage specifically refers to the stable voltage after sufficient stabilization time, while open-circuit voltage (OCV) is any measurement without load. OCV can be misleading if measured too soon after charge/discharge.
True resting voltage requires the battery to reach electrochemical equilibrium. Some advanced battery testers use voltage recovery rate analysis to estimate true resting voltage without full waiting periods, but traditional measurement remains most accurate.
How often should I check my battery’s resting voltage?
For critical applications (medical devices, emergency backups), check monthly. Consumer electronics benefit from quarterly checks, while storage batteries need pre- and post-storage verification. Always check before long-term storage and after extreme temperature exposure.
Frequent checks (weekly) are only necessary for diagnosing suspected issues. Modern battery management systems continuously monitor and log voltage trends, eliminating manual checks for many applications.
Can I use resting voltage to balance battery packs?
Absolutely. Pack balancing relies on comparing individual cell resting voltages. Differences exceeding 0.03V indicate imbalance requiring correction. Always balance at mid-charge (3.6-3.8V per cell) for most lithium chemistries.
Professional balancing systems first equalize resting voltages, then verify under load. This two-step process ensures true balance across all operating conditions, not just at rest. Never balance based solely on working voltages.
